Ducati MONSTER 695 - Page 95

Testers

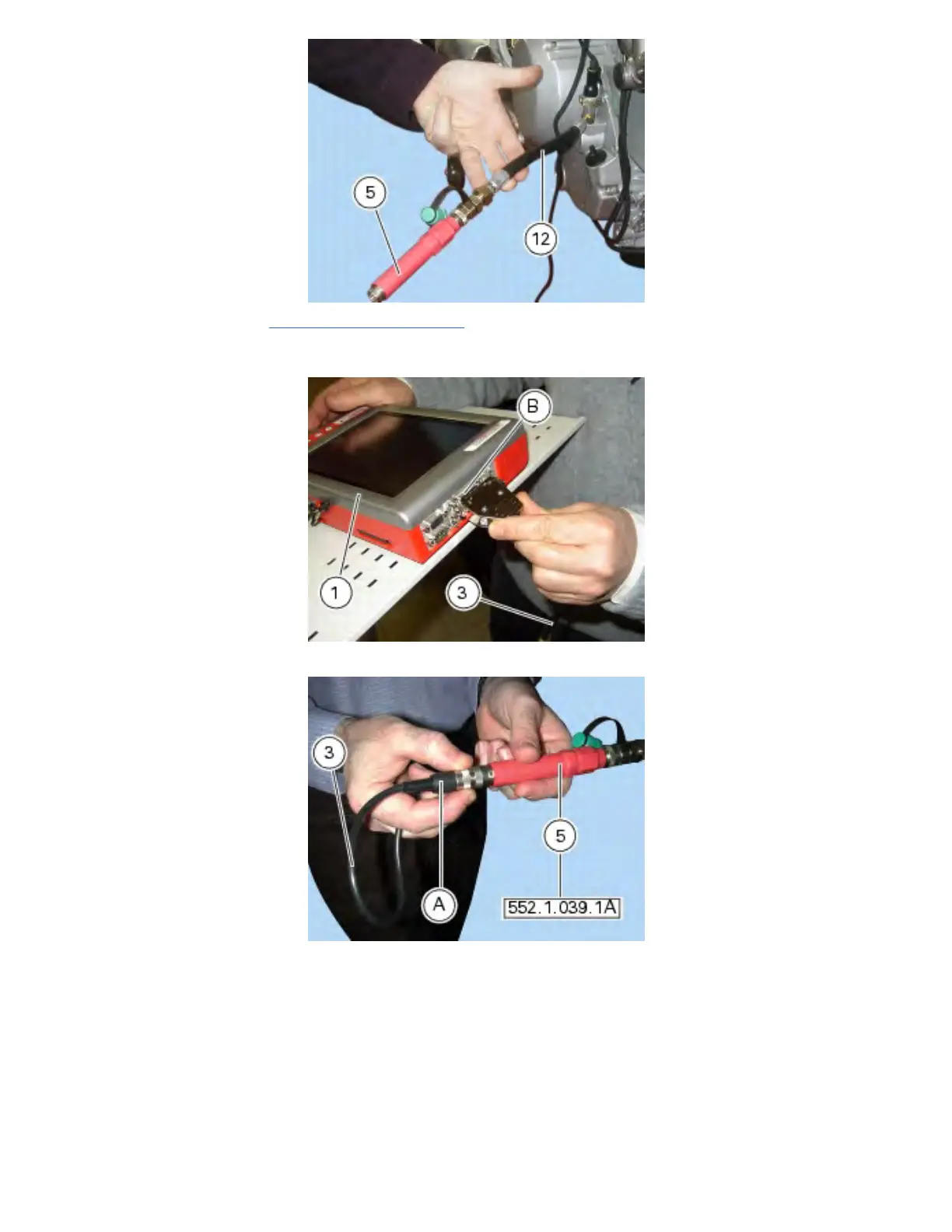

Switch on the DDS (1), refer to "Instrument power supply".
Connect the power and diagnosis cable (Measurement Module) (3) to measurement module connector (B) of the DDS
(1).
Connect the pressure sensor (5) to port (A) or (C) of cable (3).
