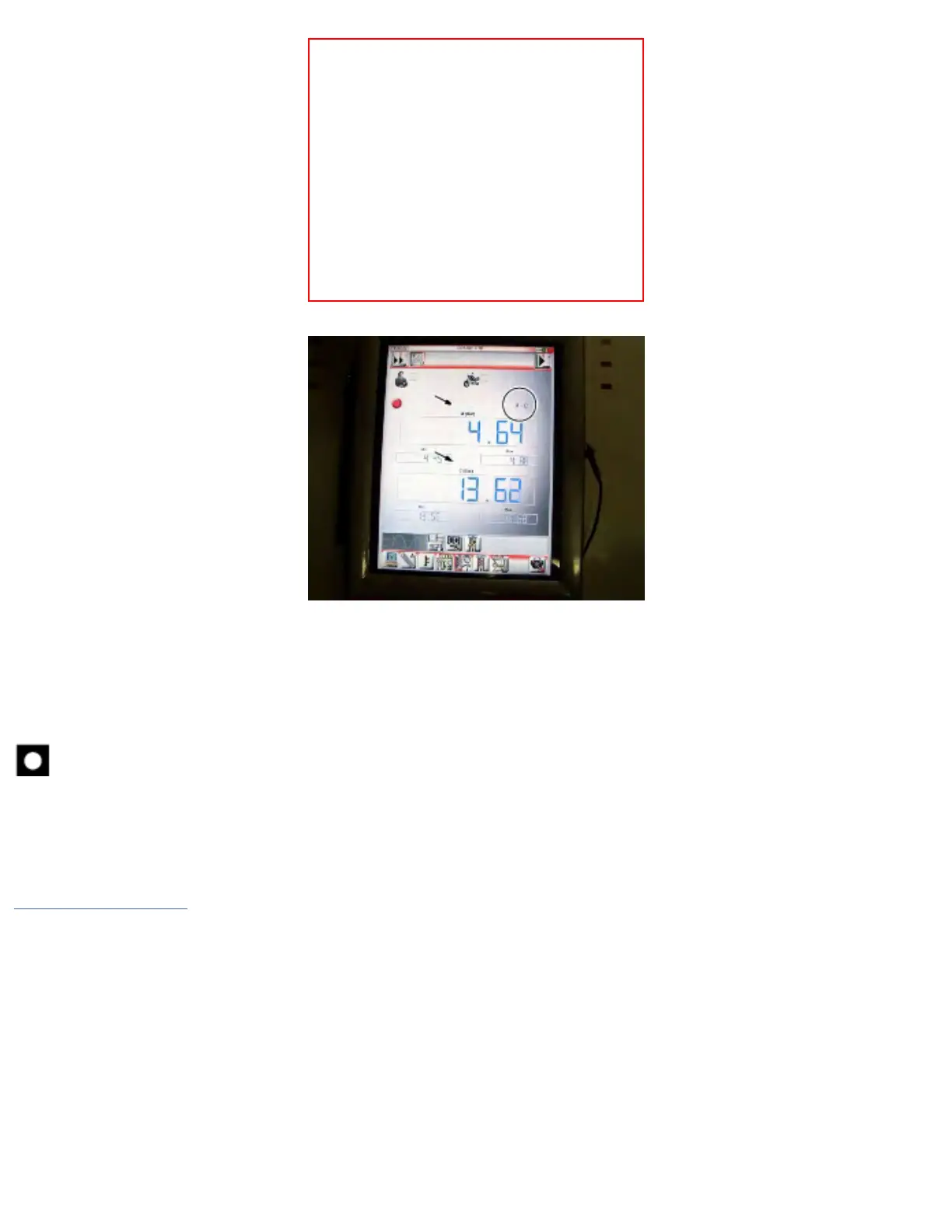

Oil pressure test values:
Warm engine
(Oil temperature at least = 80°C)
1100 - 1300 rpm
over 0.8 bar
3500 - 4000 rpm
over 4 bar
Caution
Maximum pressure must not exceed 6.0 bar.
A pressure which is too high indicates that the pressure-relief valve is jammed. A pressure which is too low indicates
that the pressure-relief valve is jammed in the open position, that the spring is too weak, or that the oil pump is
faulty. Other causes of incorrect pressure readings include: badly worn seals and gaskets; badly worn engine.
Remove the gauges and refit the pressure switch (21) with its seal. Tighten it to the specified torque (Sect. C 3,
Engine torque settings).
Connect the electrical connector (A) to the pressure switch.
