E
15

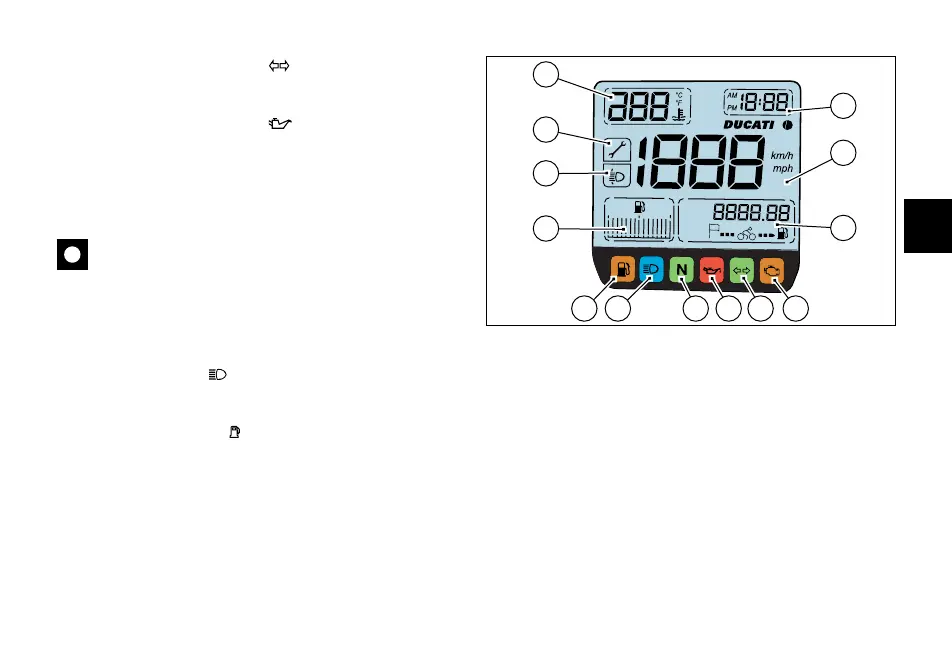

6) Indicators repeater light (green).
Comes on and flashes when a turn indicator is on.
7) Engine oil pressure light (red).
Comes on when engine oil pressure is too low. It briefly
comes on when the ignition is switched to ON and
normally goes out a few seconds after engine starts. It
may shortly come on when the engine is very hot,
however, it should go out as the engine revs up.
Important
If this light (7) stays on, stop the engine or it may
suffer severe damage.
8) Neutral light N (green).
Comes on when in neutral position.
9) High beam light (blue).
Comes on when high beam is on.
10)Fuel warning light (yellow).
Comes on when there are about 6.5 litres of fuel left in the
tank.
11)Fuel display.
This function indicates the quantity of fuel in the fuel tank.
When the last bar stays on (flashing), the low fuel light (10)
comes on.
12)Beam vertical adjustment indicator.
The pilot light comes on to signal that the user has entered
the beam vertical setting mode.
13)Service warning.
The light comes on to signal that the vehicle has covered
the distance corresponding to a Scheduled Maintenance
interval. The light keeps flashing until the vehicle has
travelled 50 km after hitting the service interval. Then it
stays on permanently. The system shall be reset by the
DUCATI Authorised Service Centre that has serviced the
vehicle.
km/h
miles
mph
km/L
mpgal
0
1
5
4
3
2
67810
11
12
13
1
9
fig. 6
