4 Sewing drives
4.1 Drive category, type and use
The following sewing drive is available:
Dürkopp Adler DAC classic incl. operating panel OP 1000

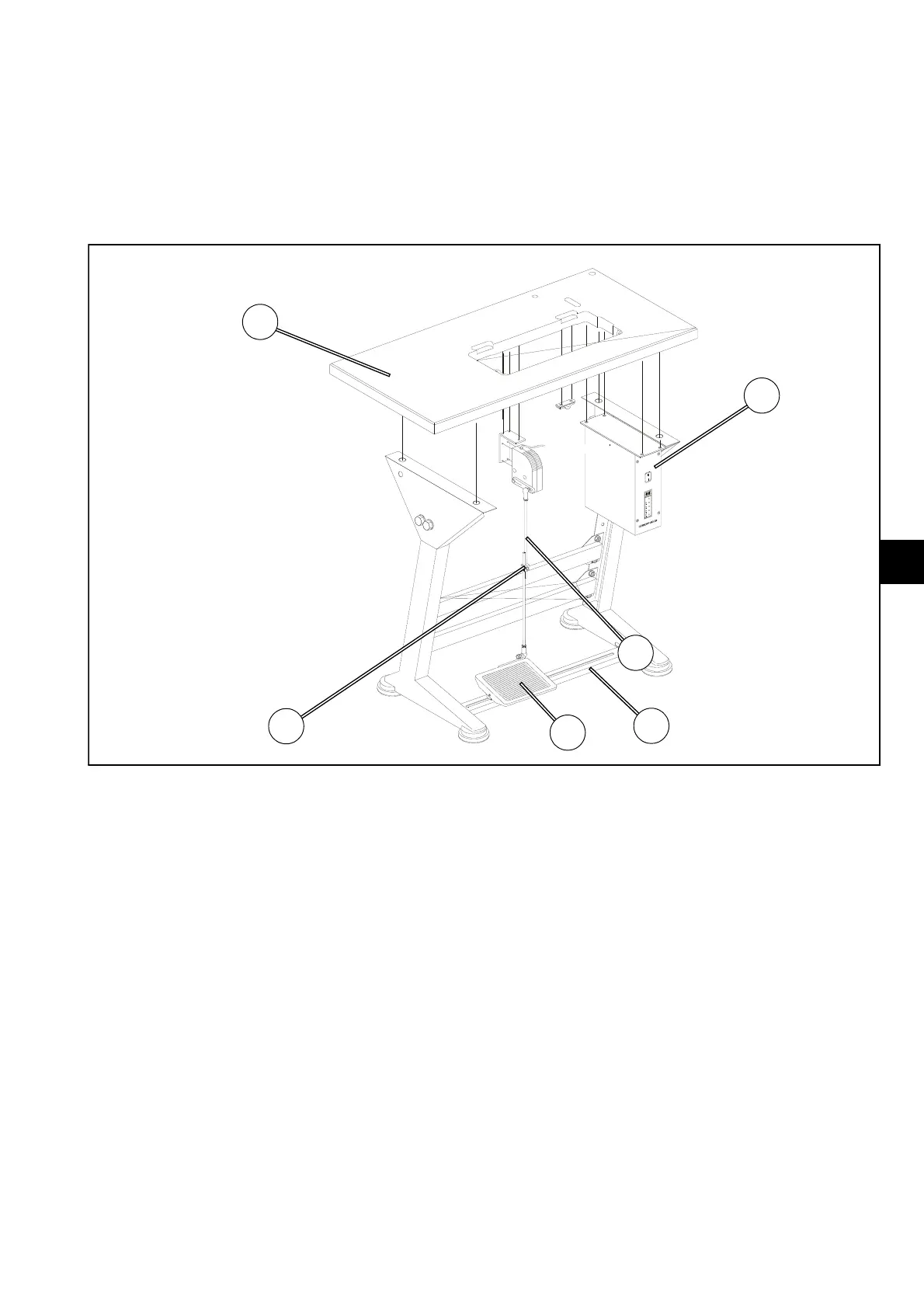

4.2 Fitting the control unit
– Mount the control unit 3 with three screws to the table bottom 2.
– Fix the power cord of the control unit with three cable clips and the
stress-relief clip to the table bottom.
4.3 Fitting the pedal
– Fix the pedal 6 onto the stand spar 5.
– For ergonomic reasons adjust the pedal 6 as follows:
– The pedal center should stand underneath the needle.
– The stand spar 5 is equipped with elongated holes for the
adjustment of the pedal.
– Hook the pedal linkage 4 into the pedal and the set value initiator.
– Slightly loosen screw 7 on the pedal linkage.
– Set the pedal inclination in its height as follows:
– The released pedal 6 should be inclined to about 10°.
– Tighten screw 7 on the pedal linkage.
