7 Gear box lubrication
Rule
Check the oil level with the machine tilted to the back.
The machine head rest on the machine head support and the surface of the
base plate is vertical to the table top.
The filling up check is intended for lifetime.

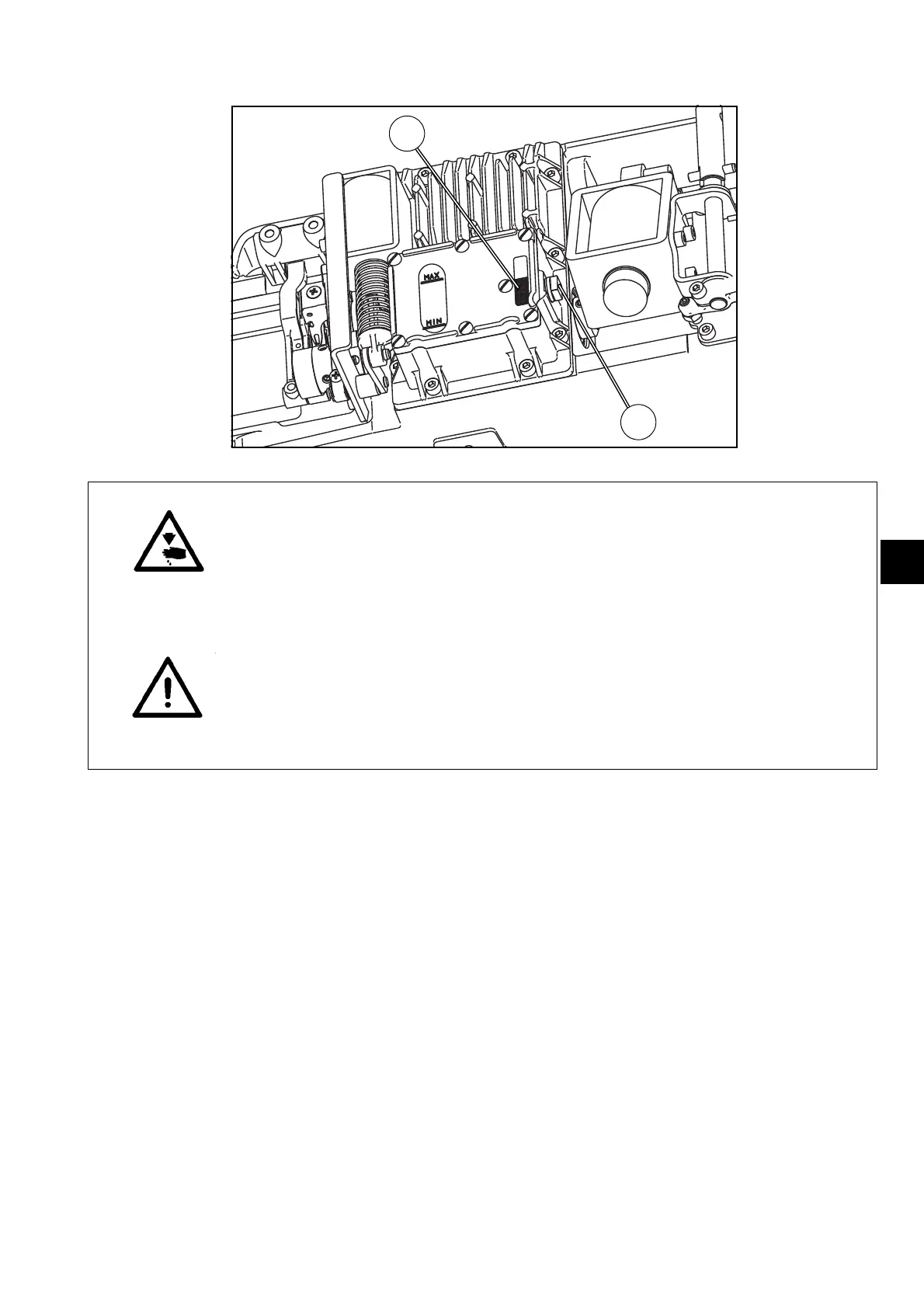

Upon delivery the oil level is in the middle of the monitor window 1.
Filling up oil (gear box
– Tilt the machine backwards.
– Unscrew the plug screw 2 with its seal ring.
– Fill up with DA 32 oil up to the middle of the monitor window 1.
For this purpose use a hose connected to a oil can nozzle.
Oil grade being used
– Special lubricating oil DA 32 / resistant to light and ageing resistant
/ high wear protection
– Viscosity / 40°C: 32 mm²/s - ISO VG32
The oil can be obtained from Dürkopp Adler under the part number
9047 000032 in a 0.9l container.
Caution: danger of injury!
Oil can cause skin eruptions.
Avoid protracted contact with the skin.
In the event of contact, thoroughly wash the affected area.
Caution!
The handling and disposal of mineral oils is subject to legal regulation.
Deliver used oil to an authorised collection point.
Protect your environment.
Take care not to spill oil.
