Duerkopp Adler 281 - Connection to the Control Unit

GB
11

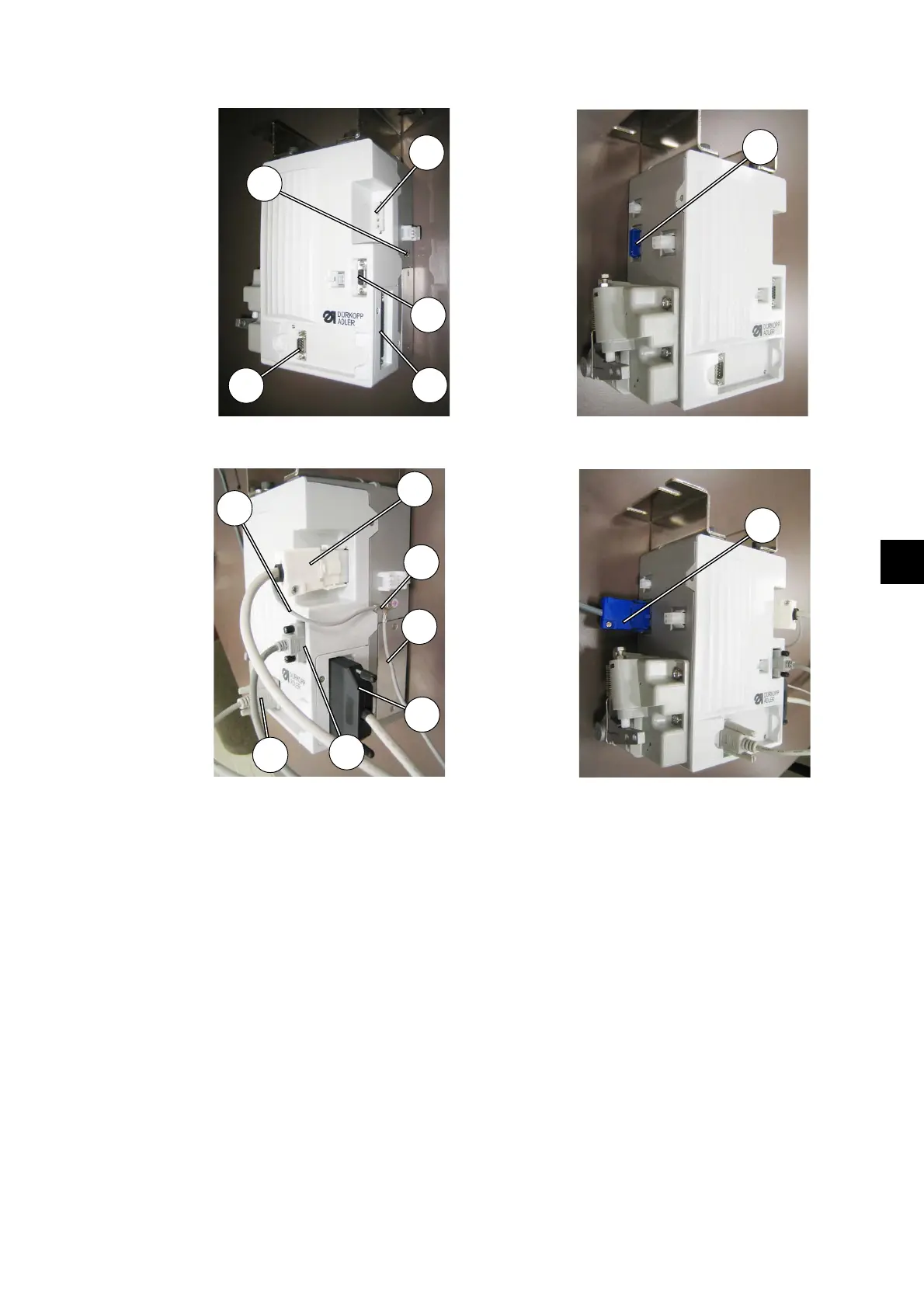

5.7 Connection to the control unit
– Insert plug 11 (connecting cable of the sewing motor) into socket 1.
– Insert plug 12 (encoder cable of the sewing motor) into socket 2.
– Insert plug 13 (input and output cable of the machine head) into
socket 3.
– Insert plug 14 (operating panel) into socket 4.
– Insert plug 15 (mains lead) into socket 5.
– Fix cables 16 and 17 (earthing cables of the sewing motor
conductor and the machine head) under screw 6 to the control unit
