Soft Serve Freezer Model GES-102
184559 23
8.1 Cleaning Accessories
The following accessories are necessary for cleaning, sanitizing, and disassembly/
assembly (Figure 8-1):
1.) HC158009 Brush & HC158012
HANDLE:
4 inch diameter and 27 inch handle
used to clean the shake cylinder.
2.) HC158019 BRUSH:
9/16 inch diameter 40 inch overall
length used to clean drain tube, the
mix feed tube in the ceiling of the
cabinet and the pickup tube.
3.) HC158018 BRUSH:
7/16 inch diameter 12 inch overall
length used to clean transfer hose,
braided hose, and the air relief
opening in the dispense head.
4.) HC158026 BRUSH:
1 inch diameter 12 inches long used
to clean the disassembled shaft seal
and bushing.
5.) HC158037 BRUSH:
1/4 inch diameter 18-1/2 inches
overall length used to clean the air
meter hose, the small hole in the
back of the dispense head and small
parts.
6.) HC169374 TOOL - O-RING
REMOVAL:
Aids in removing o-rings from
plunger, head, air relief plug, and
spindle.
7.) HC158054A LUBRICANT - LUBRI-
FILM PLUS:
Approved lubricant for moving parts
and o-rings.
8.) HC196103 BOTTLE, WASH:
Used to ush the hose cavity, roller
assembly and plunger.
9.) HC115538 KIT - O-RING:
Contains all o-rings and seals
needing replacement on a regular
basis. (not shown)

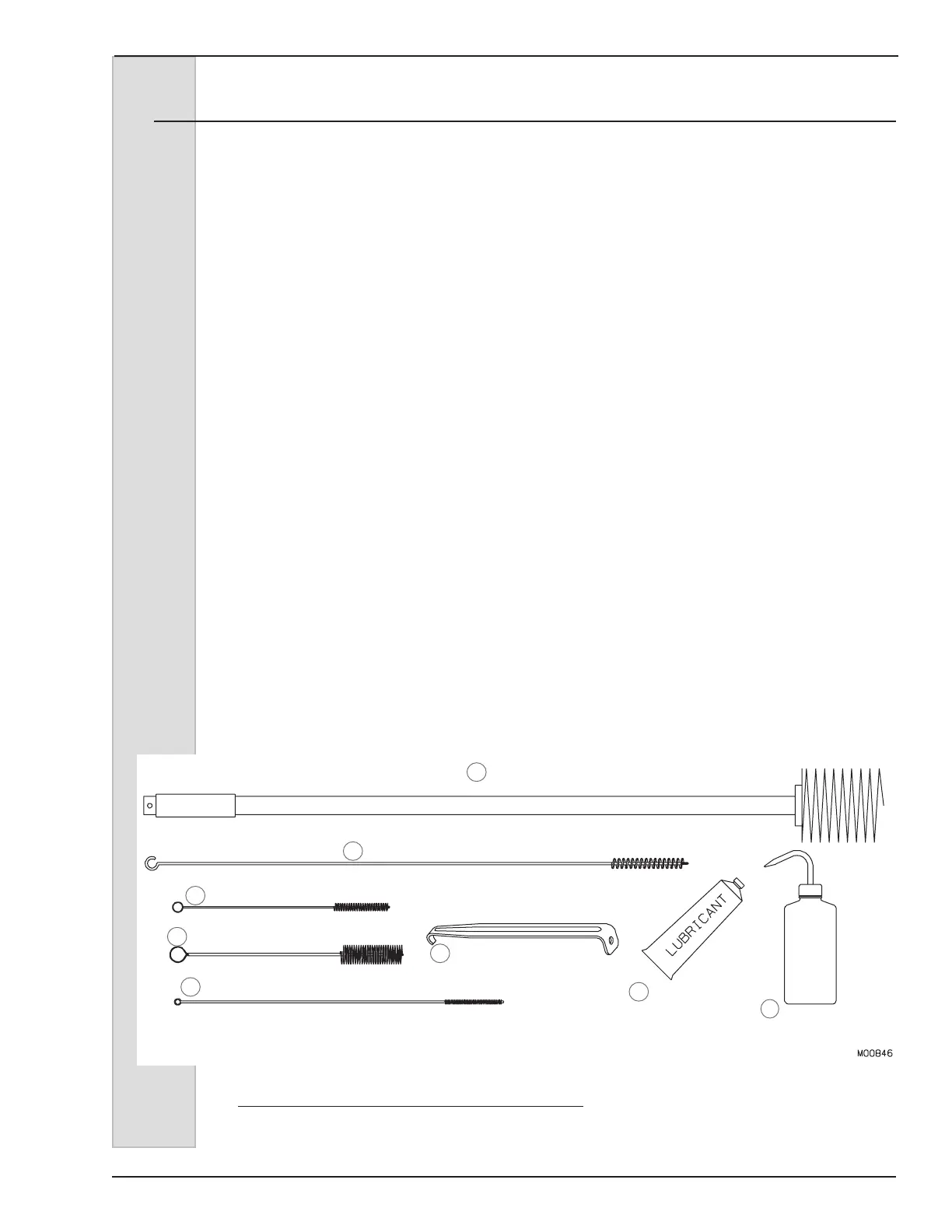

Figure 8-1 Cleaning Accessories
1
3
4
2
7
6
5
8
HC158009 BRUSH - 4” DIA x 31.5”
& HC158012 HANDLE
HC158019 BRUSH -9/16” DIA x 40” OAL
HC158018 BRUSH -7/16” DIA x 12” OAL
HC158026 BRUSH -1” DIA x 12” LG.
HC158037 BRUSH -1/4” DIA x 18-1/2” LG.
HC169374 TOOL -O RING
REMOVAL
HC196103 BOTTLE-
WASH 500ml
HC158054A
LUBRICANT-
LUBRI-FILM
PLUS
(OPTIONAL)
To view videos on the GES freezer visit:
http://www.electrofreeze.com/GES_Videos.aspx
