Duke GES-102 - Figure 11 AC Side;Back View (Lower Cab)

Soft Serve Freezer Model GES-102
184559 13
Use only original or authorized replacement parts with this freezer.
Use of unapproved parts will void warranty.

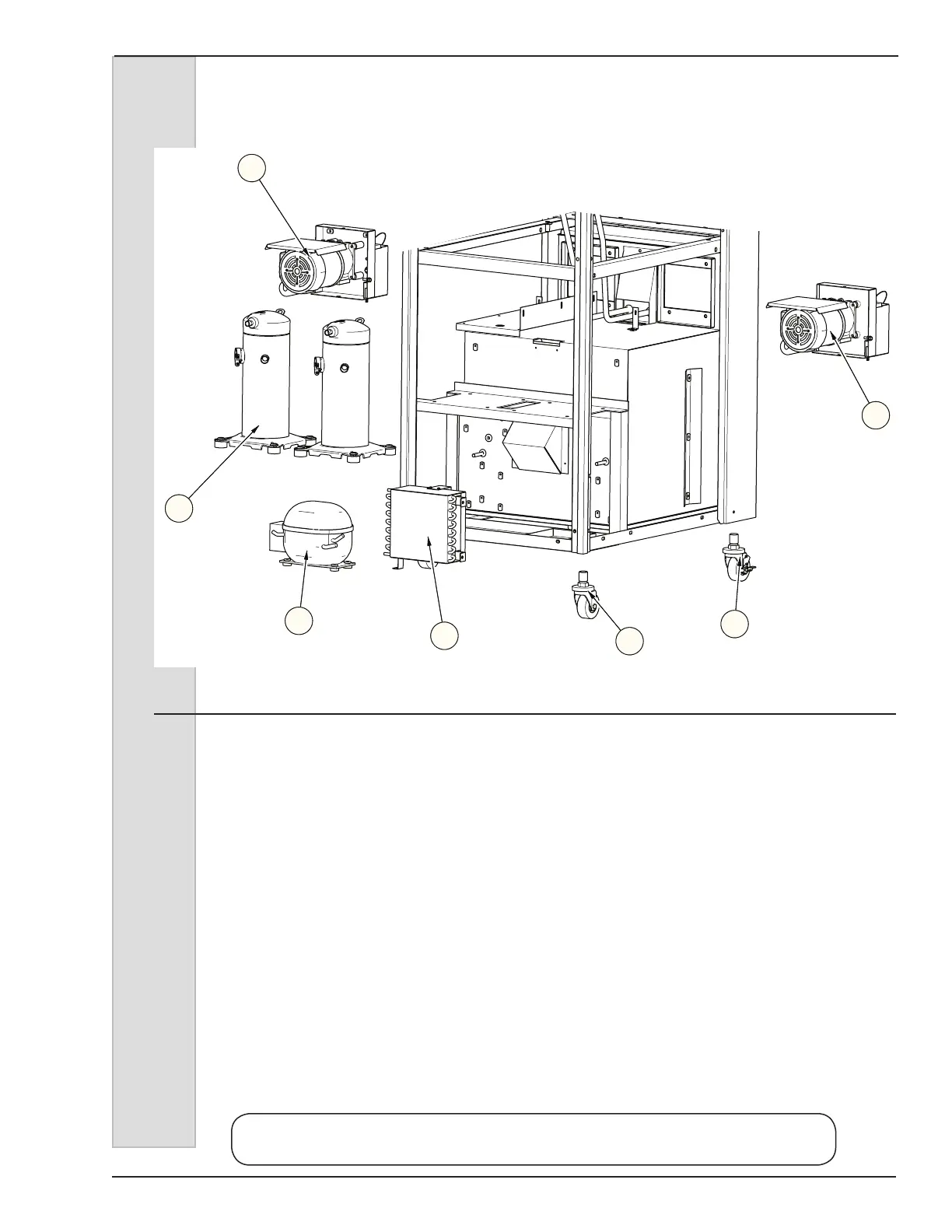

Figure 11 AC Side/Back View (Lower Cab)
6
4
3
5
1
2
7
6
4
3
5
1
2
7
Item Part No. Description
1 .................. HC121872 .............Kit - Cabinet Compressor w/Relay & Cap
2 .................. HC121619 .............Condenser - Assy GES High Cap
3 .................. HC162132-01 ........Caster - 1-14 Stem W/O Brake
4 .................. HC162131-01 ........Caster - 1-14 Stem W/Brake
5 .................. HC121634-01 ........MT - Assy. W/Relief CCW (A Side)
or ................. HC121634-02 ........3PH MT - Assy. W/Relief CCW (A Side)
6 .................. HC121634 .............MT - Assy. W/Relief CW (B Side)
or ................. HC121634-03 ........3PH MT - Assy. W/Relief CCW (A Side)
7 .................. HC154948 .............Compressor - Scroll ZS19KAE-TF5
Not Shown:
HC161216 .............Sensor - 10K Thermistor (Mix Feed Tube)
HC161222 .............Sensor - Temp 10K NTC W/Molex & Jacket (Cabinet)
HC161212-01 ........Sensor - NTC Temperature 10K W/Molex (Cylinder)
HC121441 .............Transducer (to pressure switch) Replacement Kit
