Duke GES-102 - Figure 1 Head Assembly

Soft Serve Freezer Model GES-102
184559 1
Use only original or authorized replacement parts with this freezer.
Use of unapproved parts will void warranty.

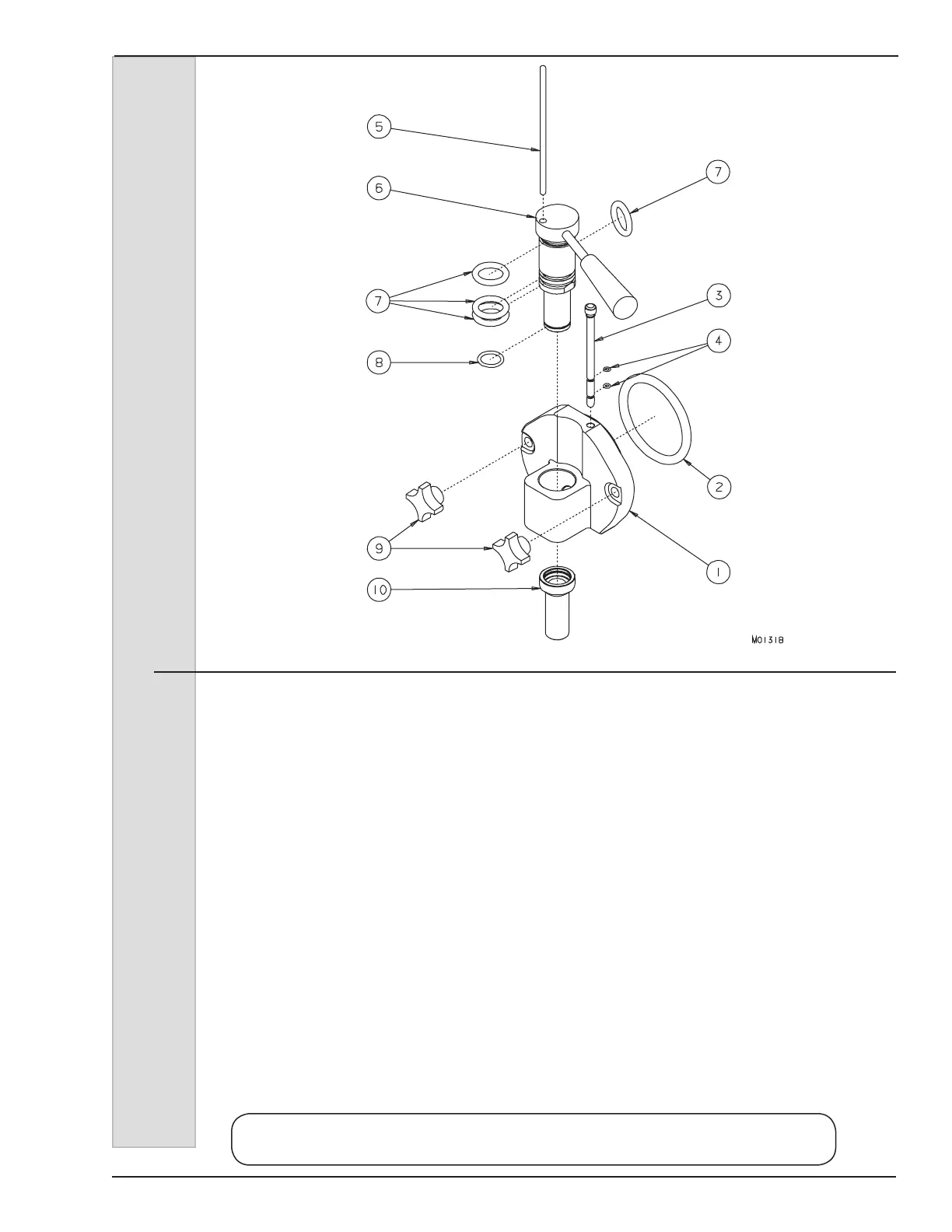

Figure 1 Head Assembly
Item Part No. Description
* ................... HC115130 .............Head - Assy. Dispense (Complete)
1 .................. HC116321 .............Head (only)
2 .................. HC160583 .............O-ring (Head)
3 .................. HC115129 .............Bleeder - Assy.
4 .................. HC160562 .............O-ring (Bleeder Assembly)
5 .................. HC136126 .............Rod - Spigot Switch
6 .................. HC134921 .............Spigot - Long Single (less extension)
6A ................ HC162624 .............Handle - Black Tapered
6B ................ HC134922 .............Handle - Spigot
7 .................. HC159295 .............O-ring (Spigot)
8 .................. HC160584 .............O-ring (Extension)
9 .................. HC162625 .............Knob - Hand
9A ................ HC114341 .............Stud - Assy. 1-15/16 inch (Not Shown)
10 ................ HC136713 .............Extension - Spigot (Cake) (Optional)
* Includes items 1-4, 6-8.
Not Shown:
HC116410 .............Kit - Dispense Head Switch
