Duke GES-102 - Figure 5 AC Side;Front View (Lower Cab)

Soft Serve Freezer Model GES-102
184559 5
Use only original or authorized replacement parts with this freezer.
Use of unapproved parts will void warranty.

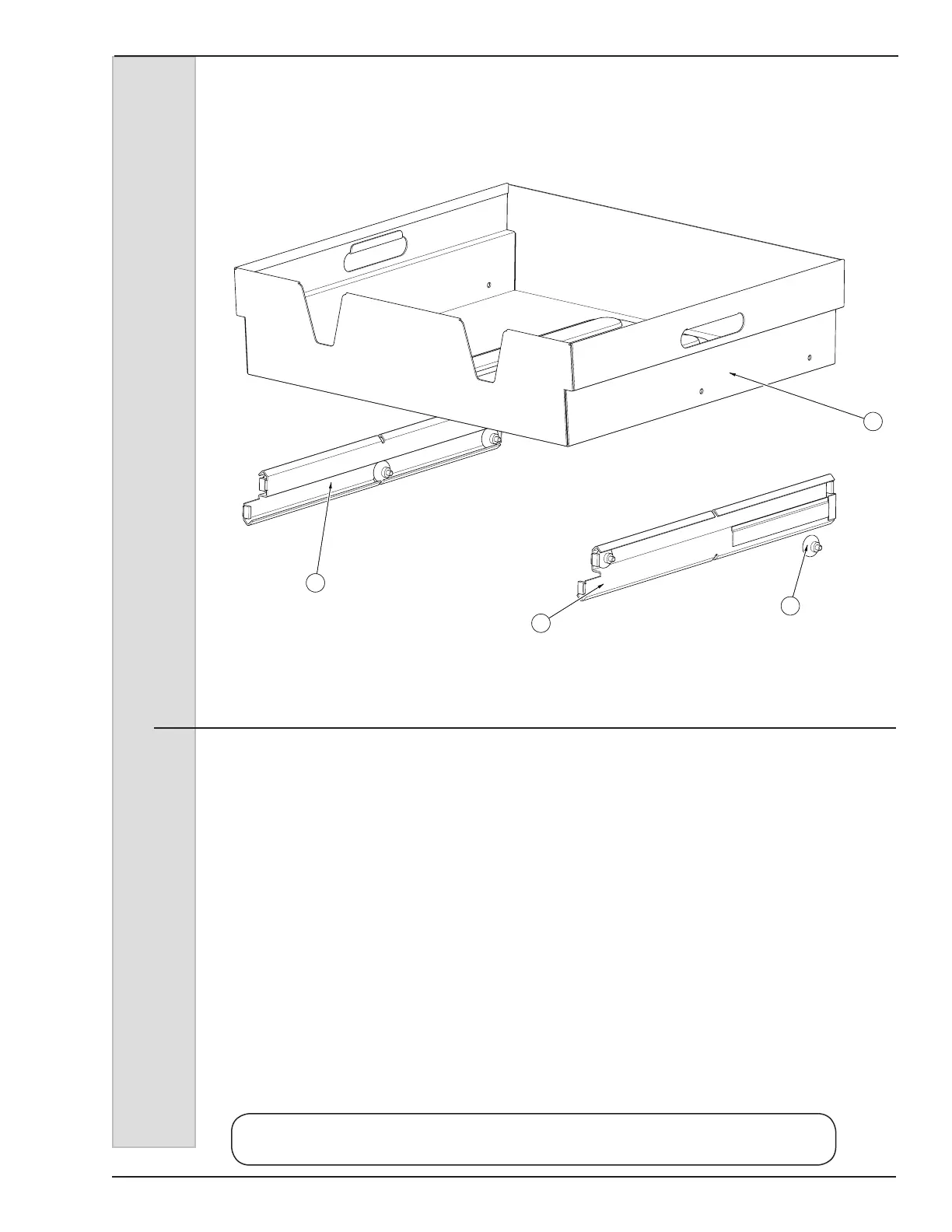

Figure 5 AC Side/Front View (Lower Cab)
1
3
4
2
1
3
4
2
Description BOM ID Qt y
HC162647-02 11
HC162647-01 21
Description BOM ID Qt y
HC162137_WHEEL 41
HC141759 31
Item Part No. Description
1 .................................................Slide Assembly - Drawer Left
2 .................................................Slide - Drawer Right
3 .................. HC141759 .............Drawer - Mix 10 Gal
4 .................. HC162137 .............Roller - Drawer
4a ................ HC159403 .............Screw - Roller (NOT SHOWN)
4b ................ HC159402 .............Nut - Roller (NOT SHOWN)
4c ................. HC160190 .............Washer - Roller Spacer (NOT SHOWN)
