Installation and Operation of: Tri-Channel Cold Pan
Installation - Tri-Channel Cold Pan - continued

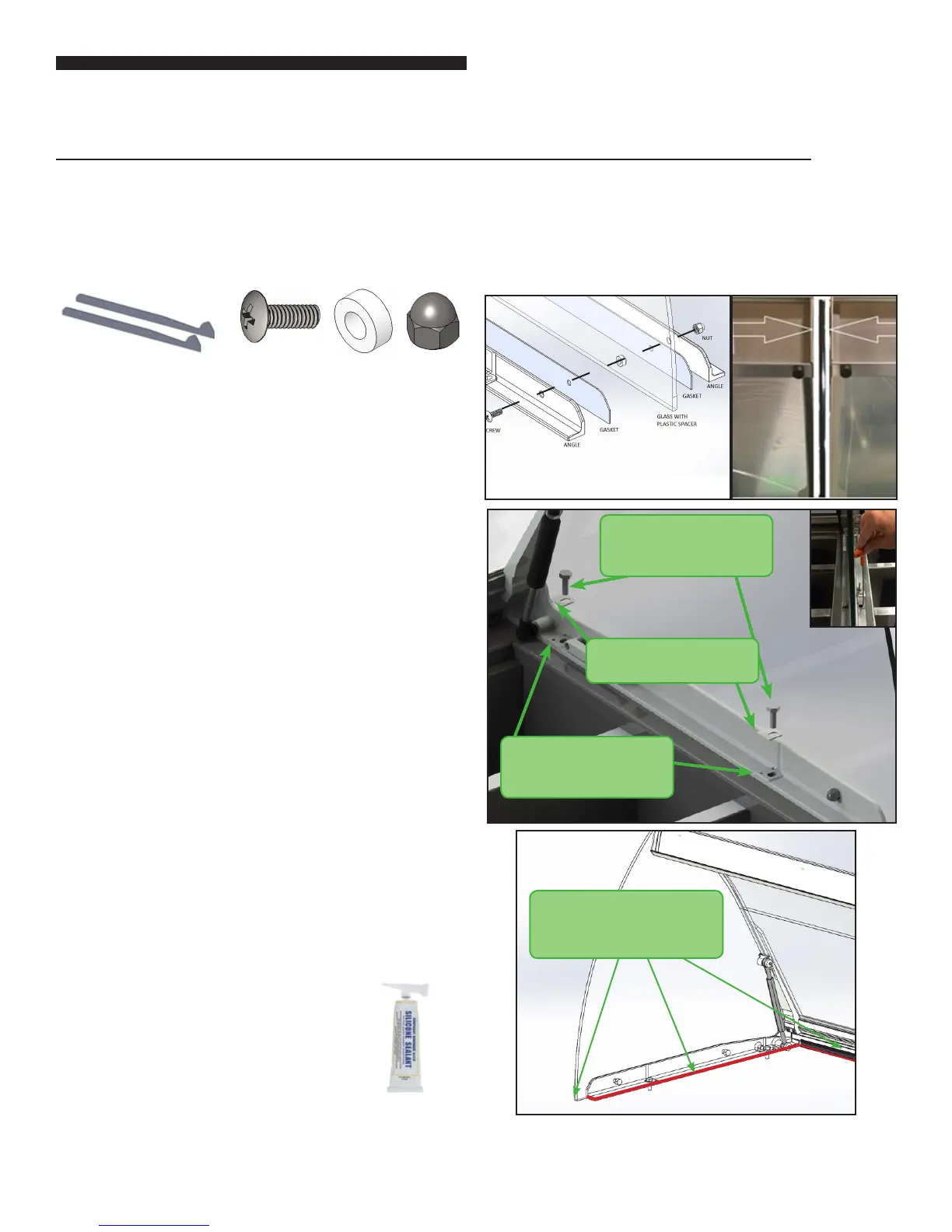

II. INSTALLATION AND ADJUSTMENT OF END GLASS (adjacent units)
NOTE: When two cold pans are installed side-by-side, the day covers should be bolted
together with only ONE end glass pane in between.
TOOLS REQUIRED: Phillips screw driver, 3/32 allen wrench, 7/16 wrench
1. After two base units are bolted together
and leveled, place PLASTIC SPACER in END
GLASS and install END GLASS between two
GASKETS and MOUNTING ANGLES. Align
the mounting holes.
Note: Glass must be bolted tight without gaps and
centerd between the two day covers. Loosen Hex bolts
if needed.
4. Hex Head Bolts
& Washers
3. Adjustment Set
Screws (4/Side)
5. Silicone under
Washer
NOTE: Loosen HEX HEAD BOLTS if needed
fastening angle to the top of the unit, to al-
low for adjustment.
2. Use 1/4-20 x 1” BOLT and 1/4-20 CAP
NUT provided in kit to fasten end glass to
the angle (2 places).
7. Repeat steps 1 through 6 for all
adjacent units of the lineup.
3. If necessary, use end mount adjusting
set screws and 3/32 Allen wrench (located
next to hex head bolts) to adjust end glass
until it is centered between the handles of
the adjacent day covers.
5. Apply a bead of silicone on bottom of
stainless steel washers.
4. Tighten 4 hex bolts (2) on each side.
6. Apply a bead of clear silicone
along bottom edge of the day
cover as shown in digram at right.
8. Apply clear Silicone
along these edges
1/4-20 X 1”
