10

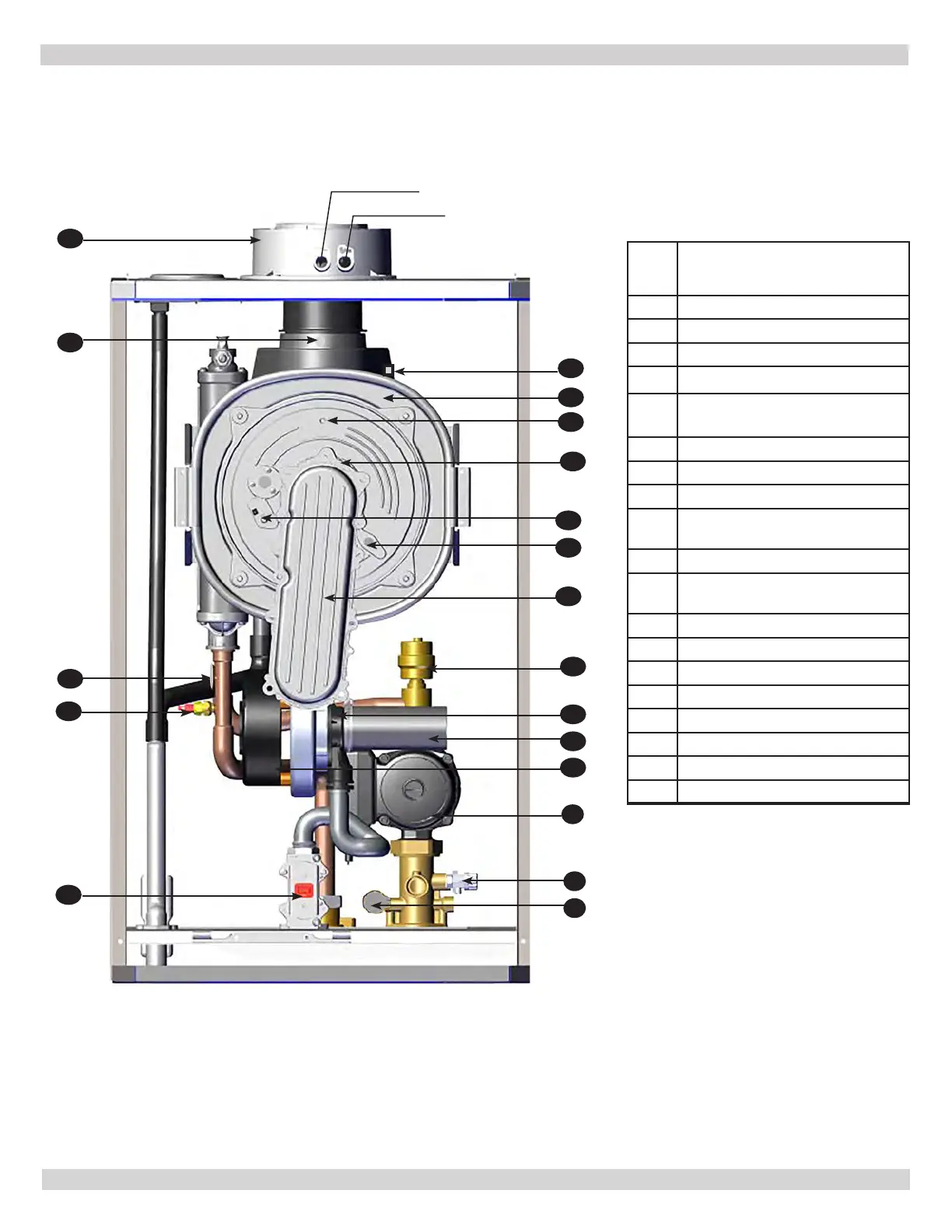

3 - COMPONENT LISTING
ITEM
NO.
Dunkirk
DCB 165
1 Pump
2 Boiler Drain Tap
3
4
Gas Valve
5
NTC Heating sensor (Flow/Return)
QTY 2, (1 Shown for clarity)
6 Water Safety Thermostat
7 Flue Sensor
8 Coaxial Connector
9
Heat Exchanger Temperature
Protector
10 Heat Exchanger
11
Burner Door Temperature
Sensor
12 Burner (not shown)
13 Ignition Electrode
14 Flame Detection Electrode
15 Air/Gas Blend Manifold
16 Air Vent
17 Venturi
18 Silencer
19 Fan
Illustrations are a depiction of the boiler for general location of parts and may vary depending on model.
2
1
8
7
6
5
13
9
14
4
12
19
15
17
10
16
11
18
3
Exhaust Port
Intake Port
240013360
REV A [07/01/2021]
DUNKIRK - DCB 165
