13
ITEM
NO.
Dunkirk
DCC-205
1 Pump
2 Flow Sensor
3
Flow Sensor with Water Filter
and Flow Restrictor
4 DHW Priority Sensor
5 DHW Heat Exchanger
6 Gas Valve
7 NTC DHW Sensor
8
9 3-Way Valve with Motor
10
NTC Heating sensor (Flow/Return)
QTY 2, (1 Shown for clarity)
11 Water Safety Thermostat
12 Flue Sensor
13 Coaxial Connector
14
Heat Exchanger Temperature
Protector
15
Heat Exchanger
16
Burner Door Temperature
Sensor
17 Burner (not shown)
18 Ignition Electrode
19 Flame Detection Electrode
20 Air/Gas Manifold
21 Air Vent
22 Venturi
23 Silencer
24 Fan
3
1
27
13
5
12
11
10
9
19
14
20
6
18
22
21
24
15
8

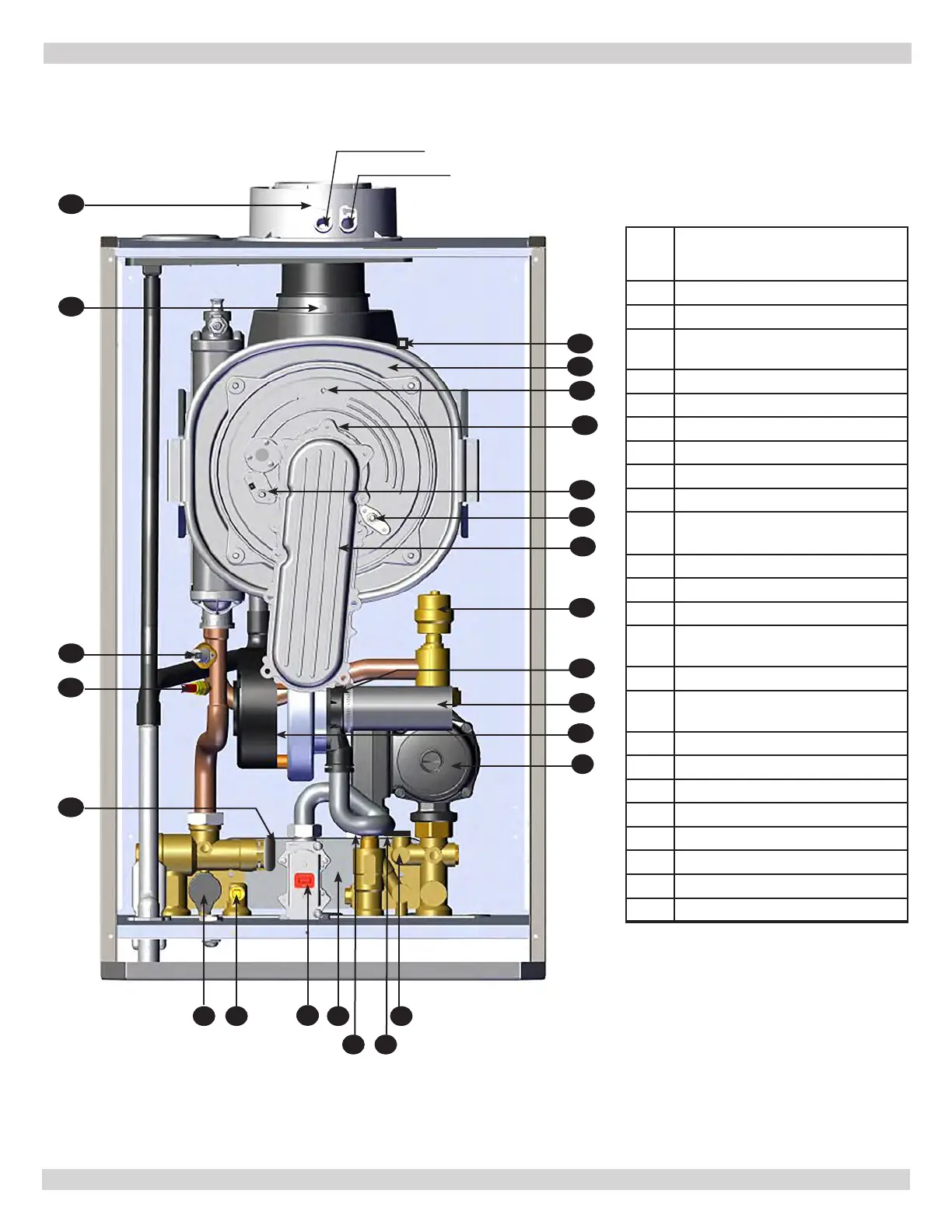

3 - COMPONENT LISTING
Illustrations are a depiction of the boiler for general location of parts and may vary depending on model.
16
17
23
4
Exhaust Port
Intake Port
240013360
REV A [07/01/2021]
DUNKIRK DCC-205
