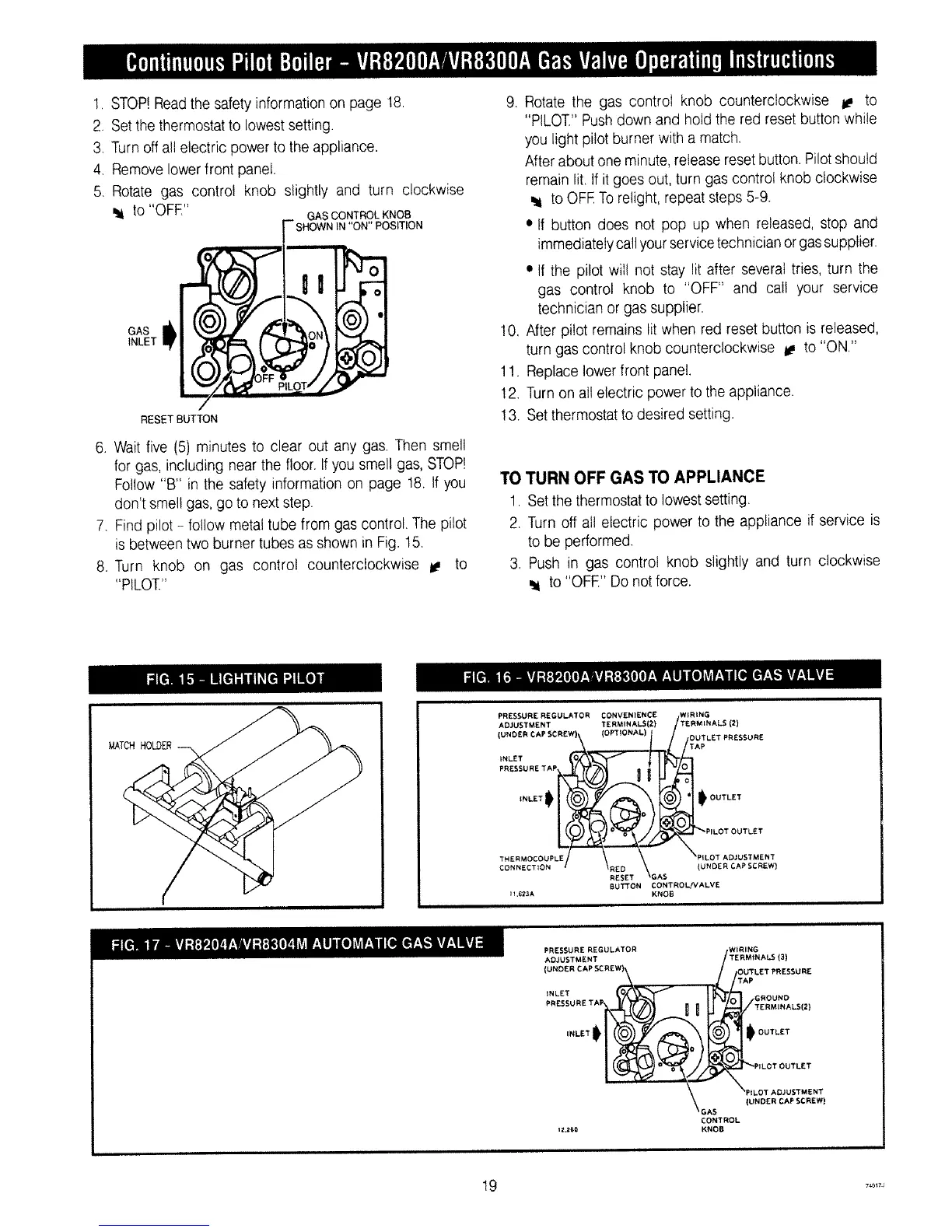

1.STOP!Readthesafetyinformationonpage18.
2.Setthethermostattolowestsetting.
3.Turnoffallelectricpowertotheappliance.
4.Removelowerfrontpanel.
5.Rotategascontrolknobslightlyandturnclockwise
GAS CONTROL KNOB
to "OFE" F SHOWNIN''ON"POSIT!ON
GAS
INLET
• o
RESET BUTTON
6. Wait five (5) minutes to clear out any gas. Then smell
for gas, including near the floor. If you smell gas, STOP!
Follow "B" in the safety information on page 18. If you
don't smell gas, go to next step.
7. Find pilot - follow metal tube from gas control. The pilot
is between two burner tubes as shown in Fig. 15.
8. Turn knob on gas control counterclockwise _ to
"PILOT."
9. Rotate the gas control knob counterclockwise i_ to
"PILOT."Pushdown and hold the red reset button while
you light pilot burner with a match.
After about one minute, release reset button.Pilot should
remain lit. If it goes out, turn gas control knob clockwise
'W to OFF To relight, repeat steps 5-9.
* If button does not pop up when released, stop and
immediately call yourservice technicianor gas supplier.
* If the pilot will not stay lit after several tries, turn the
gas control knob to "OFF" and call your service
technician or gas supplier.
10. After pilot remains lit when red reset button is released,
turn gas control knob counterclockwise t_ to "ON."
11. Replace lowerfront panel.
!2. Turn on all electric power to the appliance.
13. Setthermostat to desired setting.
TO TURN OFF GAS TO APPLIANCE
1. Set the thermostatto lowest setting.
2. Turn off all electric power to the appliance if service is
to be performed.
3. Push in gas control knob slightly and turn clockwise
_i to "OFF" Do not force.
i_ATCH HOLDER
PRESSURE REGULATOR CONVENIENCE WIRING
ADJUSTMENT TERMINALS(2} /TERMINALS (2)
(UNDER CAP SCREW)*, (OPTIONAL) | / OUTLET PRESSURE
PRESSURE TAP
THERMOCOUPLB PILOT ADJUSTMENT
CONNECTION .B/ \RR[_ET _GAS (UNDER CAP SCREW}
BU'i'FON CONTROL/VALVE
1L62aA KNOB
PRESSURE REGULATOR
ADJUSTMENT
(UNDER CAPSCREW
INLET _
PRESSURETA
IZ.160
WIRING
TERMtNALS(3)
OUTLETPRE$SURE
,,, TAP
GROUND
n TERMINALS(2)
1_ OUTLET
._PILOT OUTLET
_PILOT ADJUSTMENT
(UNDER CAPSEREW)
_GA$
CONTROL
KNOB
1 g 7_o17J
