4. BINDING

• Staples the right or left corner of the paper

within 6 mm from the top of the paper.

• Letter size paper can be corner-stapling only

if fed in wide edge leading.

• Change the jogger of stapling side to the

jogger exclusive for corner-stapling.

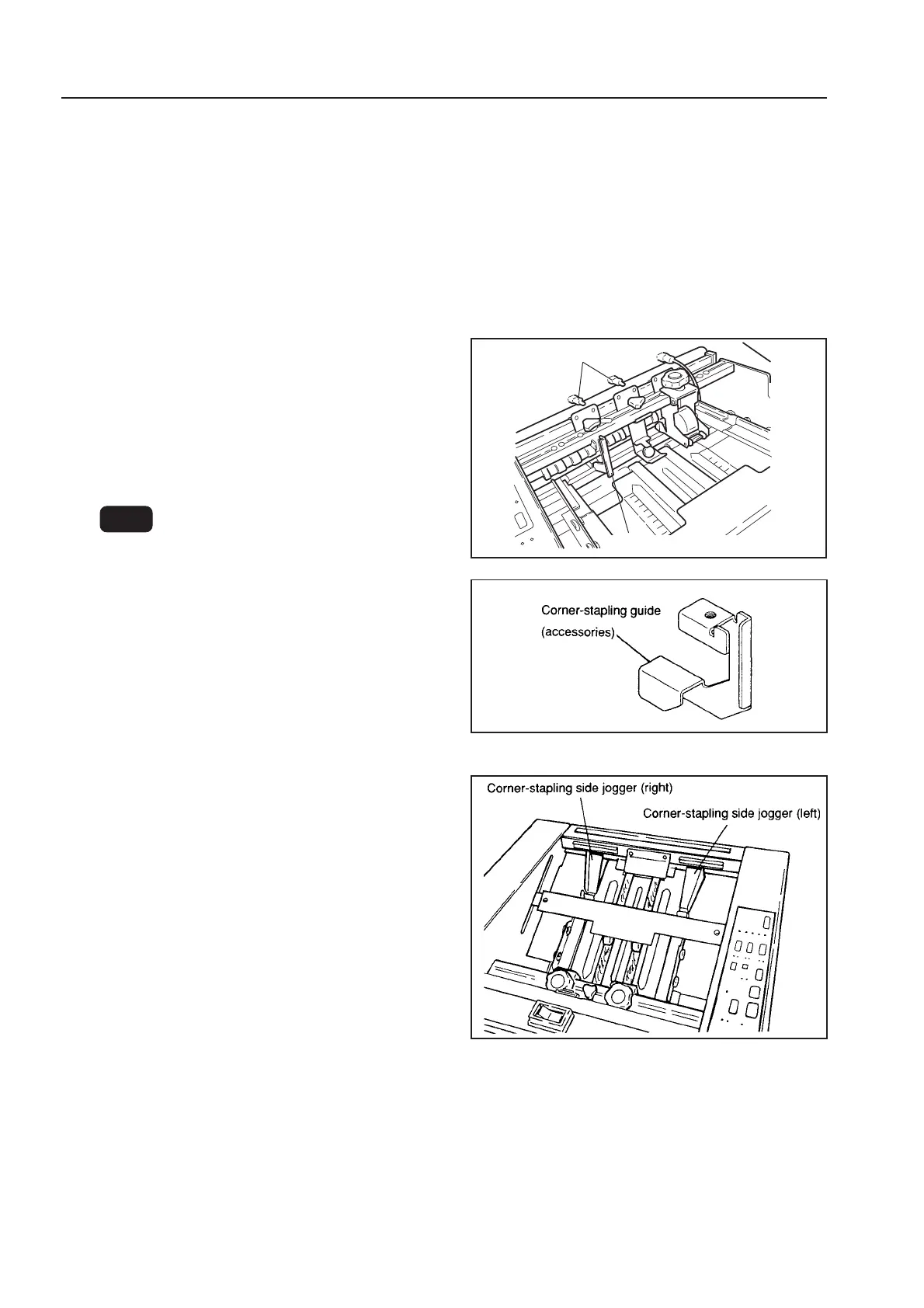

As shown in the figure, the side joggers for

saddle-stapling folding, center-folding, and

side-stapling can be removed. The corner-

stapling side jogger (left or right) is to be

attached instead (either side according to

the side of the paper to be stapled).

• Remove the stapler head which is not used

for corner-stapling, and attach the connector

unit (accessories). Secure the clincher 80

mm from the center of the unit.

And set the corner-stapling guide

(accessories) at the same position.

NOTE : Should not use stapler head without the

staple cartridge instead of the corner-

stapling guide.

Stapling with the staple cartridge removed

will cause the stapler head to damage.

Connector unit (accessories)

Corner-stapling guide (accessories)
