Part Names and Their Functions

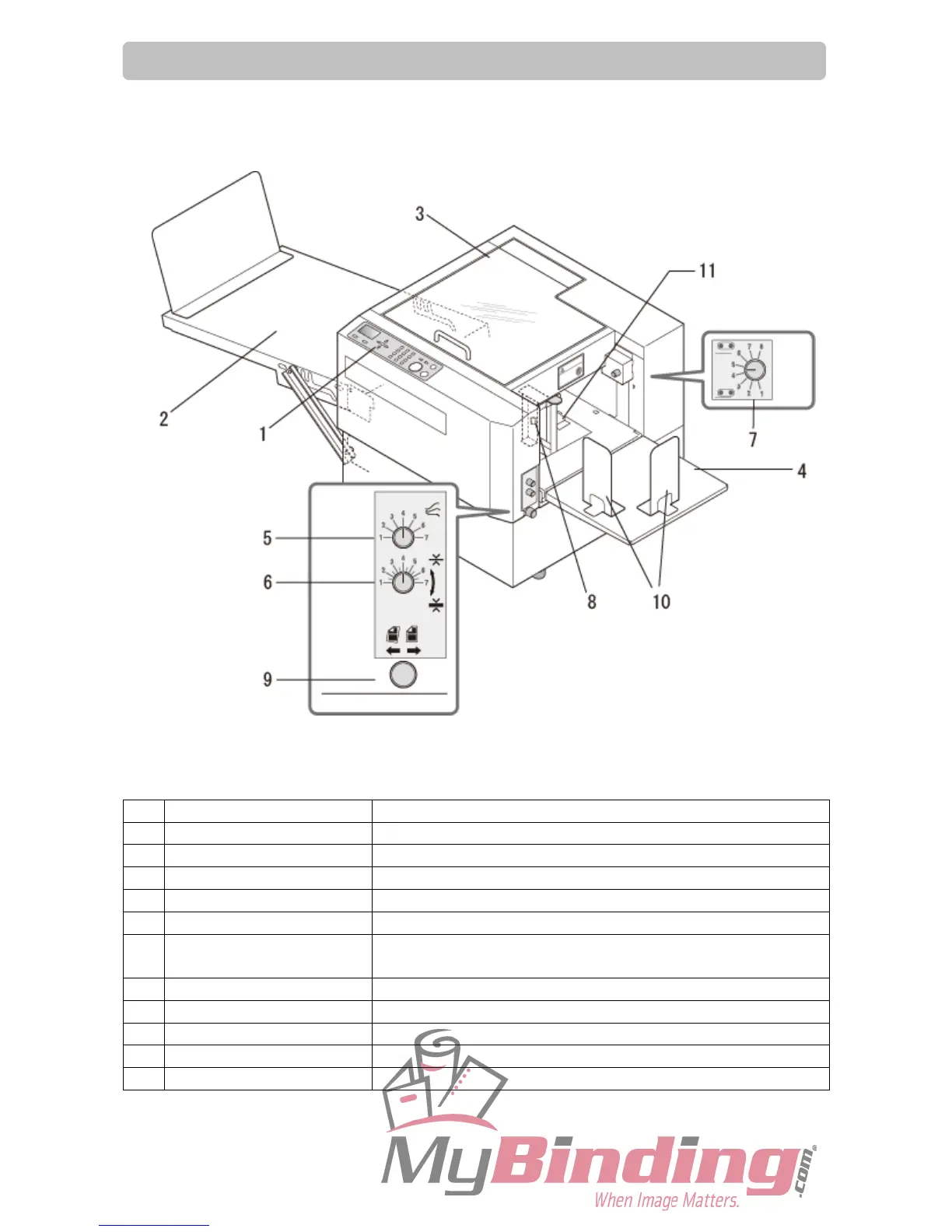

●Appearance
No. Name Function
1 Control panel Displays operations and status.
2 Stacker tray Receives finished document.
3 Top cover Open this to remove paper jam from inside of the machine.
4 Feed tray Original document is placed here.
5 Airflow adjustment knob Adjusts airflow level.
6 Separator adjustment
knob
Adjusts distance between the separator and feed belt.
7 Level adjustment knob Adjusts the elevator height.
8 Feed tray descend switch Press to lower the feed tray.
9 Skew adjustment knob Adjusts the feed angle of document.
10 Side guide Adjust these according to the paper size.
11 Guide Installed when the document size is larger than A4.
