Check that the home sensor turns ON and OFF properly
in the maintenance mode.
“3. MAINTENANCE MODE” in CHAPTER 2
ELECTRICAL COMPONENTS
SeeSee
2-6-9. Fixed position of the switching adjusting plate of folding plate 2 folding stopper
Adjusting plate for setting the switching shaft to the regulated stopping position in single folding.

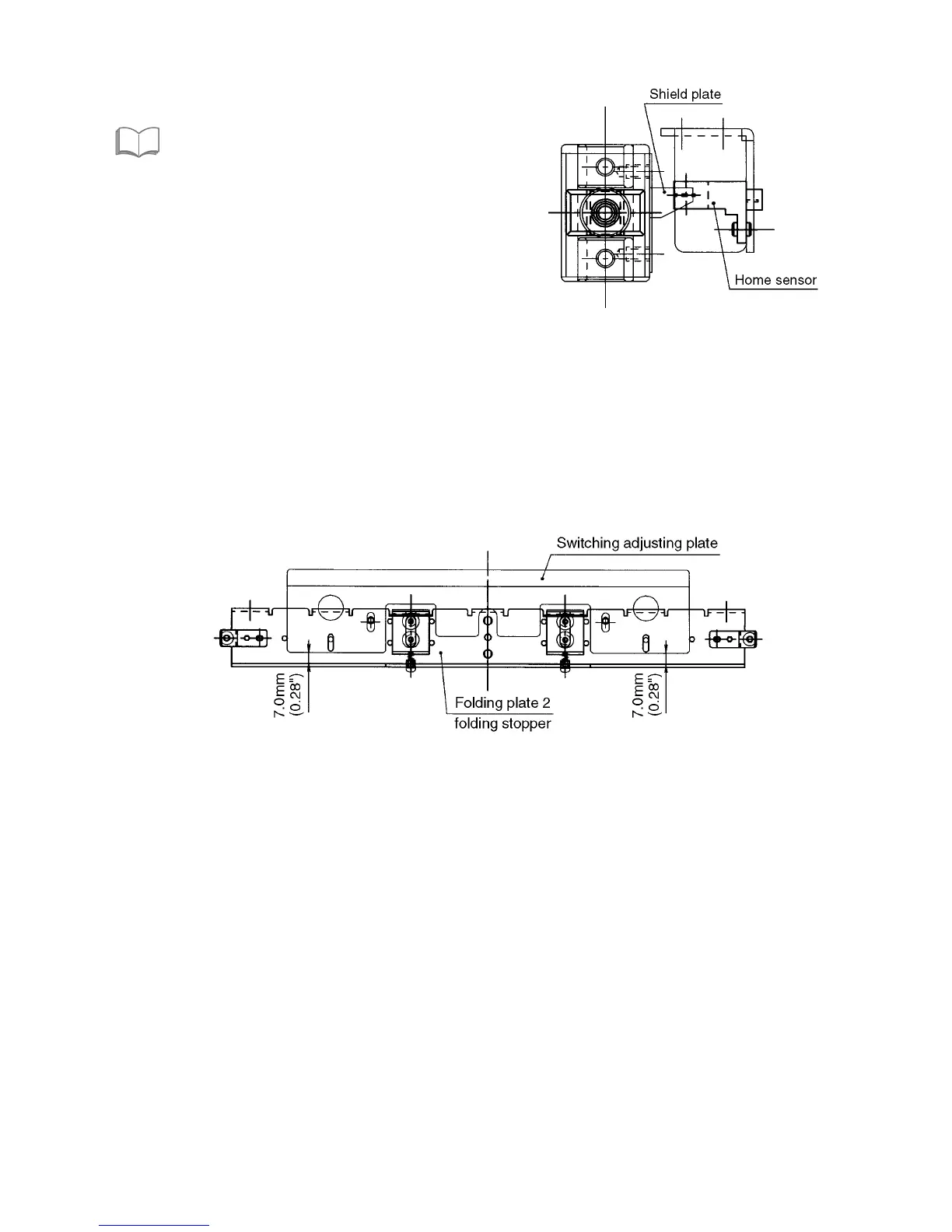

q Secure the switching adjusting plate at the position (7.0 mm (0.28")) shown in the figure while paying attention to
the left and right parallelity.
w Apply a very small amount of thread locking to the fixing screw of the switching adjusting plate.
(Loctite 242: Medium strength)
