1-30
12H-M12M0-0309-0

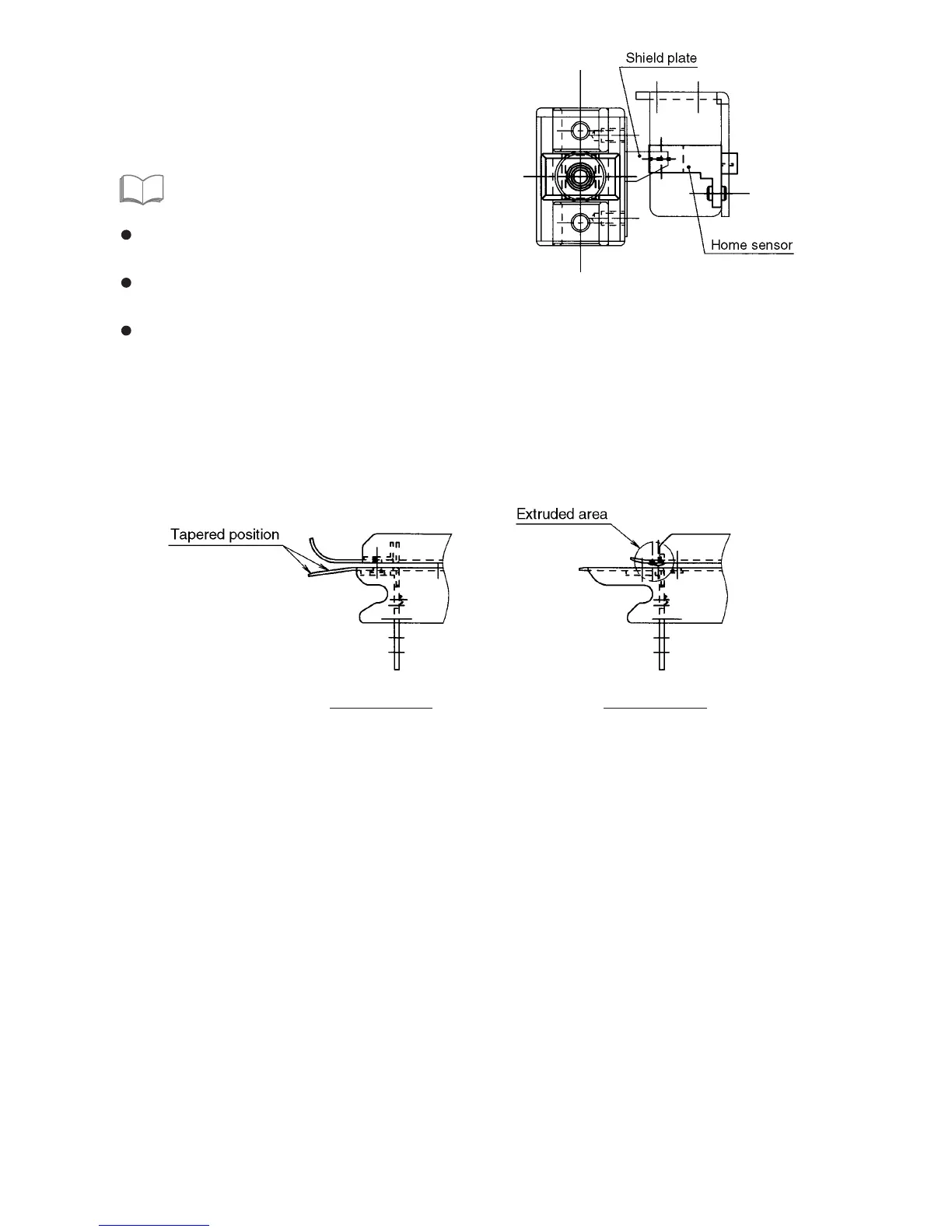

(3) Shape of paper inlet of folding plate
The lower guide of folding plate 1 is tapered to facilitate entrance and exit of paper to and from the folding roller.
The upper guide of folding plate 2 is extruded (deep drawing) to reduce the local clearance of the conveyance
route in the aim to reduce W dent and dog ears.
(2) Adjusting the home position of the folding
stopper
The home position of the folding stopper is the
basic position where the shield plate blocks the
home sensor added with the correction value set in
the following maintenance mode.
“3. MAINTENANCE MODE” in CHAPTER 2
ELECTRICAL COMPONENTS
Correction value of folding plate 1 home position
(Maintenance mode code No.1)
Correction value of folding plate 2 home position
(Maintenance mode code No.2)
Correction value of switching shaft home
position (Maintenance mode code No.3)
SeeSee
Folding plate 1 Folding plate 2
To Next Page
