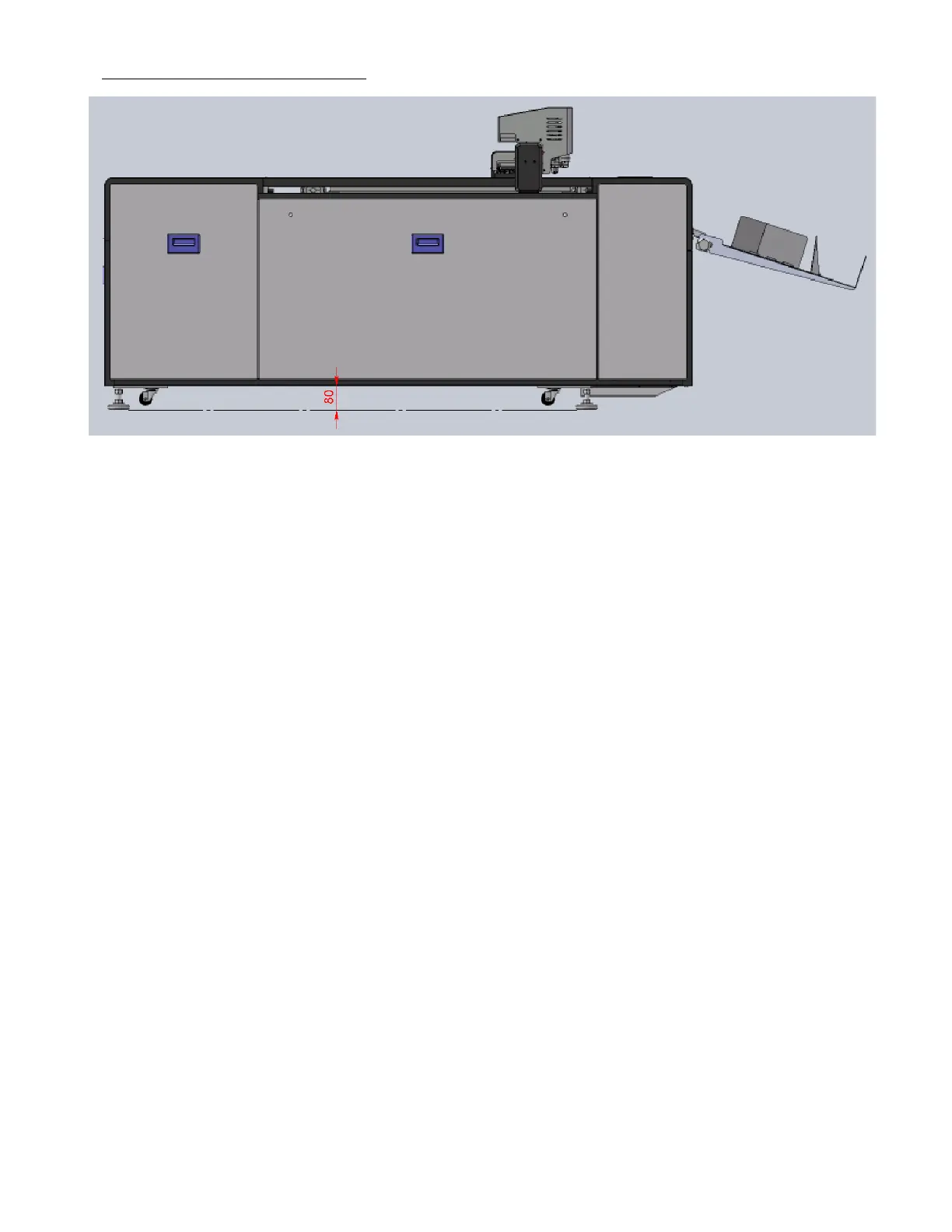

f. Set the cutter foot height to 80mm.
g.
6.2 Optimum Environment
a. Operational ambient temperature of this machine is 40°F (10°C) ~ 96.8°F (36°C)
The machine should be kept away from the wall at least 30” (76cm) facilitate operation of the control
panel and servicing purpose.
b. Machine should have at least 30” (76cm) space with any other equipment.
6.3 After Installation and before Activating the Cutter
a. Note the Serial No for future service use.
b. Avoiding accident the machine must be grounded according to electrical rule NO.3
c. Do not connect ground with the other machine which has leakage circuit breaker.
6.4 Power Requirement
DPC-600PKG Cutter: 220V±10%, 60HZ, 15A
6.5 Clearance Requirements
a. The machine should have at least 30” (76cm) space against any wall.
b. Machine should have at least 30” (76cm) space with any other equipment.
