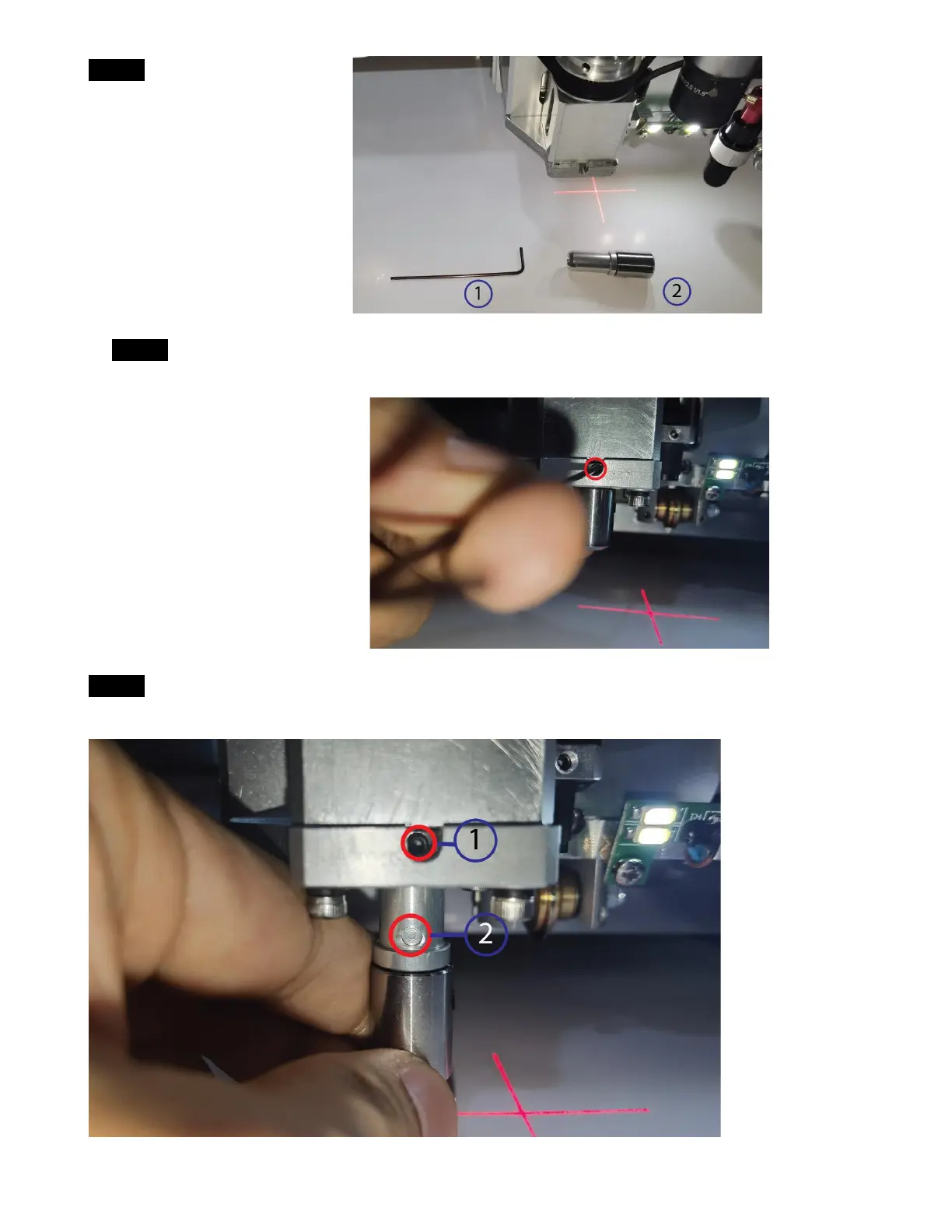

Step 7 Prepare the tools
①: 1.5 mm Allen key
②: Full cutting tool
Step 8: Insert the tool into the full cutting tool holder in the machine head, match the holder lock screw
with the tool lock notch to be in the same position
①: Holder lock screw
②: Tool lock notch
Step 9 Push up the tool deeply inside the holder and tight the holder lock screw on the tool lock notch.
