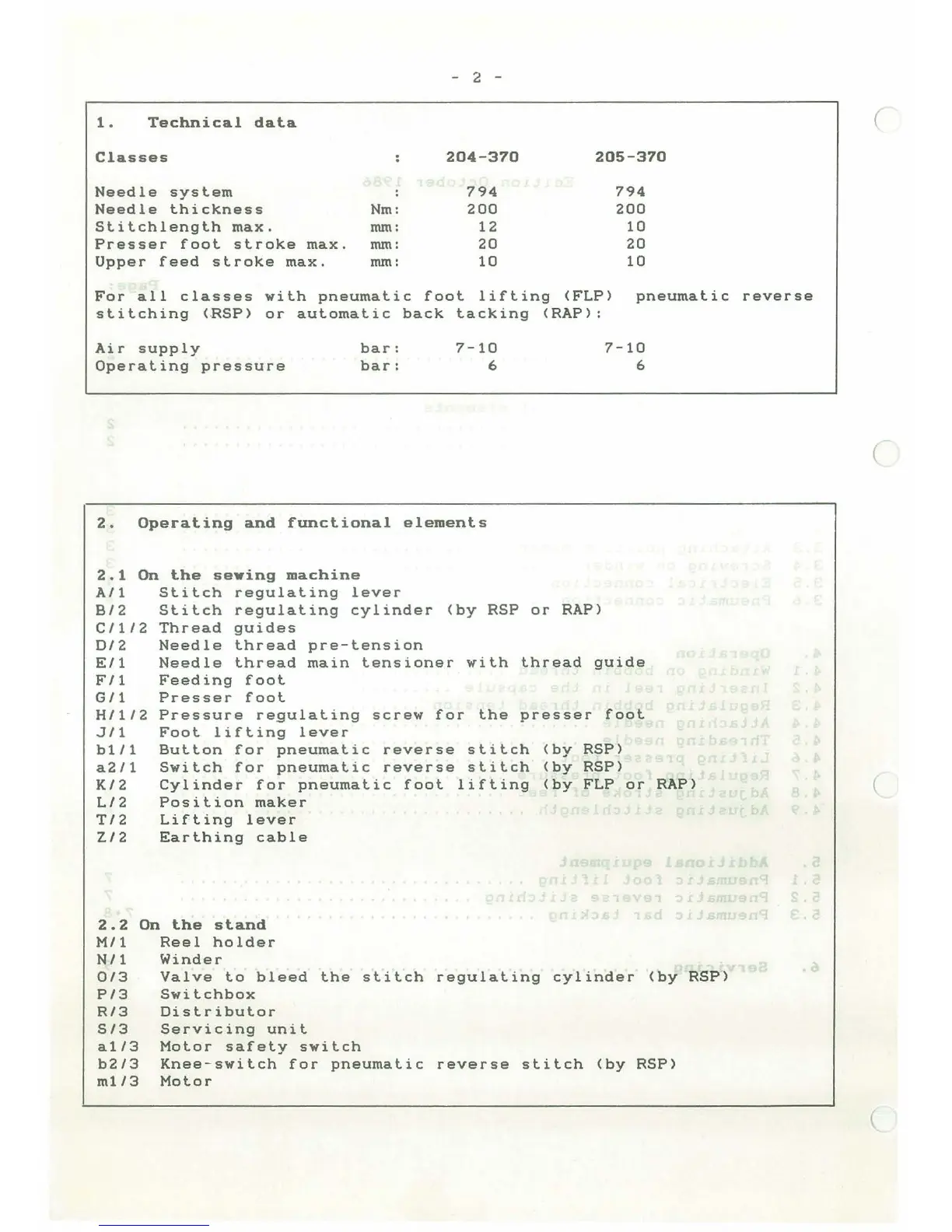

DURKOPP ADLER 204

- 2
-
1.
Technical
data
Classes
204-370 205-370
Needle system 794 794
Needle thickness Nm : 200
200
Slilchlenglh max. mm: 12 10
Presser fool stroke max. mm: 20
20
Upper feed stroke max. mm: 10 10
For all classes with pneumatic fool lifting <FLP> pneumatic reverse
stitching <RSP> or automatic back lacking <RAP>:
Air supply
Operating pressure
bar:
bar :
7-10
6
7-10
6
2. Operating and functional elements
On the sewing machine
2.1
A/1
B/2
C/1/2
D/2
E/1
F /1
G/1
H/1/2
J/1
b1/1
a2/1
K/2
L/2
T/2
Z/2
Stitch regulating lever
Stitch regulating cylinder <by RSP or RAP>
Thread guides
Needle thread pre-tension
Needle thread main lensioner with thread guide
Feeding fool
Presser fool
Pressure regulating screw for the presser foot
Foot lifting lever
Button for pneumatic reverse stitch
Switch for pneumatic reverse stitch
Cylinder for pneumatic foot lifting
Position maker
Lifting lever
Earthing cable
<by RSP>
<by RSP>
<by FLP or RAP>
2.2
M/1
N/1
0/3
P/3
R/3
S/3
a1/3
b2/3
m1/3
On the stand
Reel holder
Winder
Valve to bleed the stitch regulating cylinder <by RSP>
Switchbox
Distributor
Servicing unit
Motor safety switch
Knee - switch for pneumatic reverse stitch (by RSP>
Motor
.~
(
(
(
