DURKOPP ADLER 204 User Manual

(
(
- 3 -

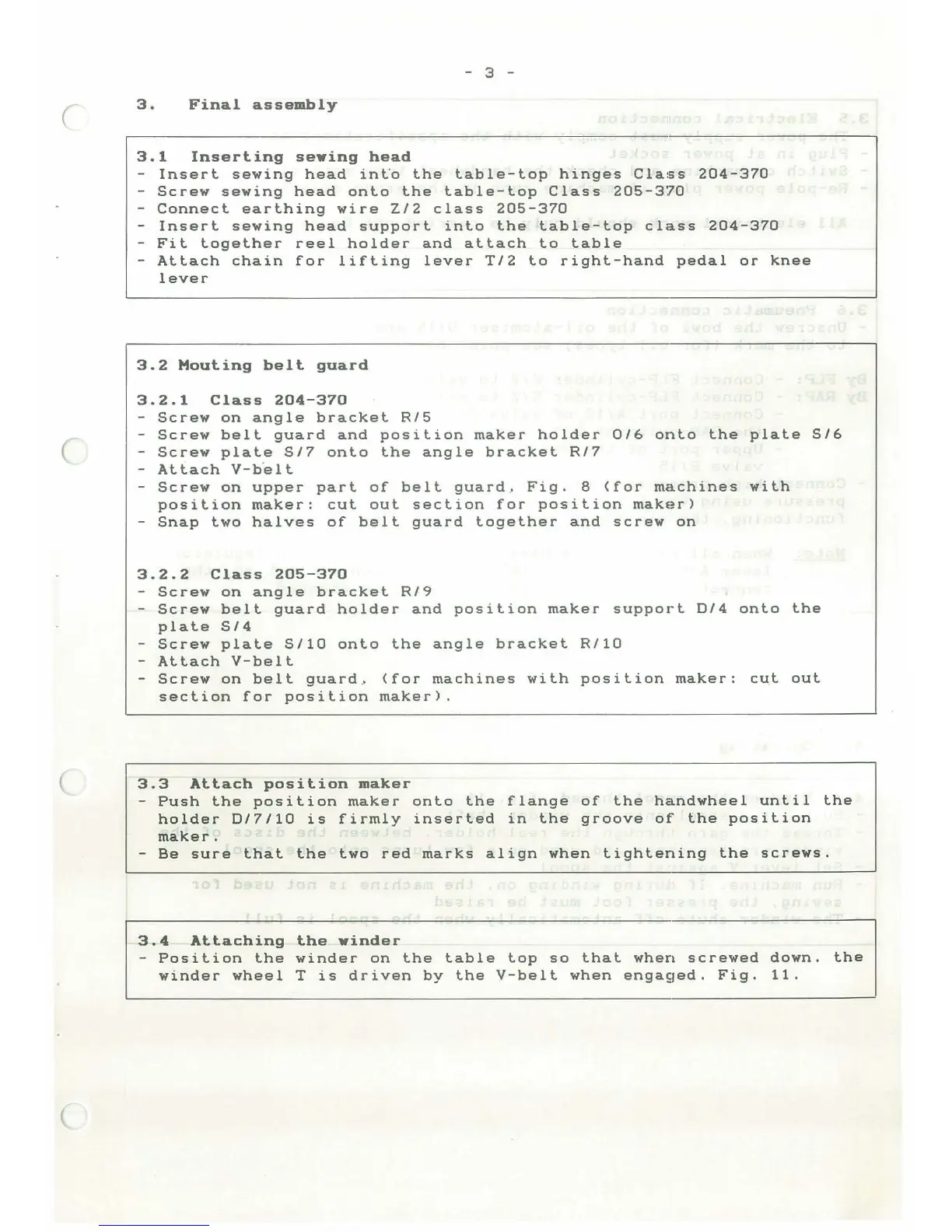

3.
Final assembly
3.1 Inserting sewing bead
- Insert sewing head int ·o the table-top hinges Class 204-370
- Screw sewing head onto the table-top Class 205-370
- Connect earthing wire Z/2 class 205-370
- Insert sewing head support into the table-top cl;~ss 204-370
- Fit together reel holder and attach to table
Attach chain for lifting lever T/2 to right-hand pedal or knee
lever
3.2 Hauling bell guard
3.2.1 Class 204-370
- Screw on angle bracket R/5
- Screw belt guard and position maker holder 0/6 onto the plate S/6
- Screw plate S/7 onto the angle bracket R/7
- Attach V-b - el t
- Screw on upper part of belt guard. Fig . 8 (for machines with
position maker : cut out section for position maker>
- Snap two halves of belt guard together and screw on
3.2.2 Class 205-370
- Screw on angle bracket R/9
- Screw belt guard holder and position maker suppor · t D/4 onto the
plate S/4
- Screw plate S/10 onto the angle bracket R/10
- Attach V-belt
- Screw on bell guard .. (for machines with position maker : cut oul
section for position maker> .
(
3.3 Attach position maker
- Push the position maker onto the flange of the handwheel until the
holder D/7/10 is firmly inserted in the groove of the position
maker.
- Be sure that the two red marks align when tightening the screws.
3.4 Attaching the winder
- Position the winder on the table top so that when screwed down . the
winder wheel T is driven by the V-belt when engaged. Fig. 11.
