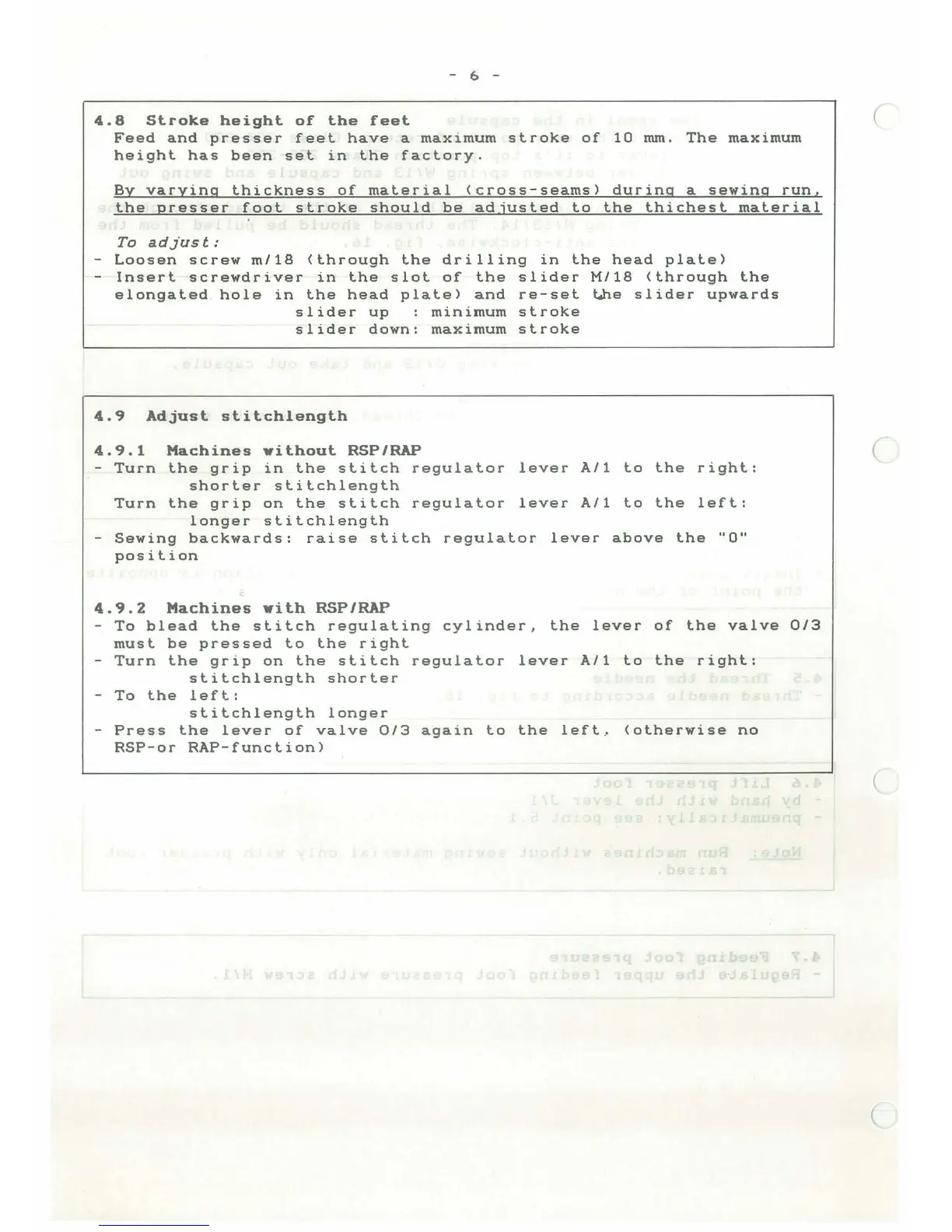

- 6 -
4.8
Stroke
height
of
the
feet
Feed
and
presser
feet
have
a
maximum
stroke
of
10
mm.
The
maximum
height
has
been
set
in
the
factory.
By
varying
thickness
of
material
<cross-seams)
during
a
sewing
run,
the
presser
foot
stroke
should
be
adjusted
to
the
thichest
material
To
adjust:
Loosen
screw
m/18
<through
the
drilling
in
the
head
plate)
-
Insert
screwdriver
in
the
slot
of
the
slider
M/18
<through
the
elongated
hole
in
the
head
plate>
and
re-set
Uhe
slider
upwards
slider
up
minimum
stroke
slider
down:
maximum
stroke
4.9
Adjust
stitchlength
4.9.1
Machines
without
RSP/RAP
-
Turn
the
grip
in
the
stitch
regulator
lever
A/1
to
the
right:
shorter
stitchlength
Turn
the
grip
on
the
stitch
regulator
lever
A/1
to
the
left
:
longer
stitchlength
-
Sewing
backwards:
raise
stitch
regulator
lever
above
the
"0"
position
4.9.2
Machines
with
RSP/RAP
-To
blead
the
stitch
regulating
cylinder,
the
lever
of
the
valve
0/3
must
be
pressed
to
the
right
-
Turn
the
grip
on
the
stitch
regulator
lever
A/1
to
the
right:
stitchlength
shorter
-
To
the
left:
stitchlength
longer
Press
the
lever
of
valve
0/3
again
to
the
left,
<otherwise
no
RSP-or
RAP-function)
'
(
(
(
