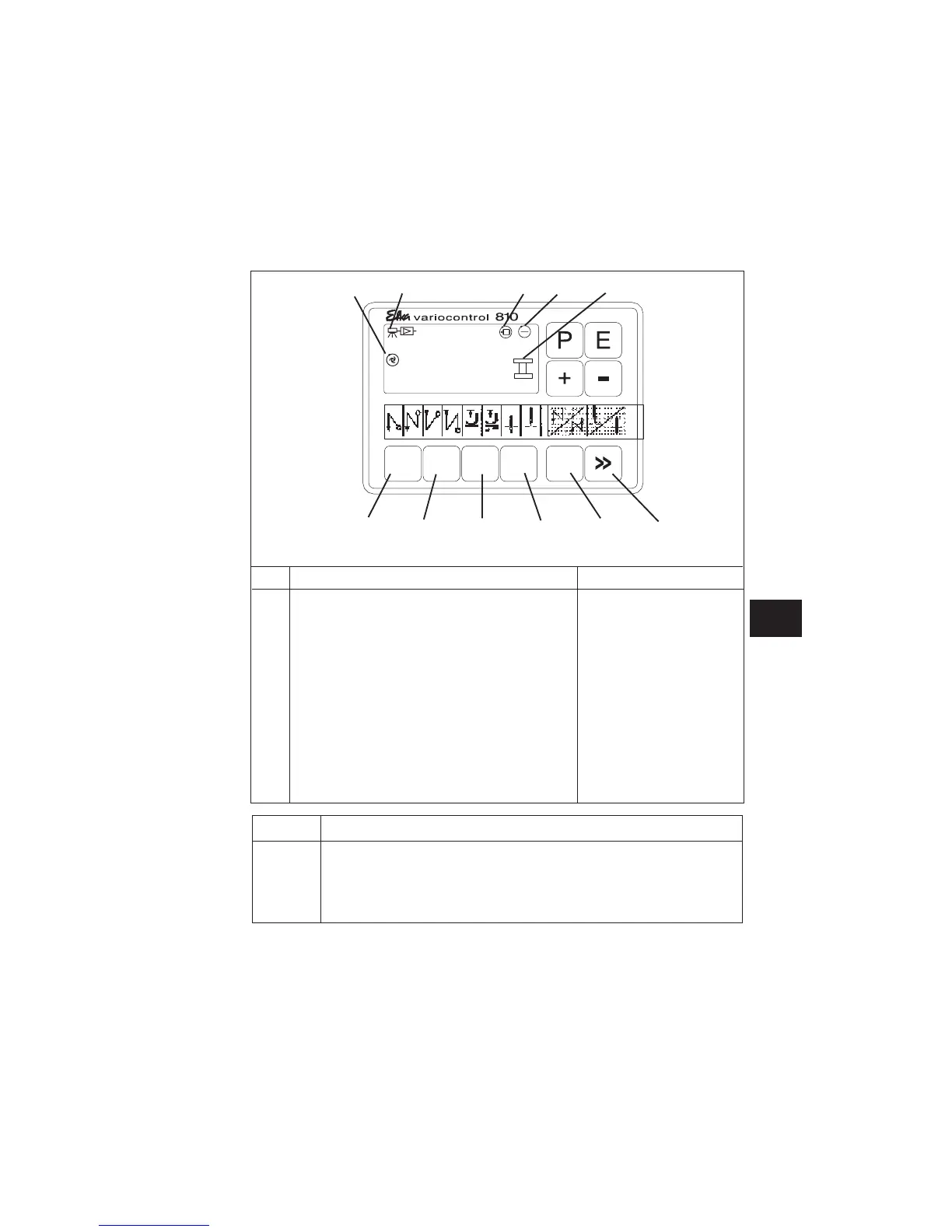

7.1 V810 Operating Panel Keys
Key Function Settings
P Start or end programming mode
E Confirm a parameter-value change
+ Increase a displayed parameter value
- Decrease a displayed parameter value
1 Starting bar tack or starting stitch condensation SINGLE / DOUBLE / OFF
2 Ending bar tack or ending stitch condensation SINGLE / DOUBLE / OFF
3 Autofootliftonstopinmid-seam ON/OFF
3 Auto foot lift after thread trimming ON / OFF
4*** Basic needle position (UT/OT) POSITION 1 / POSITION 2
A* Key for bar tack suppression or activation
B** Key for needle up/down or shift-key
in programming mode
Symbol Function
C Automatic rotation speed active
D Light barrier switched on
E Machine running
F Limited rotation speed active
* Other functions possible (see parameter 293)
** Other functions possible (see parameters 294)
*** Other functions possible (see parameters 291) e.g.
“A” key parameter F-293-18
“B” key parameter F-294-18
21
GB
12 3 4 A B
CD EFG
