2.4 Reel stand

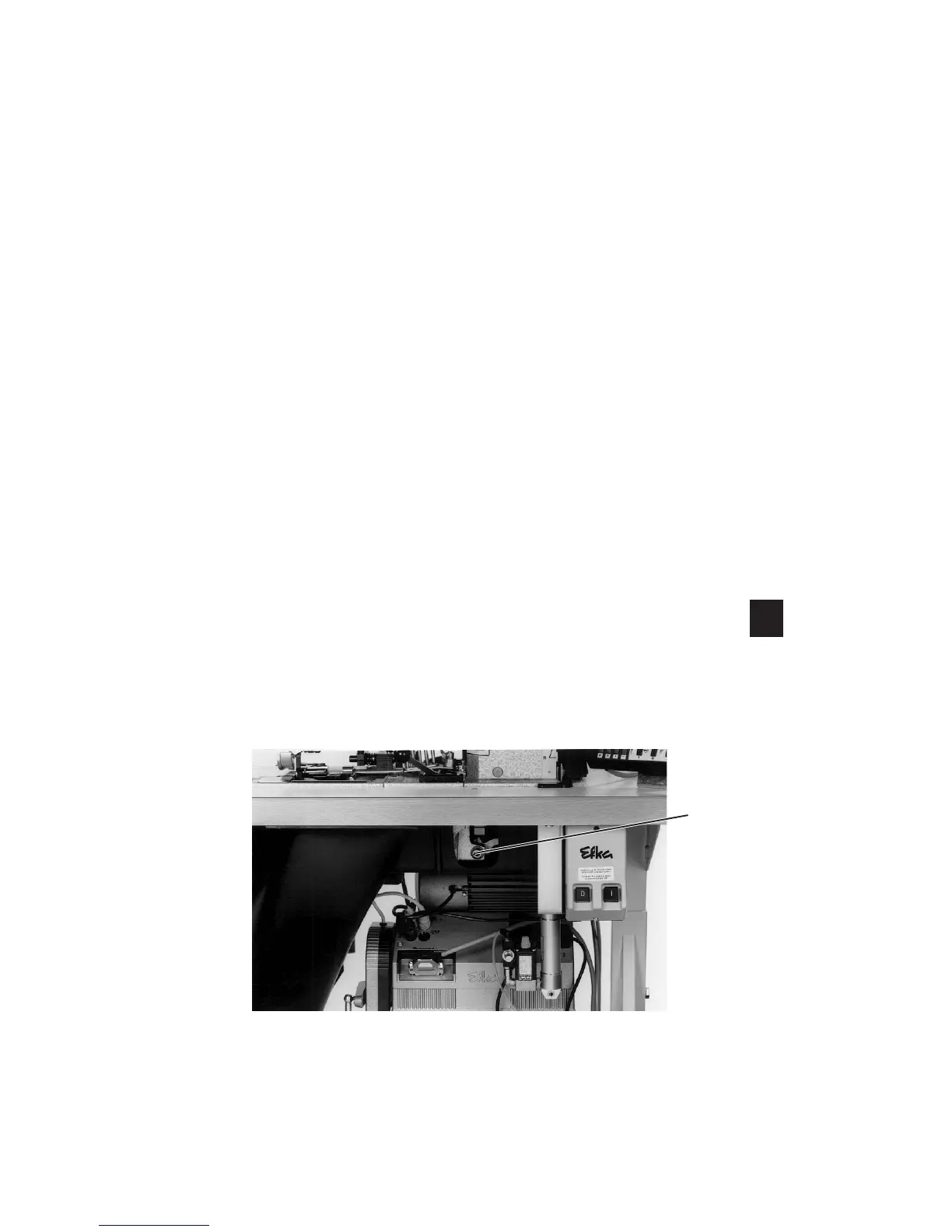

The structure and position of the reel stand 1 can be seen in the illustration.
–
Fit reel stand 1 and secure it with nuts 2 and washers 3.
–
Fit reel-stand holder and take-up arms.
The reel-stand holder and take-up arms must be vertically in line.
2.5 Working height
Working height is adjustable between 750 and 900 mm. It is pre-set at 790 mm prior to
delivery.
–
Loosen screw 4 on both sides of the frame.
–
Place the machine at the desired working height and ensure that it is level.
–
Retighten screw 4 on both sides of the frame.
The shift linkage 6 between the pedal and the motor-control cabinet must be adjusted in
line with the working height.
–
Loosen screw 7.
–
Adjust pedal 5.
Operatives must be able to move the pedal freely forwards and backwards.
–
Retighten screw 7.
2.6 Knee lever
The knee lever is used to raise the sewing feet mechanically.
–
Fit knee lever with hinges into hollow shaft 8 and engage.
