DURKOPP ADLER HVP-20 Series - The Load Balance When Use 1Φ; 220 V Motor Used on 3 Φ; 220 V Power Source; How to Change Solenoid Supply Voltage (DC 24 V or 30 V)

8

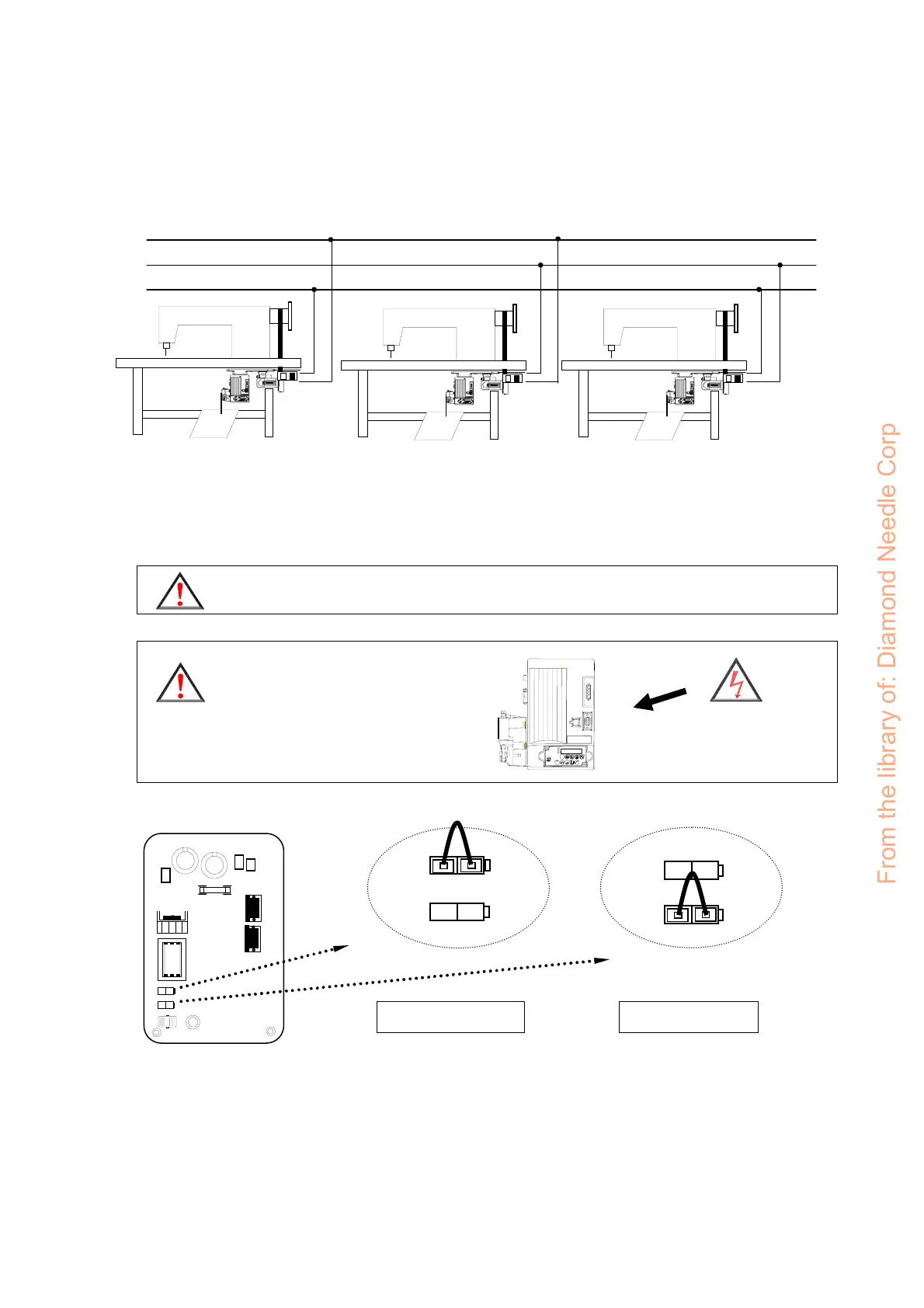

(3). The load balance when using 1Φ / 220V motors in 3Φ / 220V power system :
Please install the power connections as the following diagrams for the load balance.
(4) How to change solenoid supply voltage : (DC: 24 V OR 30 V)
When changing the solenoid voltage to 24V or 30V, use the JP1 and JP2 on the power board to do
the jumper switch.
R
S
T
Caution （2）:
Turn off the power and wait for 5 min.
before opening the cover, then make the
change.
High voltage inside
30V jumper setting 24V jumper setting
Power board layout :
HSV-PS1220X
X
JP 1
24 V
30 V
JP 2
JP 1
24 V
30 V
JP 2
Factory setting
Caution （1）: Before making the switch, check the machine head solenoid specification.
