DURKOPP ADLER HVP-20 Series - Parameter Adjustment (1). How to Enter【Normal Mode; How to Enter【Parameter Mode】Level; How to Set The【Parameter Value】With F-10 Operation Panel

15
6. Parameter Adjustment
(1). How to enter【Normal Mode】:
(2). How to enter 【Parameter Mode】level：
Parameter Mode Operation First display Range for Parameter
Level 1
Parameter
Mode A
Parameter ＃1 ~ 46
Level 2
Parameter
Mode B
Parameter ＃1 ~ 122
RESET
Return to factory setting
Note
※ When use C-60 operation box, the key for each mode is same as above.

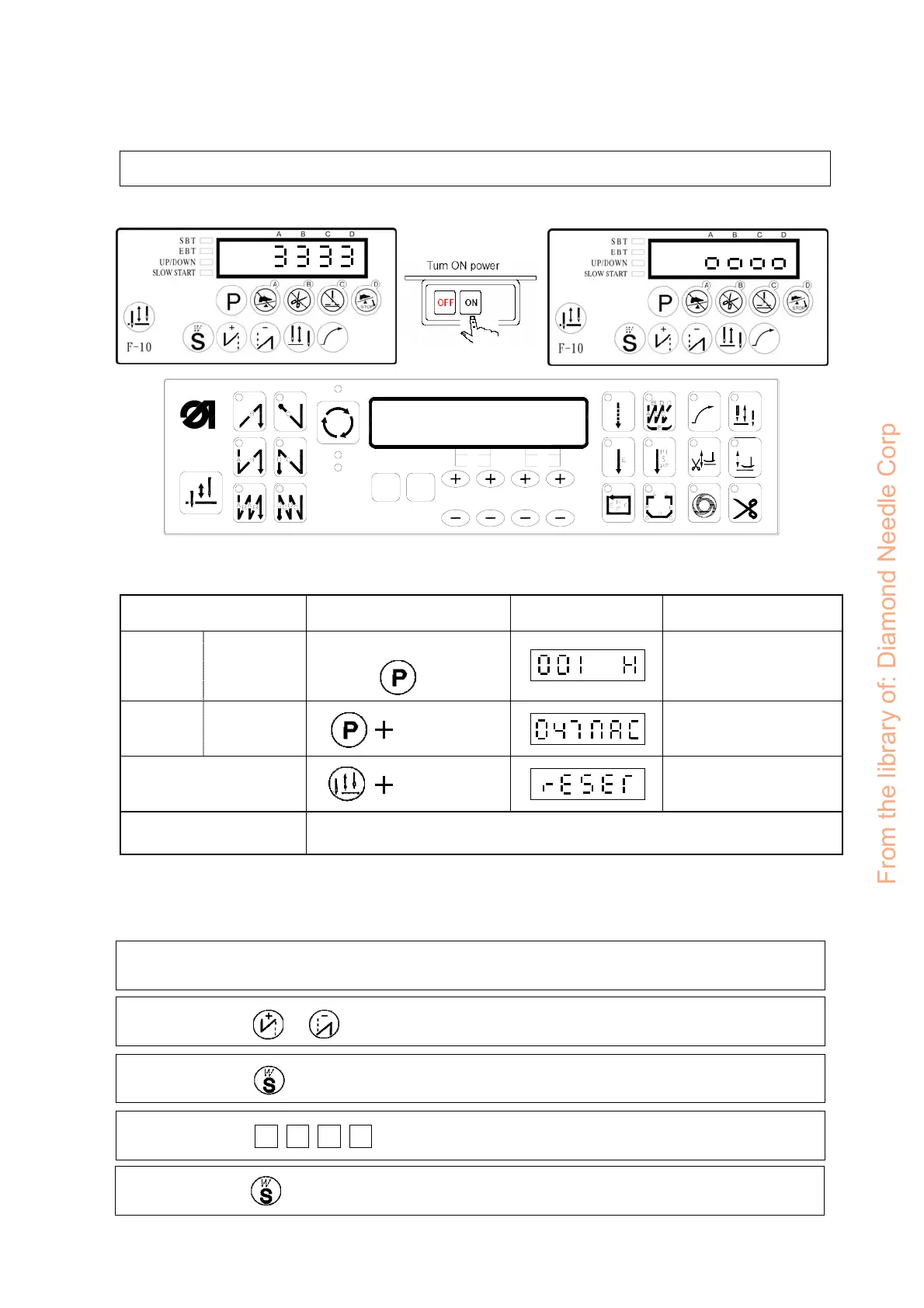

(3). How to set the【Parameter Value】with F-10 operation panel :
Confirm the parameter you want to adjust. (See the parameter list) and follow the below steps to adjust the
parameter value.
Just turn ON the power to enter【Normal Mode】
Display for lockstitch
Machine
.
.
Step 1： Enter one of the【 Parameter Mode A or B 】.
Step 2： Press or key to select the target parameter number.
Step 3： Press key to enter the parameter value.
Step 4： Press key to adjust the value.
A
B C D
Step 5： Press key to save the value and return to【Normal Mode】automatically.
POWER ON
At【Normal Mode】
press key.
POWER ON
EF
G
SP
H
ACBD
C-60 : see note.
Display for interlock Machine / or
when parameter 134 KLK =ON
