DURKOPP ADLER HVP-20 Series User Manual

11

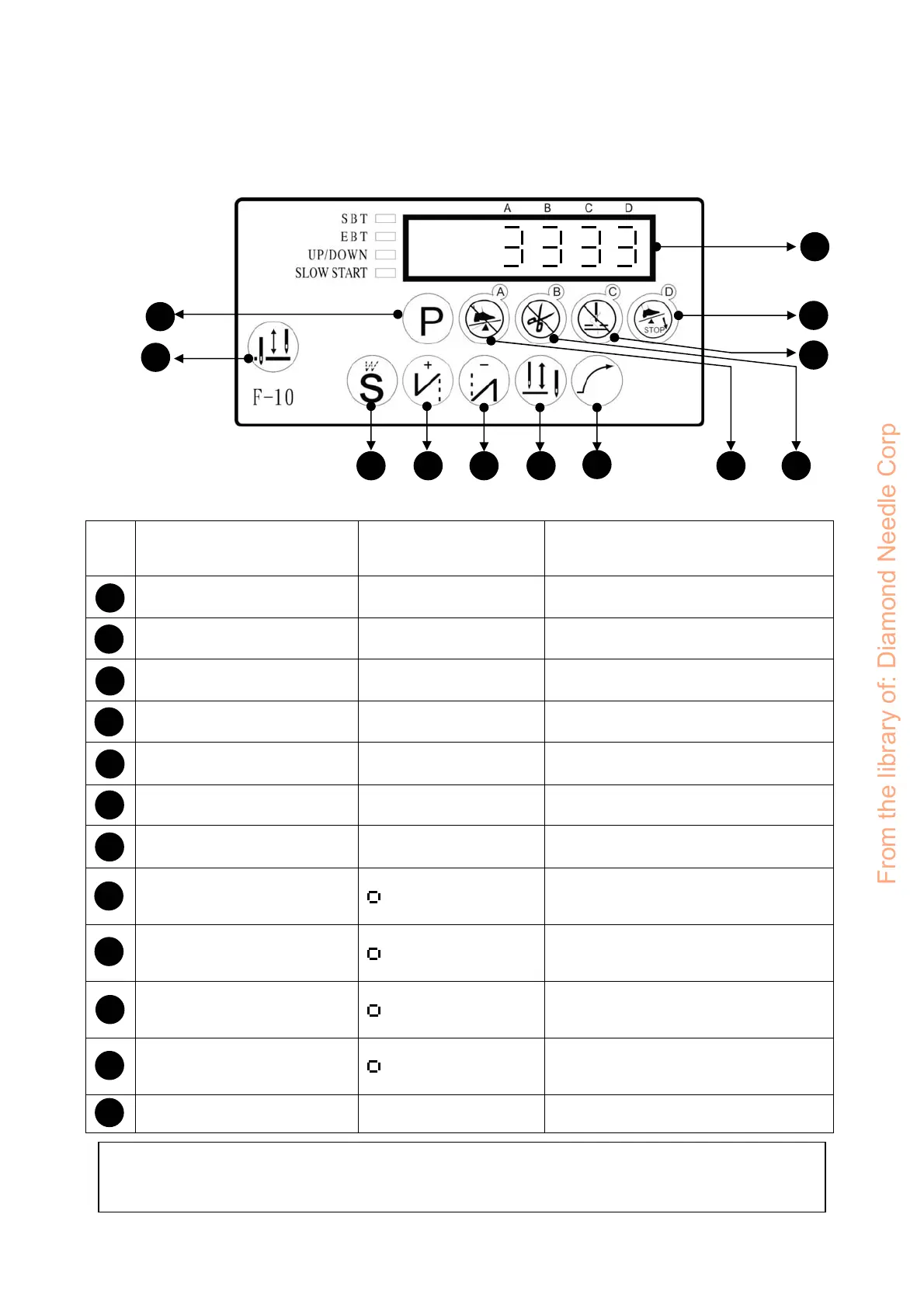

5. Key Functions on Operation Panel / Box
(1). When use with F – 10 mini panel / operation box :
NO.
Function keys for the
lock-stitch machine
Function keys for the
interlock stitch machine
Function keys under parameter mode
Enter the parameter area Enter the parameter area Also act as parameter increment key
Needle up Needle up Invalid
Free sewing / Bar tacking
/ Constant stitch sewing
Invalid
Enter parameter value area / parameter
value saving key
Start back tacking
ON / OFF
Invalid Parameter increment key
End back tacking
ON / OFF
Invalid Parameter decrement key
Needle up / down
when motor stop
Needle up / down
When motor stop
Invalid
Slow start
ON / OFF
Slow start
ON / OFF
Invalid
Number of stitches of A section
(ranged in 0 ~ 15 stitch)
Cancel half heeling back
: means half heeling
back invalid
Parameter / value selection key
Number of stitches of B section
(ranged in 0 ~ 15 stitch)
Cancel trimmer
: means trimmer
function invalid
Parameter / value selection key
Number of stitches of C section
(ranged in 0 ~ 15 stitch)
Cancel wiper
: means wiper
function invalid
Parameter / value selection key
Number of stitches of D section
(ranged in 0 ~ 15 stitch)
Start constant stitch sewing
: mean start constant
stitch function valid.
Parameter / value selection key
Motor rotation icon /
Number of stitches display
Motor rotation icon /
Special function display
Parameter display
1
2
3
4
5
6
7
8
9
10
11
12
NOTE : When #8~#11 define as special function key, the parameter [134. KLK]
must set at ON.
1
2
3
7
654 8 9
10
11
12
