Dux 21ENB5N - Bathroom Controller (ECB1 D)

Owner's Guide
10
Part: XXXXX Rev XX
Display
Priority Button
Display
Burner on Indicator
Bath Fill Temperature Indicator
Priority Indicator
Error Code Bath Fill Volume setting
Bath Fill Temperature setting
Temperature setting
Setting Buttons
Operation Button
Bath Fill Button
Call Button
BATHROOM
ECB1D
Bathroom Controller (ECB1D) <Optional>
What is actually displayed depends on how the water heater is set.
To sound alarm at all
remote controls. ( p.21)
To transfer control from
another remote.
( p.16)
When this indicator is lit,
the hot water temperature
can be set. ( p.16)
A number will flash if
a failure occurs.
( p.28)
When this indicator is lit,
bath fill temperature is
displayed.
( p.18 -20)
When burning, the
indicator is lit.
For setting the hot
water temperature
( p.14 -15)
For other settings.
For turning the water
heater on or off.
To activate Bath Fill.
To set Bath Fill
temperature.
( p.18 -20)
* Before use, remove the protective sheet from the remote controller surface.
( p.18 - 20)
(Eg.: 40°C)
(Eg.: 40°C)

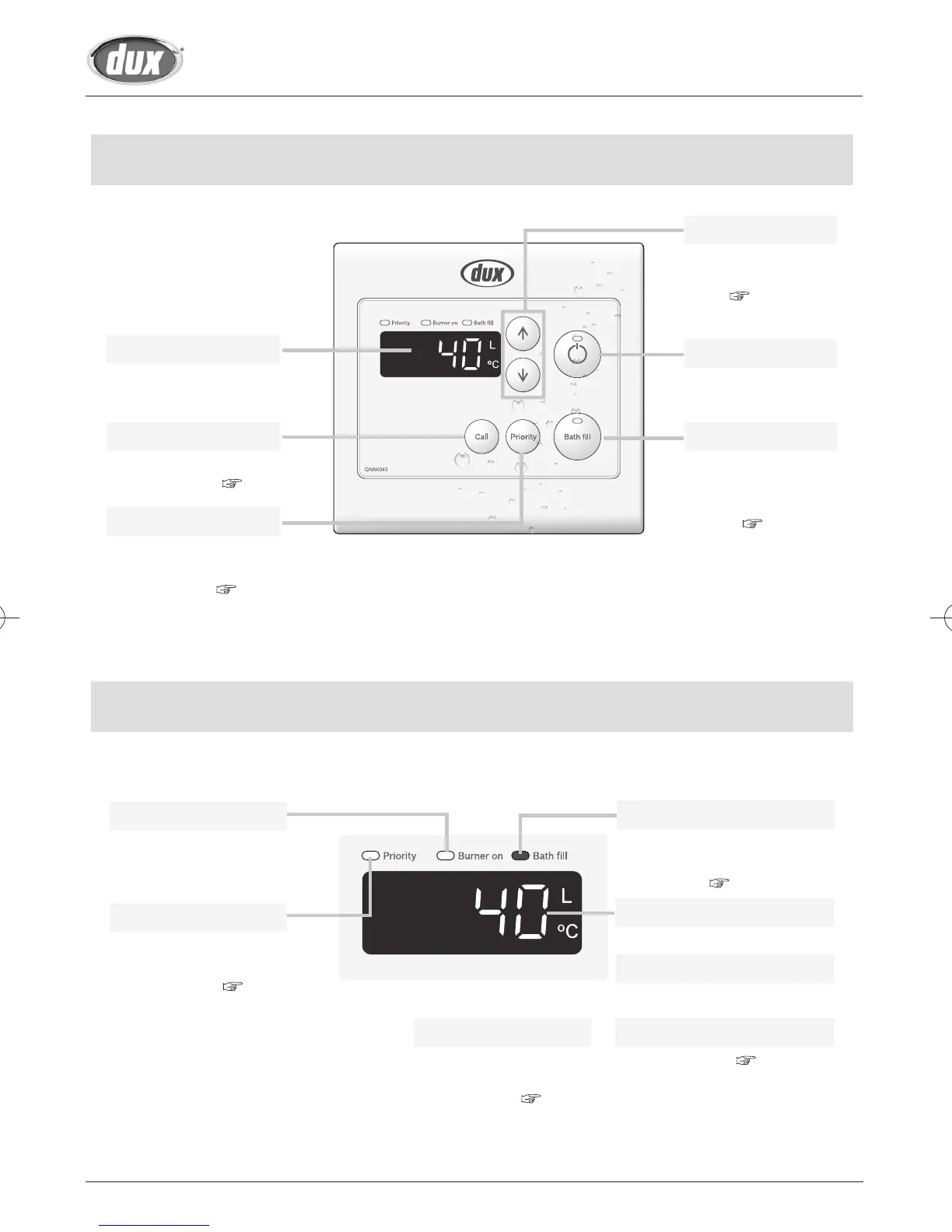

The illustration below shows the remote controller display.
What is actually displayed depends on how the water heater is set.
