Dux 21ENB5N - Names and Functions of Controllers; Main Controller (ECM1 D)

Owner's Guide
9
Part: XXXXX Rev XX
Display
Bath Fill Volume Button
Display
Burner on Indicator
Bath Fill Temperature Indicator
Priority Indicator
Error Code Clock Bath Fill Volume setting
Bath Fill Temperature setting
Temperature setting
Setting Buttons
Operation Button
Bath Fill Button
Time Set Button

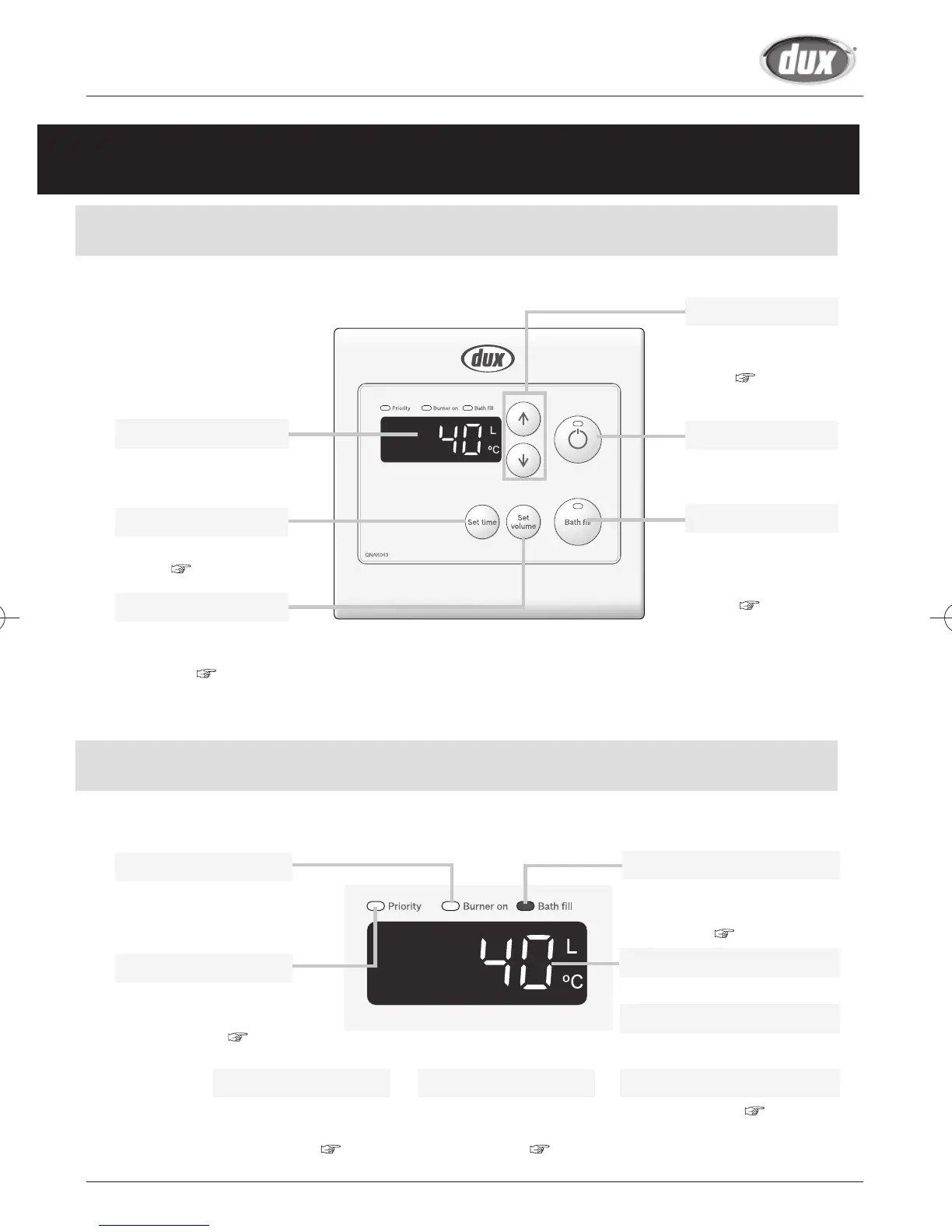

Names and Functions of Controllers
Main Controller (ECM1D) <Optional>
MAIN
ECM1D
What is actually displayed depends on how the water heater is set.
To set or lndicate Time
of day. (
p.13)
For setting the amount
of water that is delivered.
( p.18 -20)
When this indicator is lit,
the hot water temperature
can be set. ( p.16)
A number will flash if
a failure occurs.
( p.28)
When Time Set button
is pushed, the clock is
displayed. ( p.13)
When this indicator is lit,
bath fill temperature is
displayed.
( p.18 -20)
When burning, the
indicator is lit.
For setting the hot
water temperature
( p.14-15)
For other settings.
For turning the water
heater on or off.
To activate Bath Fill.
To set Bath Fill
temperature.
( p.18 -20)
* Before use, remove the protective sheet from the remote controller surface.
The illustration below shows the remote controller display.
What is actually displayed depends on how the water heater is set.
( p.18 - 20)
(Eg.: 40°C)
(Eg.: 40°C)
