Electric Boosted Solar
10
H3163 025247 Rev. C
Installer’s Guide
For Both Metal and Tiled Roofs

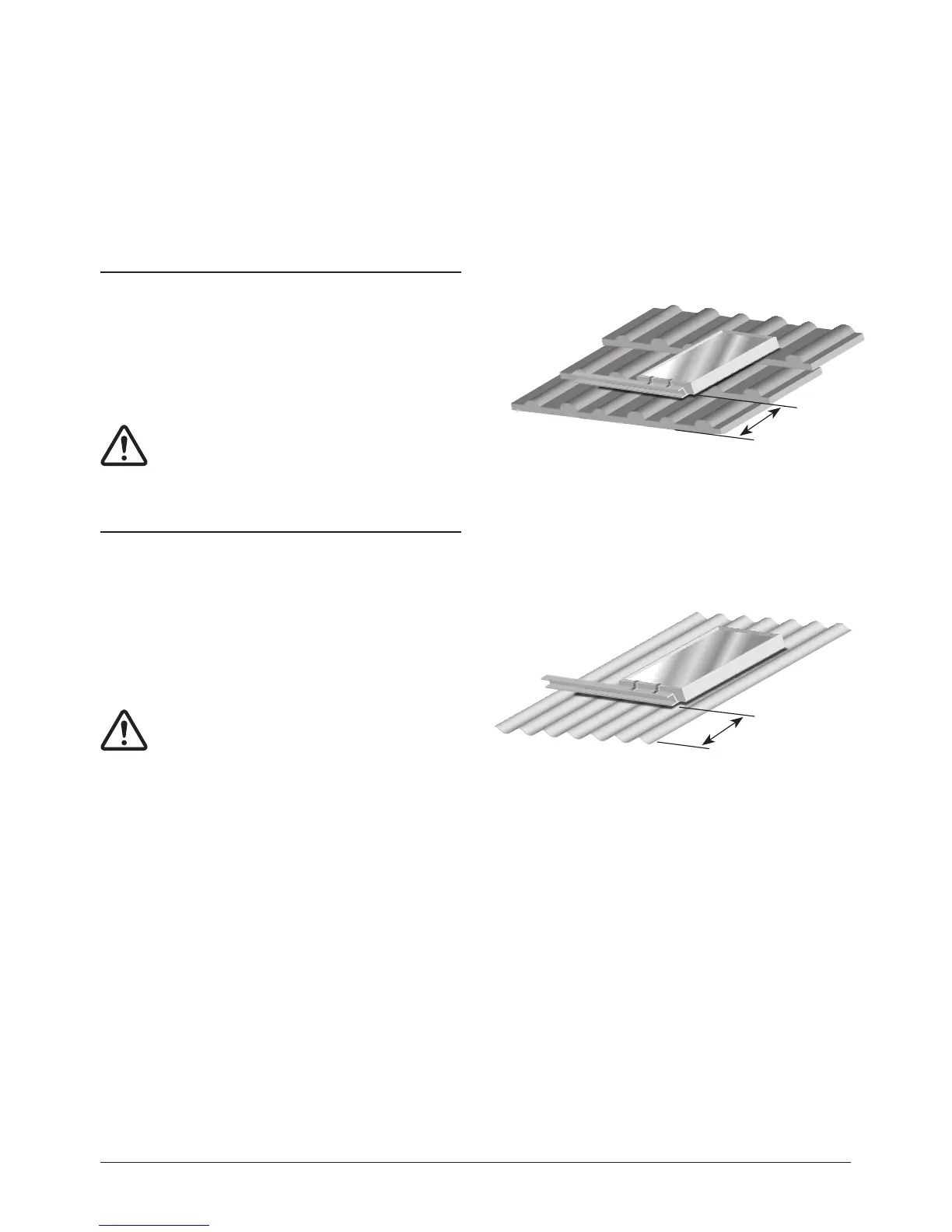

• Locate the lower mounting rail a
minimum of 500mm distance from
the gutter, or greater if roof allows.
Note: Ensure that the rail is
parallel with the gutter.
For Metal Roofs Only
• Fix roong screws through the
mounting straps on both sides,
using rubber grommets to prevent
corrosion.
Note: A minimum of 3 roong
screws of 40mm length must
be used to x the collector
strap to the truss.
• Ensure that the rail is parallel with the
gutter.
500mm
or
greater
500mm
or
greater
To Next Page
