Electric Boosted Solar
6
H3163 025247 Rev. C
Installer’s Guide
Critical: Due to the high
temperature imposed by solar
heated water, all solar system
pipes and ttings must be DR
brass and copper, including
collector compression ttings
(as supplied). No plastic pipes
or ttings.
• Flow and return lines must be
installed as direct as possible
between tank and collector.
• Pipes must be fully insulated with
UV stabilized insulation suitable for
solar working temperatures. We
recommend Armaex DuoSolar /
Solar insulation, minimum 13mm
thick (refer to local regulations).
Note: Warranty will be void
if this minimum insulation
requirement is not used.
• It is critical to stop any chance of an
air lock developing, so ensure that:
– no pipework is higher than the
automatic air vent valve

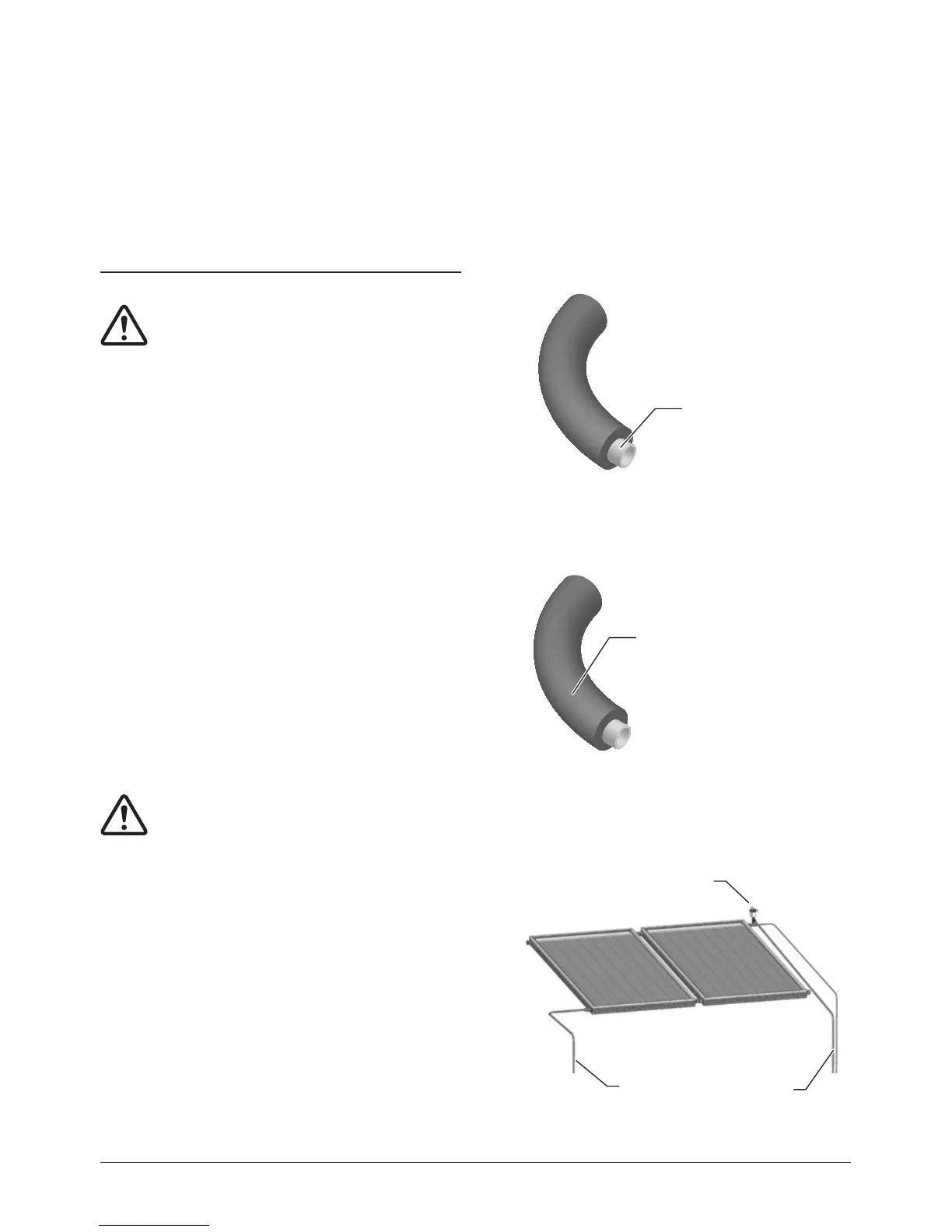

Pipes must be DR
brass and copper.
Refer to AS/NZS
3500.4.
insulated with UV
stabilized insulation
suitable for solar working
temperatures, minimum
13mm thick (refer to local
regulations)
Pipes must have no
high points that allow
air to be trapped
No pipes can be higher than
the air bleed valve
