Dux 2F136S - Temperature Sensor

Installer’s Guide
Electric Boosted Solar
18
H3163 025247 Rev. C



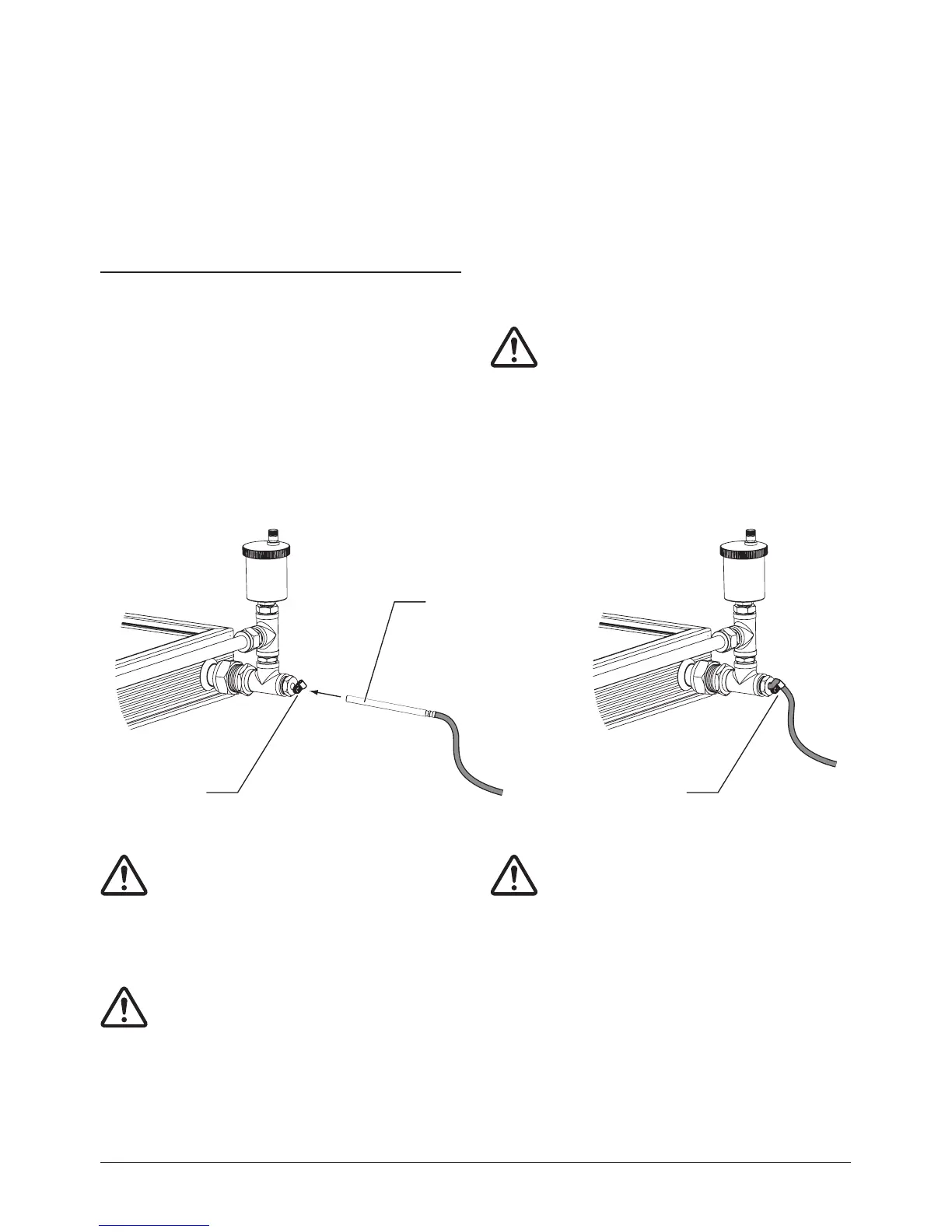

• Insert the end of the collector
temperature sensor (supplied in
collector rail kit) into the sensor dry
well.
• The sensor must be fully inserted
and touch the end of the thermowell.
• Firmly secure the sensor cable using
the cable securing clip.
Cable
securing clip
Collector
temperature
sensor
Sensor secured
by clip
Warning: Extreme care must
be taken to not damage the
sensor by pulling on collector
temperature sensor.
Warning: Install the sensor
cable such that it does not
touch the roong material
surface.
Warning: Conceal all
temperature sensor cables
in the roof cavity so that they
are not exposed to sunlight or
heat.
Warning: The collector sensor
cable is a silicon rubber that
may require additional conduit
protection in extreme UV
radiation conditions.
