Dux 2F136S - Rough in Diagram

Electric Boosted Solar
1
H3163 025247 Rev. C

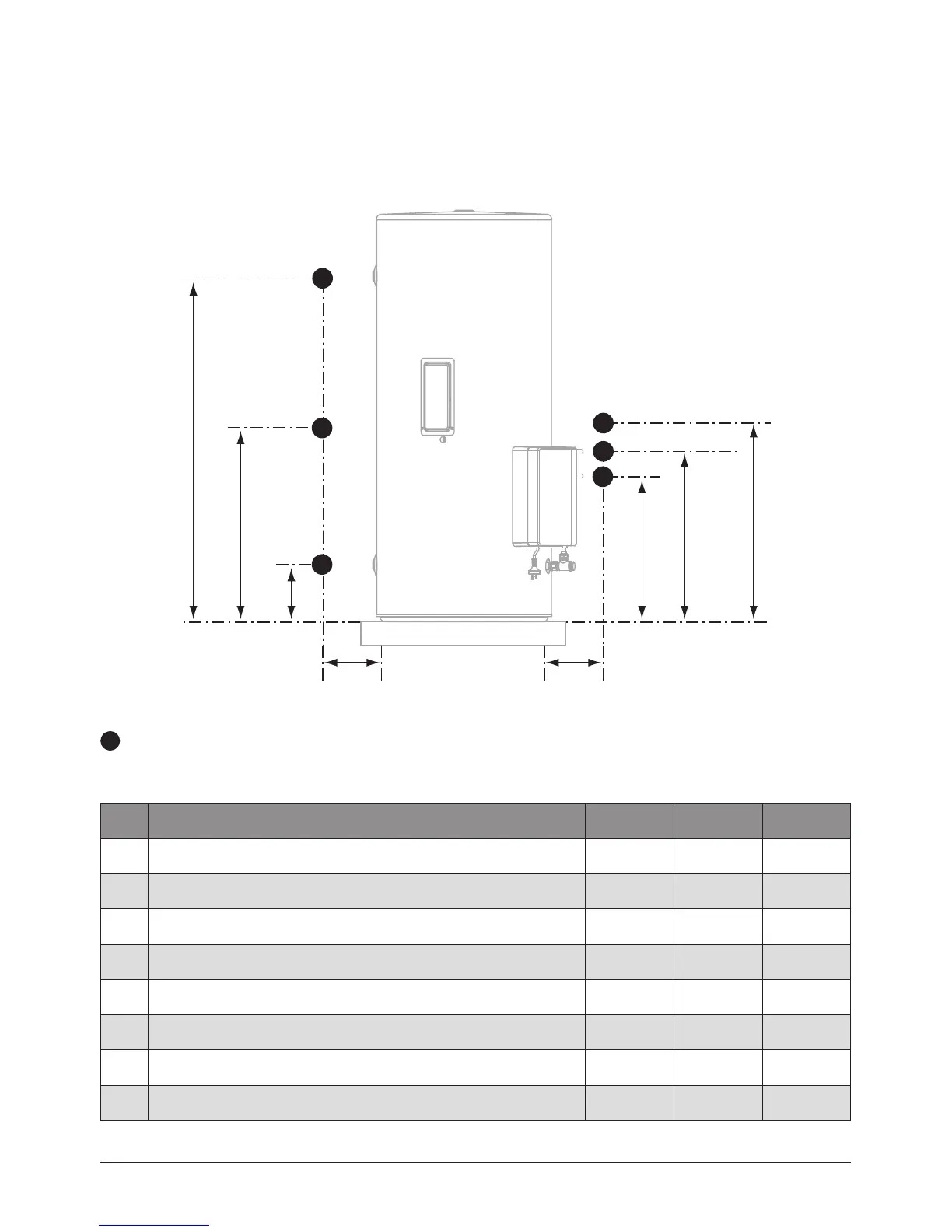

Rough In Diagram
Approximate location of pipework. A tolerance of 25mm is acceptable to dimensions shown in table below.
Note: Ensure pipes protrude horizontally from wall, and leave enough length of pipe to allow easy
connections.
250 L 315 L 400 L
Tank Height 1444 1754 1704
Overall diameter 617 617 705
A Hot water outlet 1211 1521 1445
B Tempered water outlet (mid-way between A and D) 624 779 742
C Flow to solar collectors 507 507 531
D Cold water inlet 195 195 219
E Drain to waste 592 592 616
F Return from solar collectors 628 838 642
100
A
B
C
D
E
F
Hot
Drain to Waste
Flow
Cold
Tempering
Valve
100
Return
