Electric Boosted Solar
13
H3163 025247 Rev. C
Installer’s Guide
• Secure the collectors to the
mounting rail with the Z brackets,
screws, nuts and bolts provided with
the water heater.
• Repeat the process for the second
collector.
Note: Ensure this is done with
full consideration to OH&S
regulations. Care should be
taken.
• Now position the top mounting rail and
repeat the above steps for that rail.
• Join the top connections with the
brass compression ttings supplied.

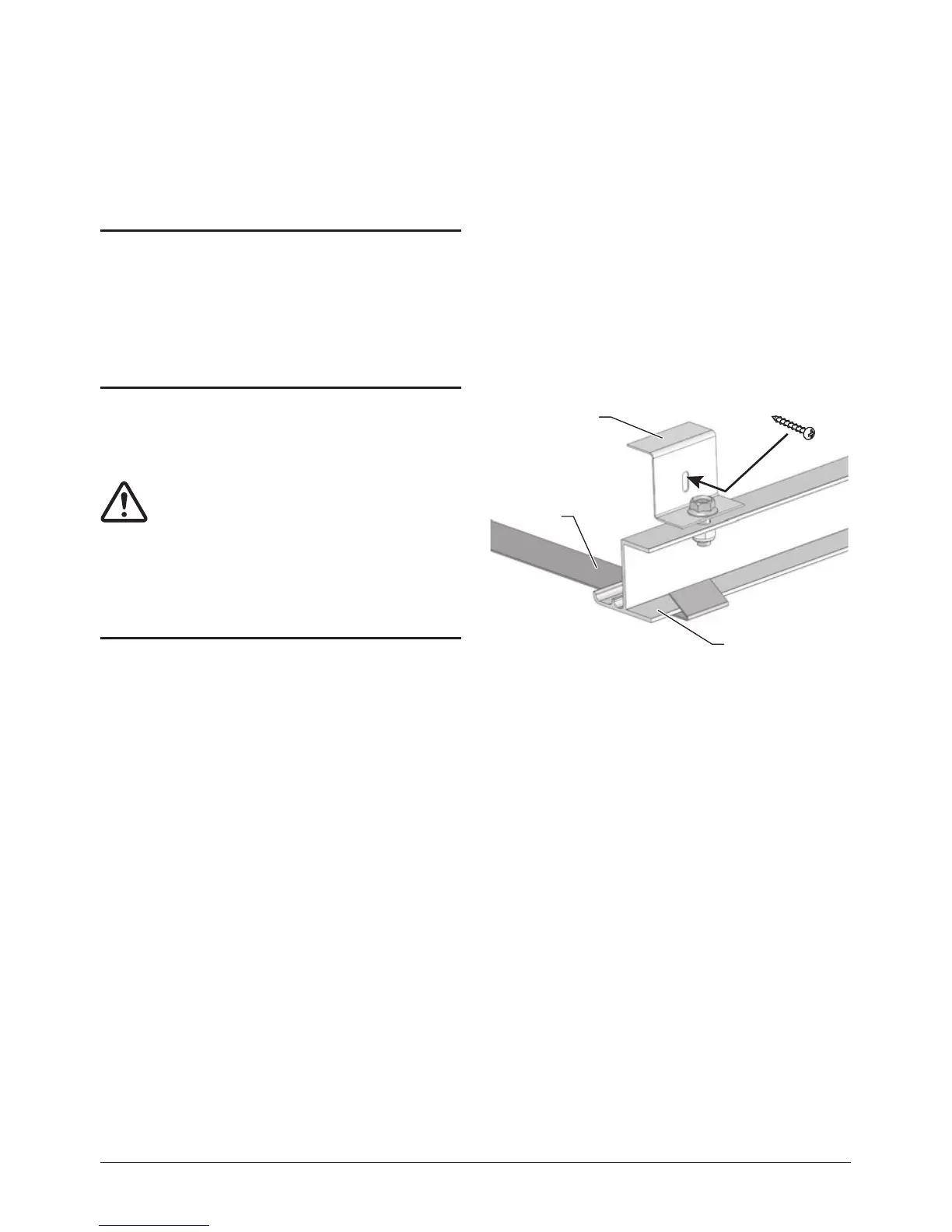

Collector
strap
Collector
clamp bracket
Collector
mounting
rail
24mm self tapping
galvanised screw
To Next Page
