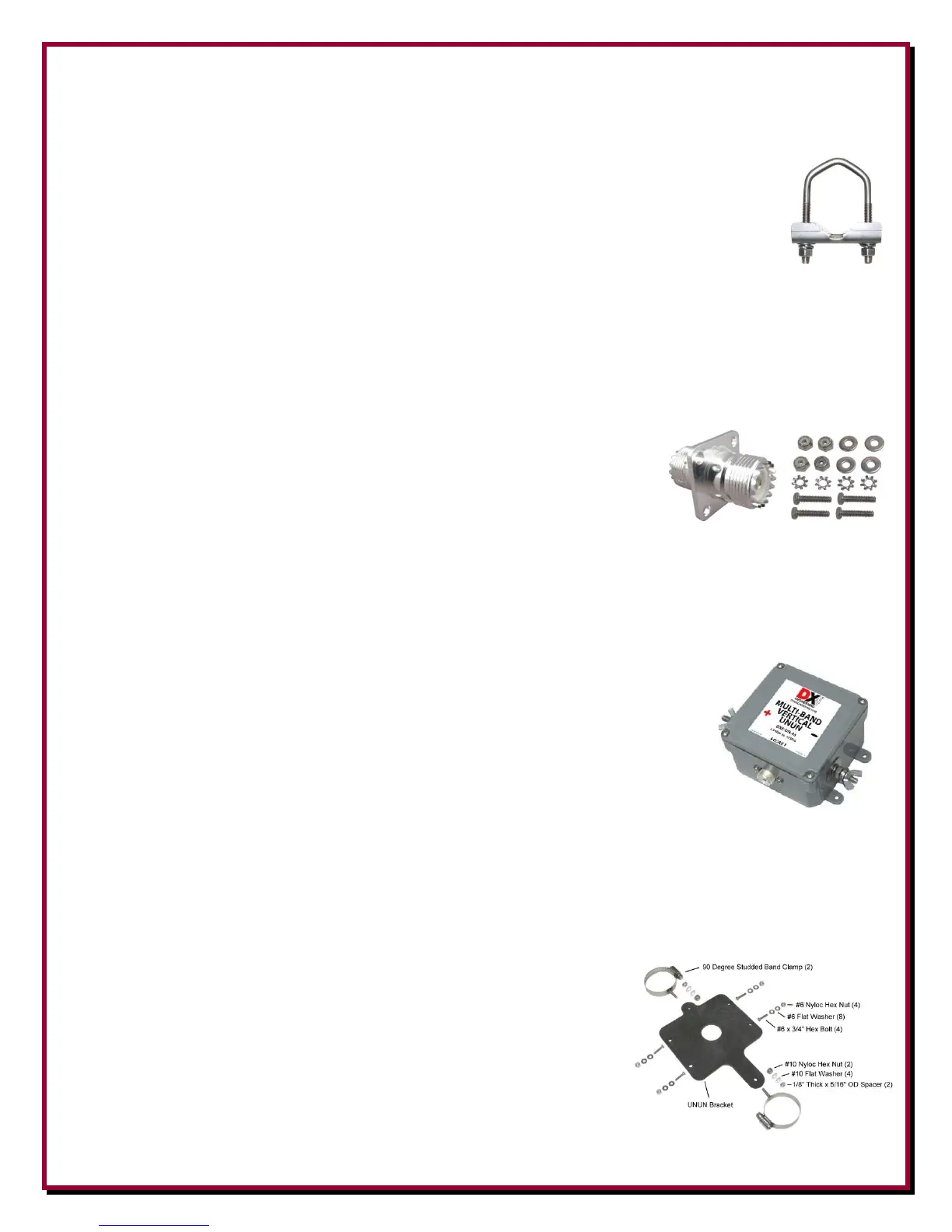

DXE-SSVC-2P - Stainless Steel V-Clamp for steel pipe, 2 inch V-bolt
This V-Clamp is made in one size that fits Steel tubing or pipe from 1" to 2'' OD as used in antenna construction. The supplied V-bolt
is long enough to attach tubing to thick plates and is made with anti-corrosive properties. The special Stainless Steel saddle has
serrated teeth will clamp to the pipe securely by biting into the surface. For this reason, it is not recommended for
softer aluminum tubing or pipe. Ideal for fastening a radial plate and antenna mounting to a steel pipe.
 Used to clamp 1 to 2'' (OD) steel tubing or pipe
 Designed for attachments that don't require resistance to torque
 V-bolt and saddle made from high-strength 18-8* stainless steel
*The use of an anti-seize compound is HIGHLY recommended to achieve proper torque and prevent galling.
DXE-UHF-FDFB-KIT - Silver Plated Female SecureMount
™
Bulkhead Connector - Dual SO-239
The DX Engineering Silver Plated Female SecureMount
™
Bulkhead Connector is a high-quality silver-plated connector that provides
a positive, permanently secure connection for your coaxial cable. The two-sided SO-239 female connector has a superior silver-
plated body with silver contacts to ensure the best performance for any application. The SecureMount
™
flange uses four mounting
screws. Once mounted to any panel or bulkhead, the flanged bulkhead connector will provide the best possible connection and stay
that way. Unlike many common nickel-plated bulkhead connectors, our silver-plated SecureMount bulkhead connectors have no air
space within their midpoint. This area of solid and superior PTFE dielectric between the center conductor and body maintains
constant impedance and ultimate performance. Includes Stainless Steel Hardware Kit for mounting
 Description: Bulkhead mount, UHF jack to UHF jack (SO-239)
 Body Material: Brass
 Body Plating: Silver
 Body Style: Flanged Dual Female SO-239
 Contact Plating: Silver
 Frequency Range: DC - 500 MHz
 Dielectric: PTFE
 Impedance: 50 ohms
DXE-UN-43 - UNUN - 4:1, High Power, for use with Non-Resonant Verticals
DX Engineering high power transmission line transformers with Maxi-Core
®
Technology allow your antenna to
perform to its full potential and reduces the stresses on your equipment more efficiently than similar competitive
products. This UNUN is specifically designed for application with 43-foot non-resonant multi-
band antennas - assuring the best efficiency from your antenna and transmission
line/tuner installation. This results in minimizing the additional transmission lines losses
caused by SWR. It can be added to any existing 43-foot antenna installation, or used to replace
an older competitive UNUN for a performance increase.
 1.8 – 30 MHz operating range to cover popular amateur bands.
 Handles rated power with minimal energy loss so there is no thermal related failure.
 Ratio - 4:1
 Impedance: 200 ohms to 50 ohms - optimized for 43 ft. verticals
 Power Level – 2 KW/5 KW PEP
 Weatherproof NEMA enclosure
 Silver PTFE SO-239 input connector
 2-3/8" x 4" x 4" inches (HxWxL)
DXE-UN-BRKT - UNUN Mounting Kit for Multi-Band HF Verticals (patented)
This mounting kit allows you to mount a DXE-UN-43 UNUN at the base of any 43-foot Multi-Band vertical antenna.
The patented (US Patent No. D597,086) mounting plate may be attached to any 2"
OD aluminum tubing element with the studded element clamps supplied. The
UNUN is isolated by its plastic weather proof case, providing the simplest add-on
installation. Works with the DXE-UN-43 UNUN, or similar competitive UNUNs
and Baluns which use the same size weatherproof NEMA case.
Kit includes:
 High Strength Insulated Mounting Plate
 Custom Studded Stainless Steel Element Clamps
 Stainless steel mounting hardware
