ASSEMBLY INSTRUCTIONS
CAUTION: Remove both doors before turning the
smoker upside down.

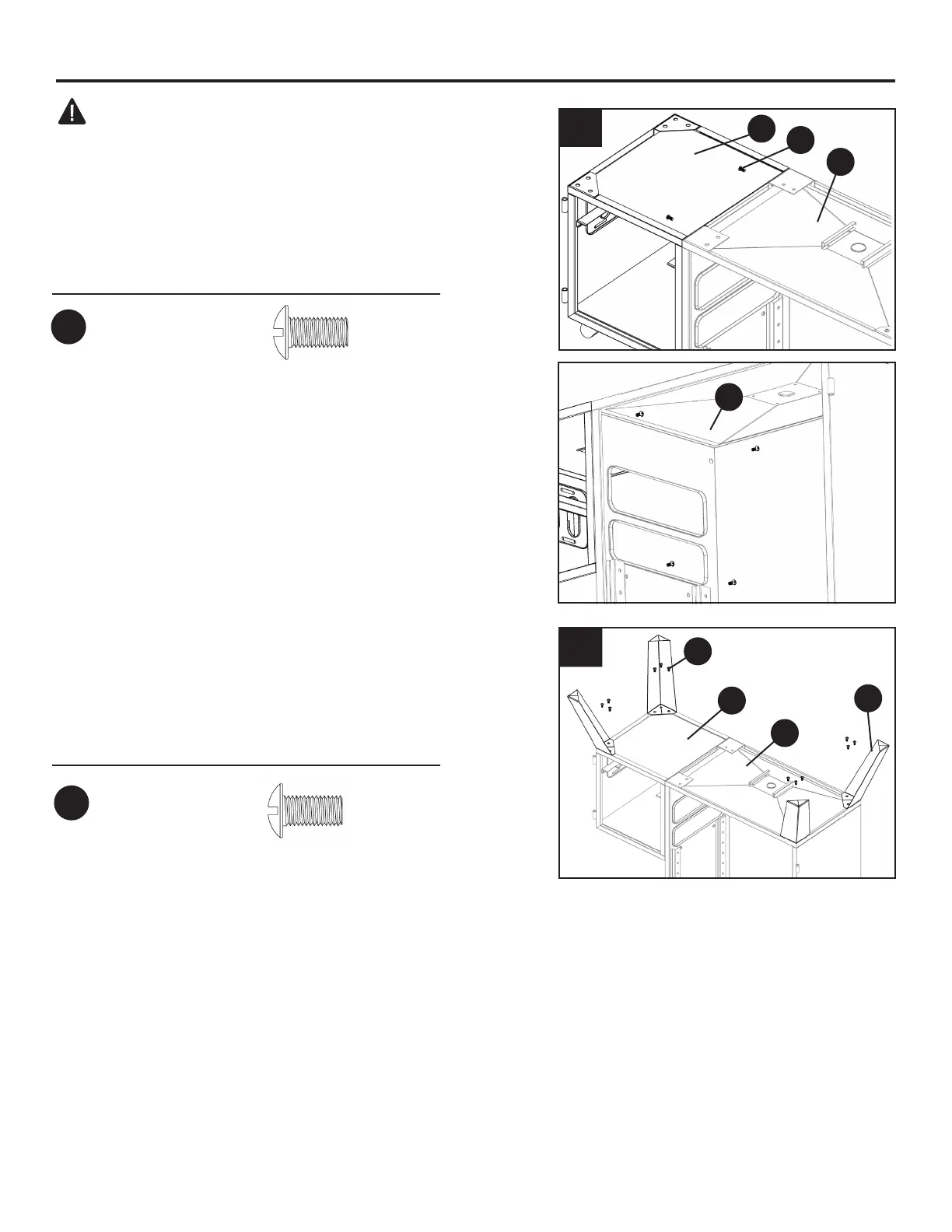

1. With smoker body-right (J) turned upside down,
attach smoker body-left (G) to smoker
body-right (J) using six M6x12 screws (AA).
2. Attach legs (H) to smoker body-left (G) and
smoker body-right (J) using twelve M6x12
screws (AA).
Hardware Used
AA
Hardware Used
M6 x 12mm
Screw
x 6
1
2
AA
J
G
H
J
G
AA
G
AA
M6 x 12mm
Screw
x 12
