ASSEMBLY INSTRUCTIONS

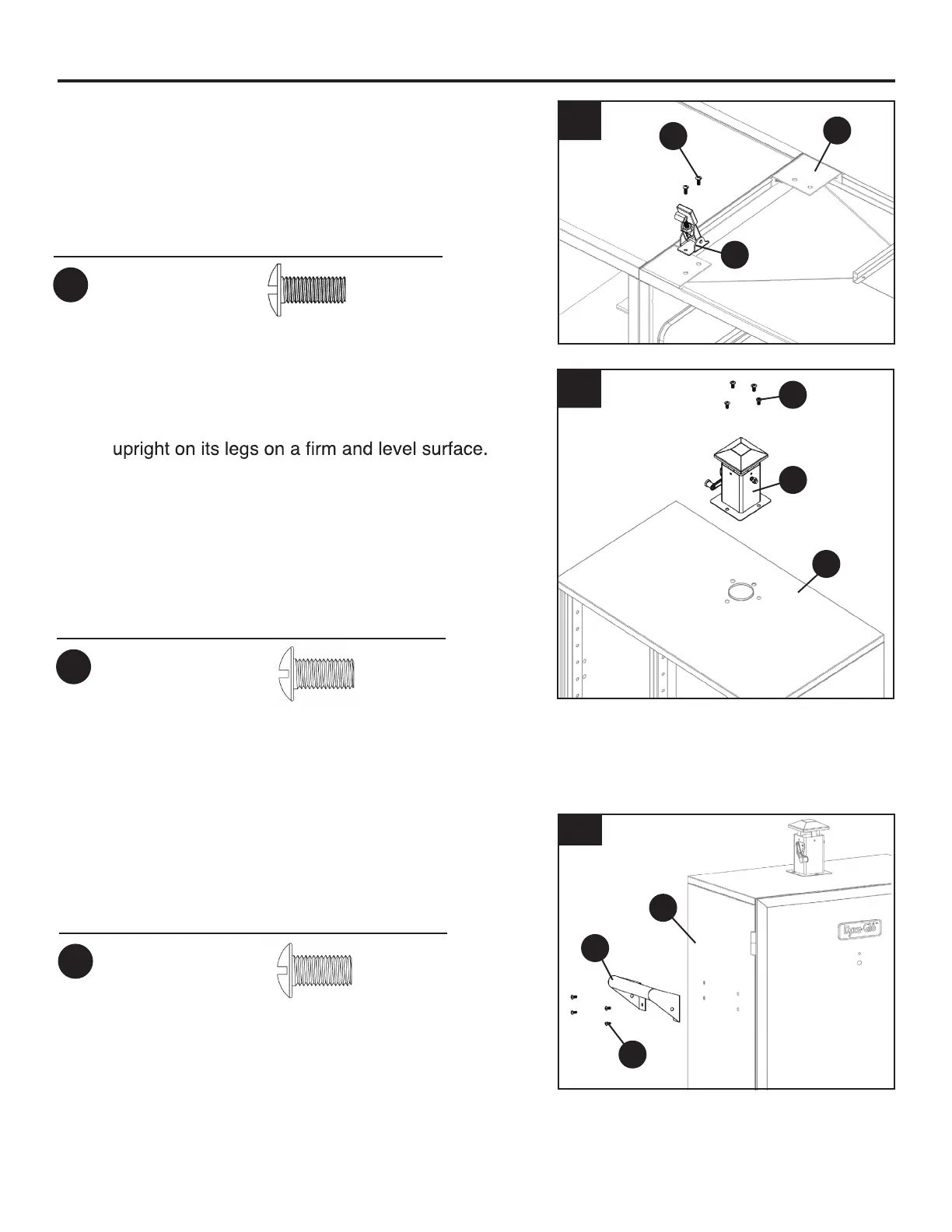

3. Attach door latch (K) to smoker body-left (G)
using two M4x10 screw (BB).
4. CAUTION: This unit is HEAVY! Do not attempt
this step without assistance!
With the assistance of a helper, stand the unit
(Make sure that legs are attached). Position the
square smoke stack (A) with control arm to the
left as shown. Using 4 bolts (AA), attach square
smoke stack (A) to the top of smoker body (G).
Securely tighten with a Phillips screwdriver.
Reattach both doors.
5. Attach lifting handle (B) to smoker body-left (G)
using four M6x12 screw (AA).
B
AA
G
G
A
K
G
BB
AA
3
4
5
Hardware Used
BB
M4 x 10mm
Screw
x 2
Hardware Used
AA
M6 x 12mm
Screw
x 4
Hardware Used
AA
M6 x 12mm
Screw
x 4
