ASSEMBLY INSTRUCTIONS

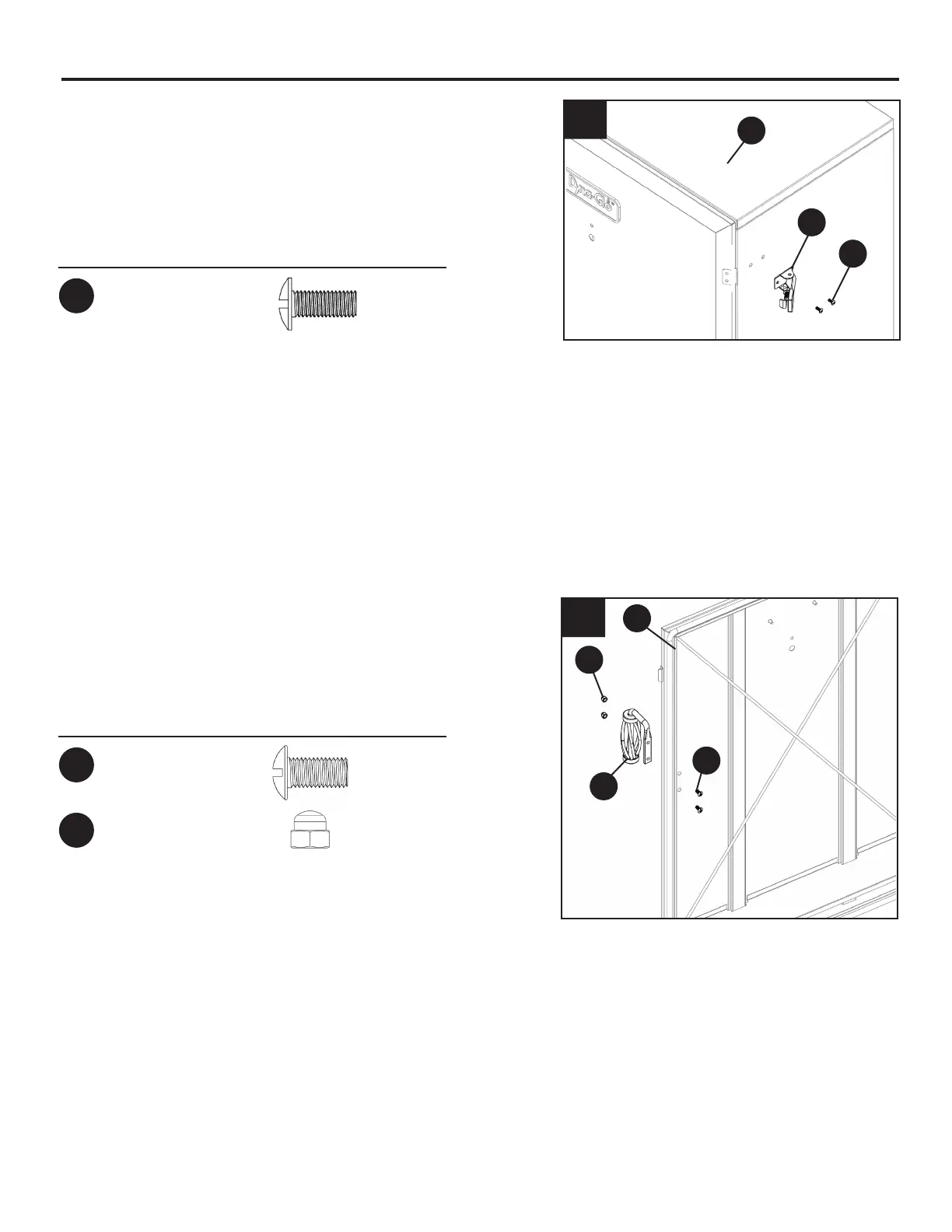

6. Attach door latch (K) to smoker body-left (G)
using two M4x10 screw (BB).
7. Attach door handle (D) to the primary door on the
smoker body-left (G) using two M6x12 screw (AA)
and two M6 nuts (CC).
G
D
G
BB
6
7
Hardware Used
BB
M4 x 10mm
Screw
x 2
AA
CC
Hardware Used
AA
M6 x 12mm
Screw
x 2
CC
M6 Nut
x 2
K
