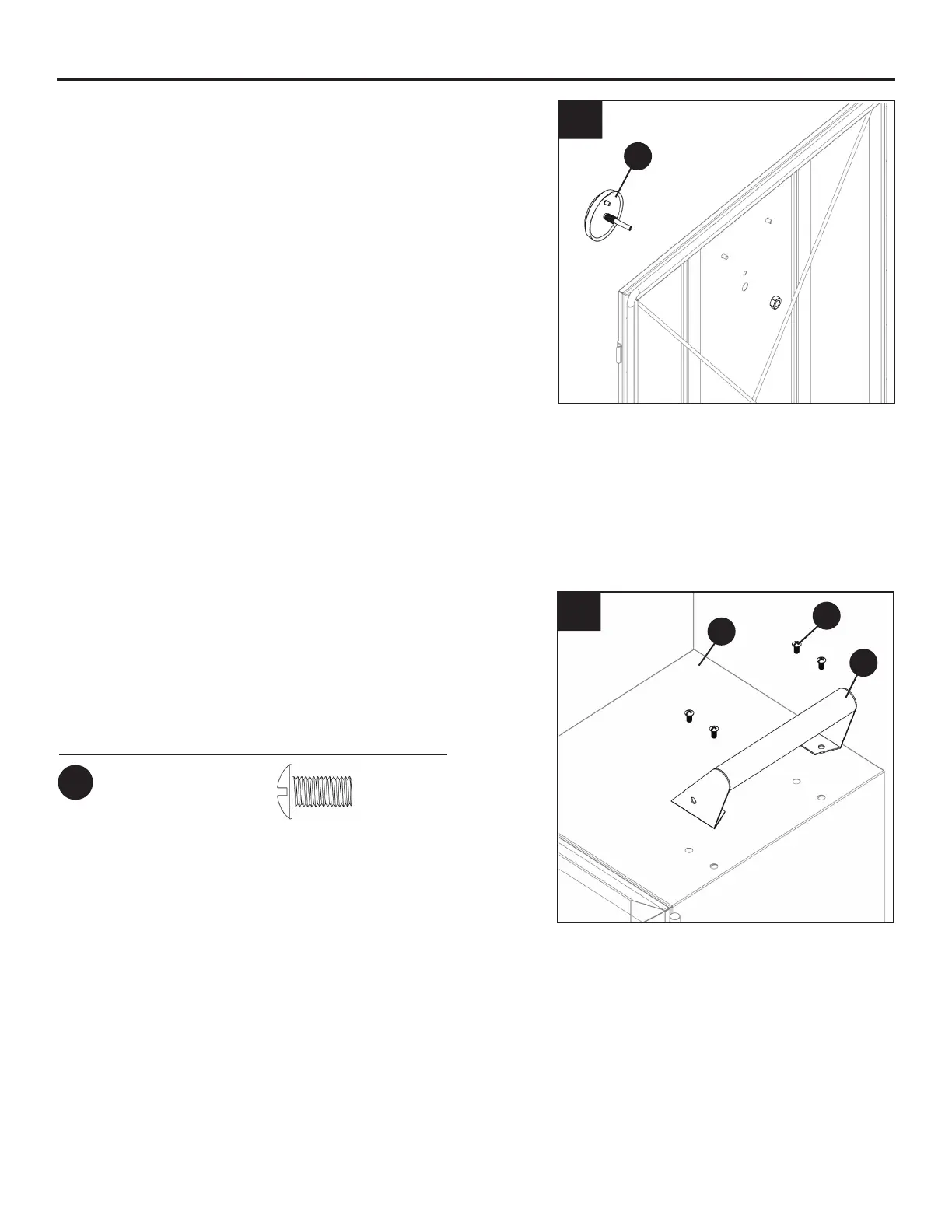

ASSEMBLY INSTRUCTIONS
8. Remove the pre-assembled nut from the
temperature gauge (C). Insert the probe through
hole of the smoker door from the outside. Secure
with nut from inside panel. Tighten with wrench.
9. Attach lifting handle (B) to smoker body-right (J)
using four M6x12 screw (AA).
J
B
C
8
9
Hardware Used
AA
M6 x 12mm
Screw
x 4
AA
