Dyna-Glo DGP321SNP - Assembly Instructions; Attach Casters

7
J
AA
G
L
AA
M6x16
Bolt x4
AA
Hardware Used
L
Wrench
x1
II
Hardware Used
G
I
H
II

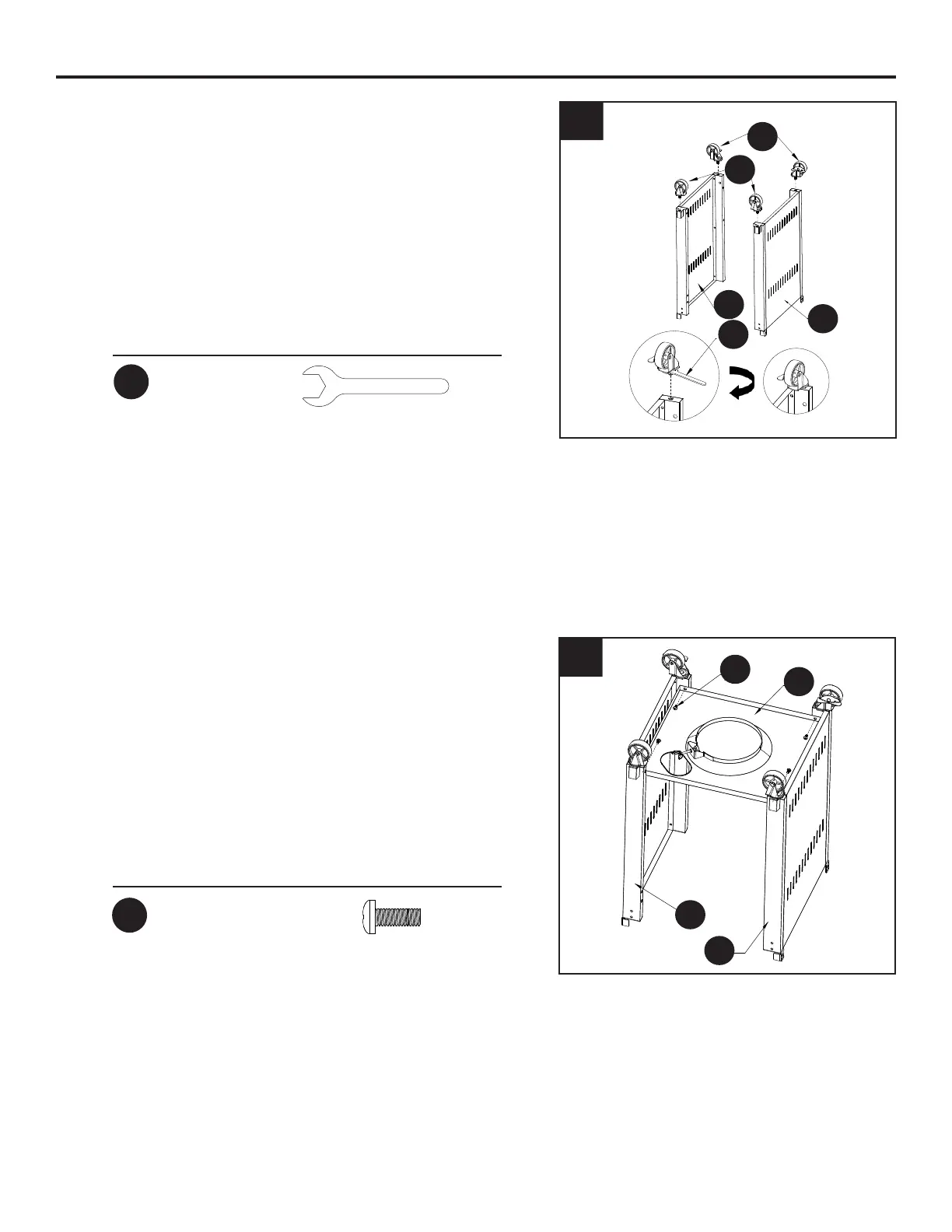

ASSEMBLY INSTRUCTIONS
1. Attach the two locking swivel casters (H) and
the two non-locking swivel casters (I) to the
cart left side panel assembly (L) and the cart
right side panel assembly (G) with wrench (II).
Hardware Used
Wrench
2. Attach the cart left side panel assembly (L) and
the cart right side panel assembly (G) to the
cart bottom panel shelf (J) with four M6x16
bolts (AA).
Do not tighten bolts at this time.
Hardware Used
AA
M6x16 Bolt
x 4
2
II
1
H
I
L
II
G
AA
J
G
L
AA
BB
DD
CC
M6
Plain
Qty. 2
M6
Qty. 2
M6x16
Bolt
Qty. 18
Washer
EE
M6x35
Bolt
Qty. 4
Washer
FF
M6
Wing Nut
Qty. 2
GG
M3x10
Bolt
Qty. 4
HH
M6x12
Flat Bolt
Qty. 8
Shoulder
Bolt
Qty.4
II
Qty. 1
Wrench
Spring
