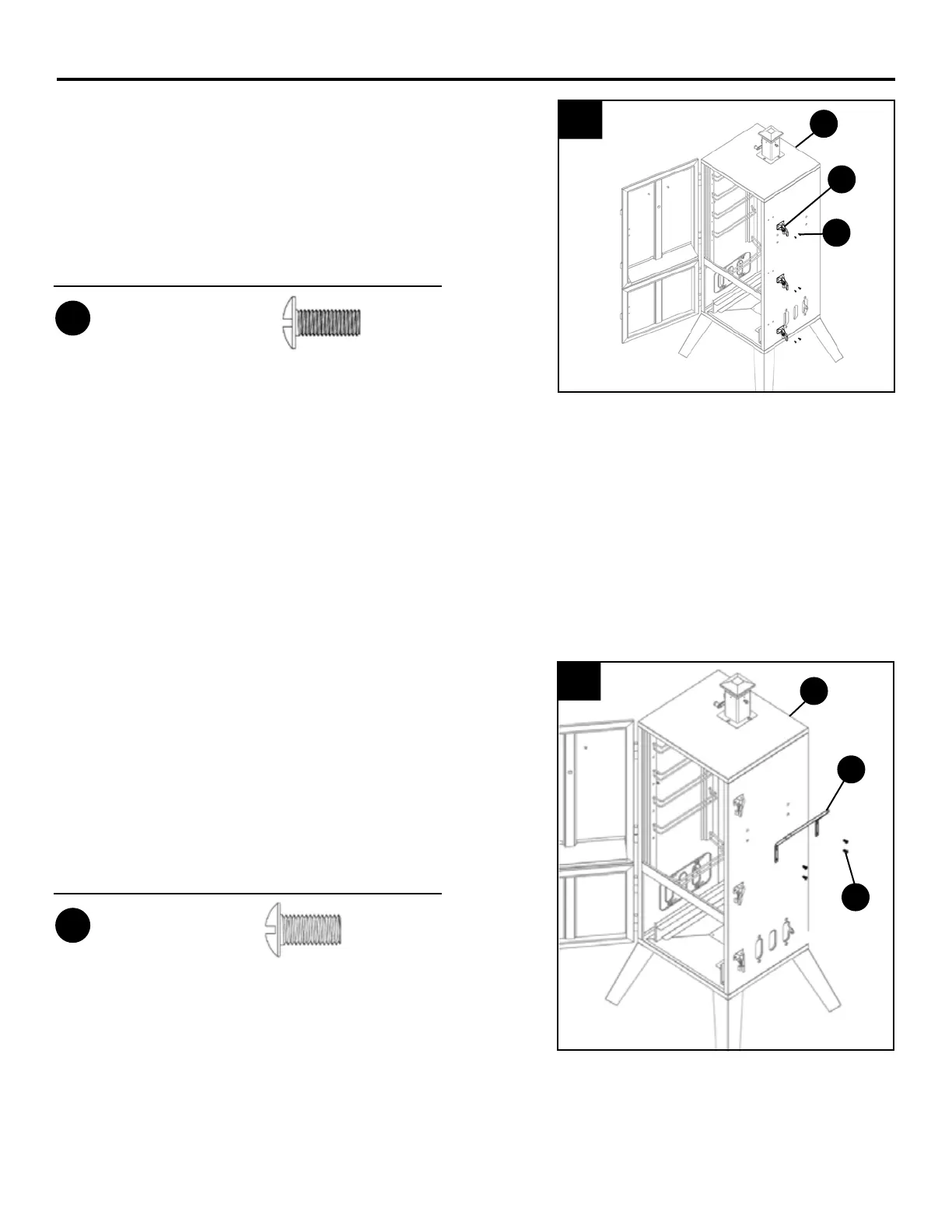

ASSEMBLY INSTRUCTIONS
7. Attach each door latch (J) to smoker
body-right (G) using two M4x10 screws (CC).
8. Attach the lifting handles (B) onto the side of
smoker body (G) using four M6x12 screws (AA).
Repeat on the other side.
B
CC
J
G
7
Hardware Used
G
AA
8
CC
M4 x 10mm
Screw
x 6
Hardware Used
AA
M6 x 12mm
Screw
x 8
