ASSEMBLY INSTRUCTIONS

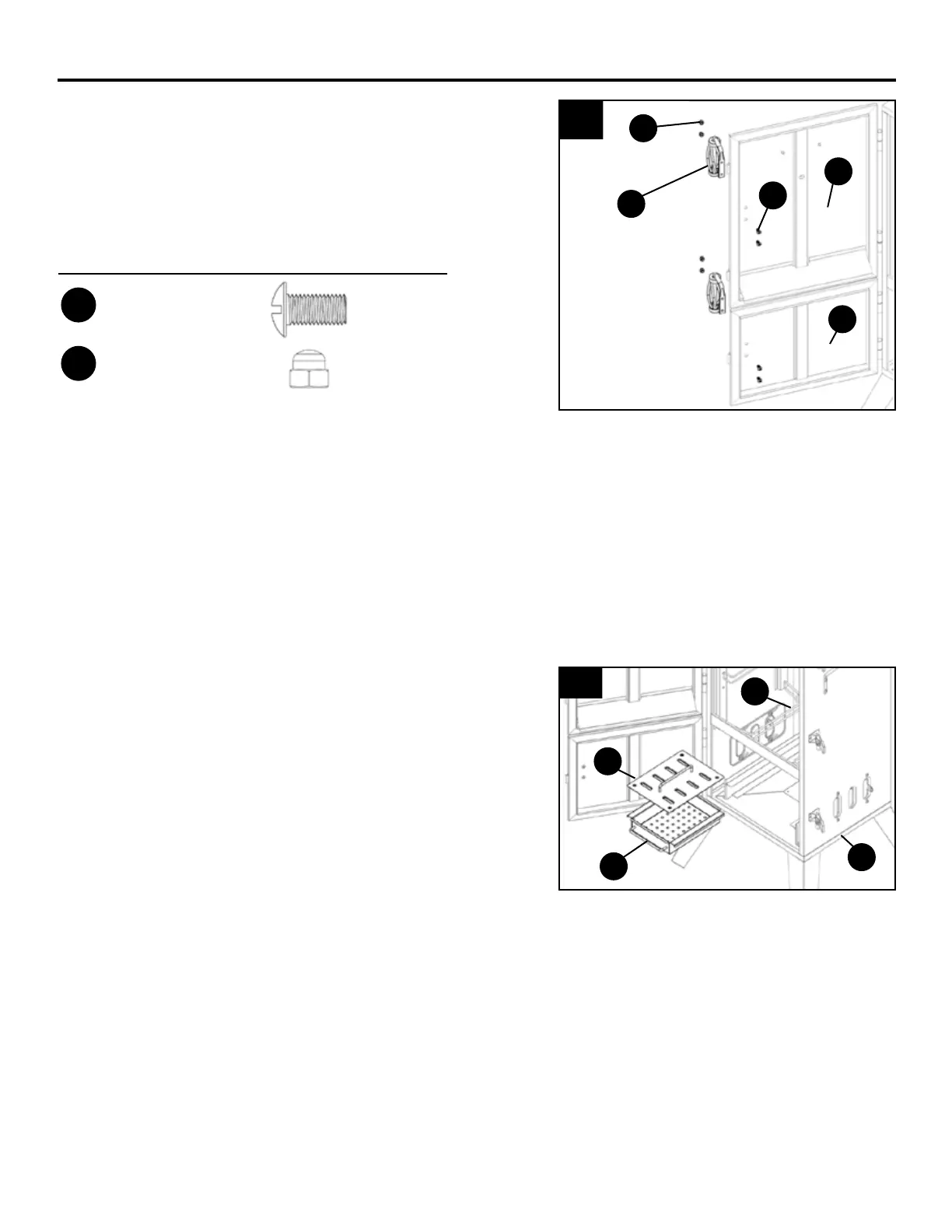

9. Attach door handle (D) to the upper door (P)
using two M6x12 screws (AA) and two
M6 nuts (DD). Repeat this step for the
lower door (Q).
10. Place the wood chip box lid (S) directly onto the
wood chip box (O) and slide the wood chip box
onto the supports (R) located on the inside of the
smoker body (G).
O
S
10
Q
AA
D
9
DD
P
Hardware Used
AA
M6 x 12mm
Screw
x 4
DD
M6 x Nut
x 4
