13CA 251/301 M251EN2
EVERY 10 HOURS OF OPERATION (Daily)
Refuel with diesel fuel up to the lower edge of the filler
pipe daily at the end of operations.
Stop the engine. Ground the refuelling
nozzle by touching it against a non-
insulated part of the roller before refuelling,
and keep the nozzle against the inside of
the filler pipe (1) while filling the tank.
(See the engine manufacturer’s instructions with regard
to quality of diesel fuel.)
Fuel tank, refuelling
WARNING
Check the level and fill the emulsion tank as required.
The emulsion is used only to lubricate the tires. The
pump and filter are located behind the cover adjacent
to the bottom of the tank.
Remember the danger of freezing in the
winter. Empty the tank, pump and leads.
Emulsion Tank (CA 251A)
- Filling
2
1

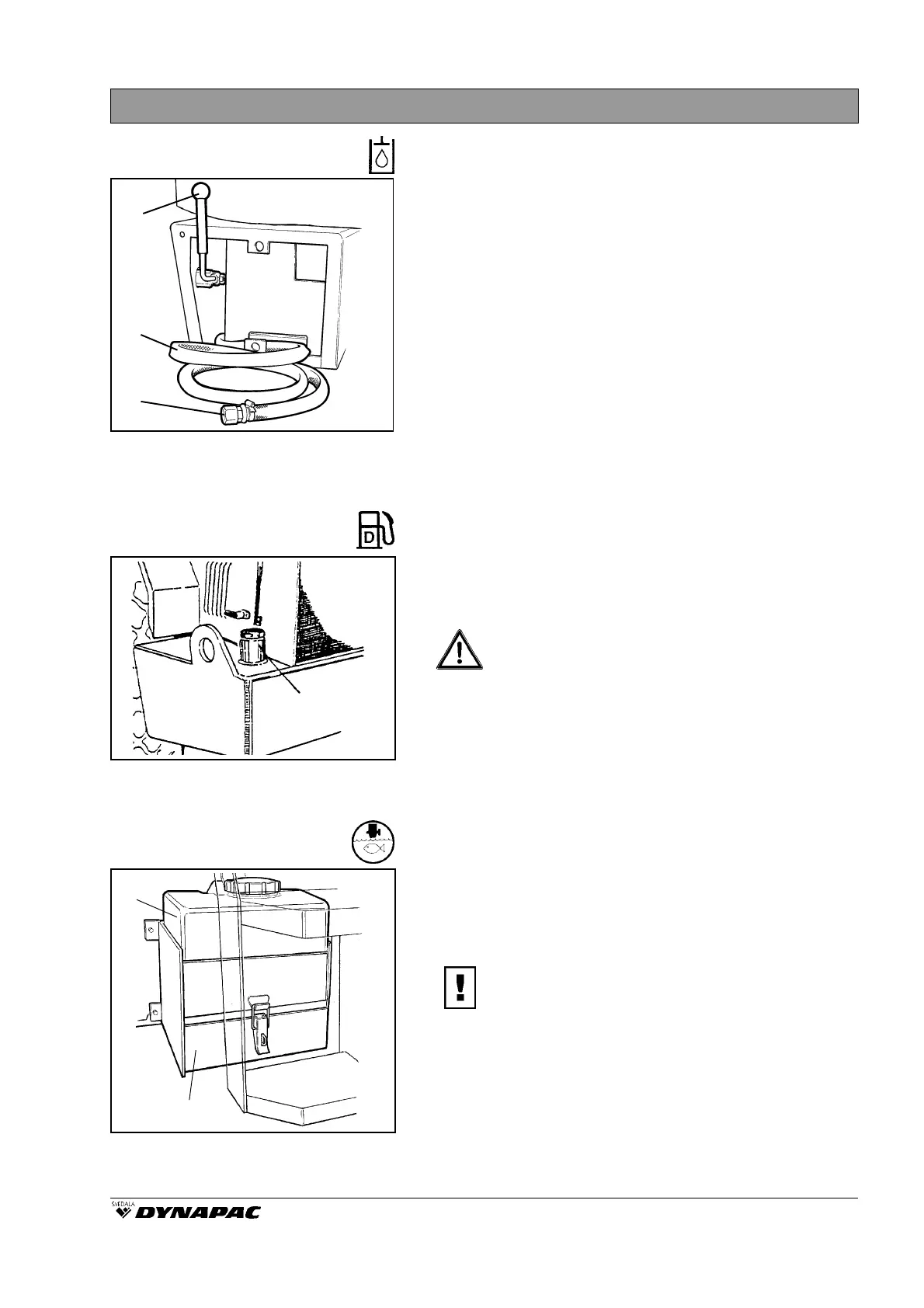

Fig. 13 Left side of frame
1. Emulsion tank
2. Space for pump and filter
Fig. 12 Fuel tank
1. Filler pipe
Hydraulic reservoir, filling
Fig. 11 Battery box
1. Suction hose
2. Protective plug
3. Pump lever
1. Take off the cover on the right side underneath the
operator’s seat.
2. Take out the suction hose (1).
3. Clean the hose and screw off the protective plug (2).
4. Insert the hose in a drum of fresh hydraulic fluid.
5. Fit the pump lever (3), and pump with the lever and
fill the reservoir to the level on the sight glass. The
fluid is pumped via a filter to the reservoir so always
follow this procedure when filling.
3
1
2
CAUTION
1
