12 CA 251/301 M251EN2
EVERY 10 HOURS OF OPERATION (Daily)
2
1
1. Loosen the four fastening bolts on half of the scraper
blade.
2. Set the scraper blade about 20 mm (0.8") from the
drum. Tighten the bolts.
3. Adjust the other three scraper blade sections to the
same gap.

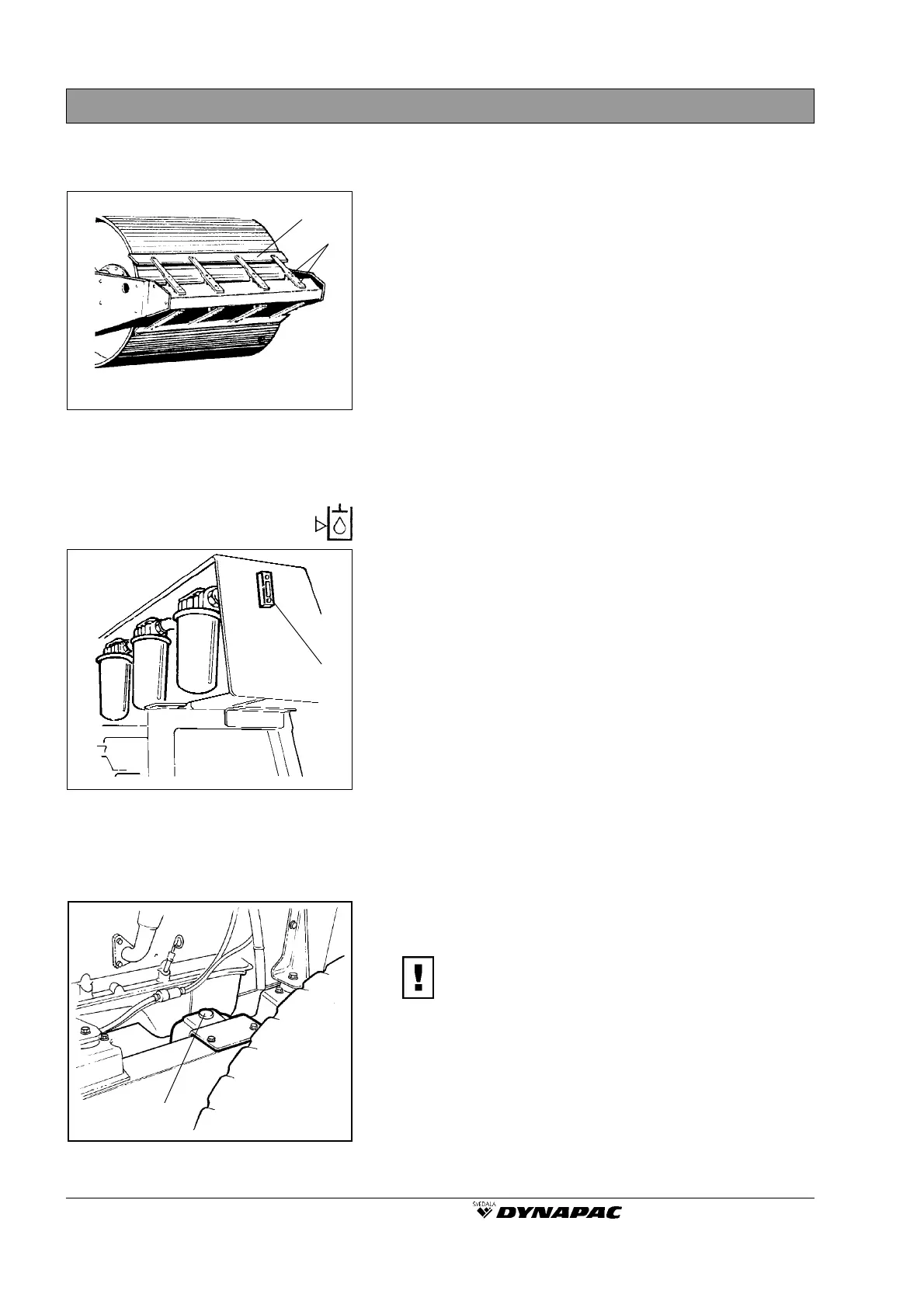

Fig. 8 Front scraper
1. Scraper blade
2. Fastening bolts
Scrapers (CA 301)
- checking, adjustment
1
1. Position the roller on a level surface and check the
sight glass reading (1).
2. Top off with hydraulic fluid, see Lubricant Specifica-
tion on page 3, if the level is 20 mm (0.8") or more
below the upper edge of the glass, or if oil is not
visible in the sight glass.
Fig. 9 Hydraulic reservoir
1. Sight glass
Hydraulic reservoir -
Checking the level
Wind shield liquid
- Check/Top up (Cab)
Fig. 10 Engine compartment
1. Wind shield liquid bottle
Open the right cover of the engine compartment and
top up the wind shield liquid bottle (1).
Remember the danger of freezing in the
winter. Empty the tank, pump and piping.
1
CAUTION
