Dynapac CA 301 - Every 1000 Hours (Six Months)

24 CA 251/301 M251EN2
Drain off sediment and water through the drain plug
located underneath the fuel tank.
Be very careful when draining not to drop the
plug or allow fuel to run out.
Draining should be done after the roller has stood still
for a long period, eg, overnight.
The roller should preferably have been standing on a
slope with the drain plug down low, which will allow
sediment and water to collect near the plug.
Drain as follows:
1. Hold a can underneath the plug (1).
2. Loosen the plug and allow all sediment and water to
run out until pure diesel fuel starts to pour. Tighten
the plug.

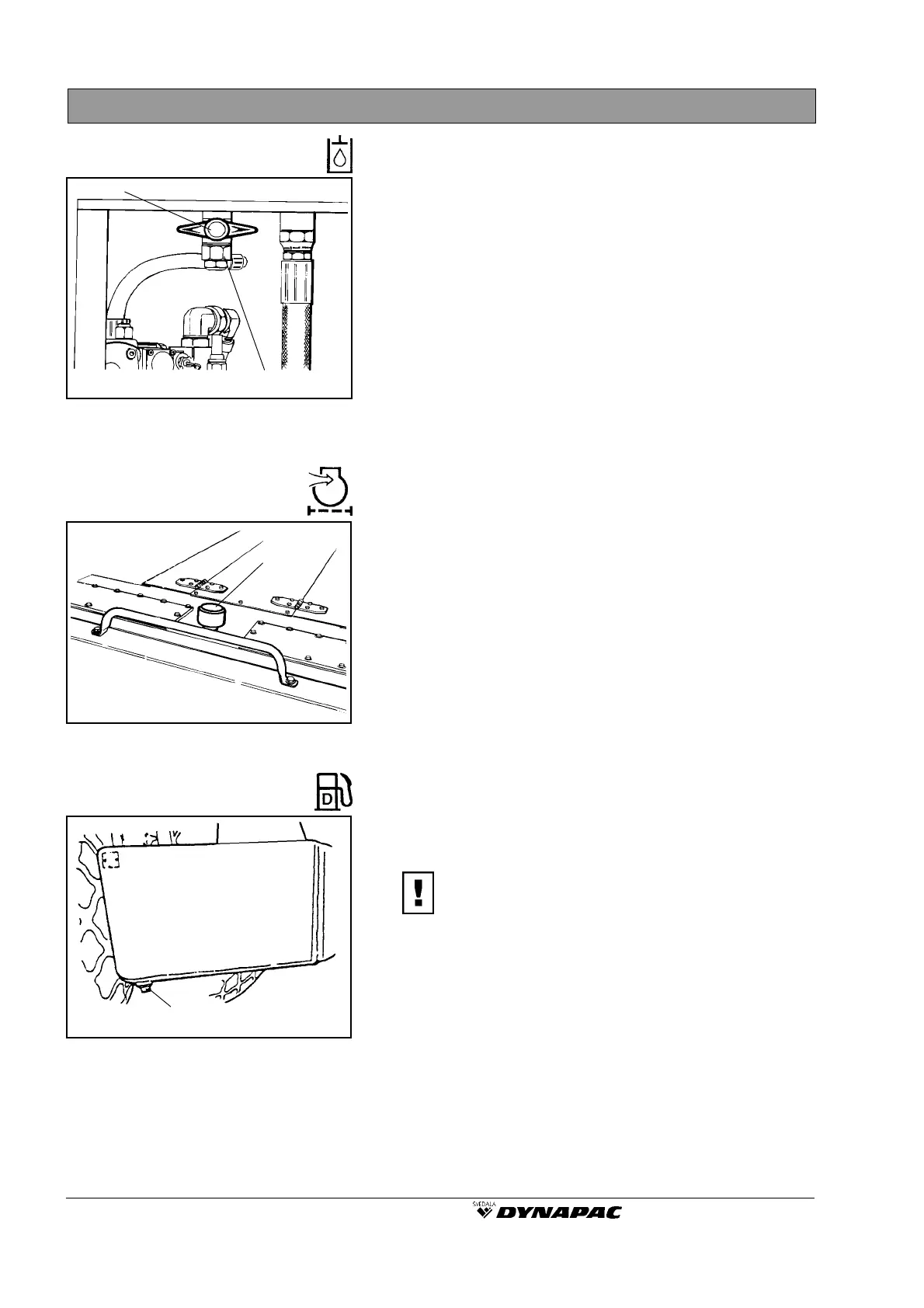

EVERY 1000 HOURS OF OPERATION (Every six months)
Fuel tank - draining
Hydraulic reservoir - Draining
Fig. 39 Hydraulic reservoir, underneath
1. Drain cock
2. Plug
2
1
1
Fig. 40 Hydraulic reservoir
1. Venting filter
Fig. 41 Fuel tank
1. Drain plug
Screw off the venting filter (1), discard it and fit a new
one.
Drain condensed water from the hydraulic reservoir via
the drain plug (1). Drain after the roller has stood still
for a long period, eg, overnight.
Drain as follows:
1. Hold a can underneath the cock.
2. Remove the plug (2).
3. Open the cock and allow any water to run out.
4. Close the drain cock.
5. Refit the plug.
Hydraulic reservoir
- Venting filter
CAUTION
1
