10 CC 222/222C - CC 232/232C - CC 322 M222EN5
4
3
2
1

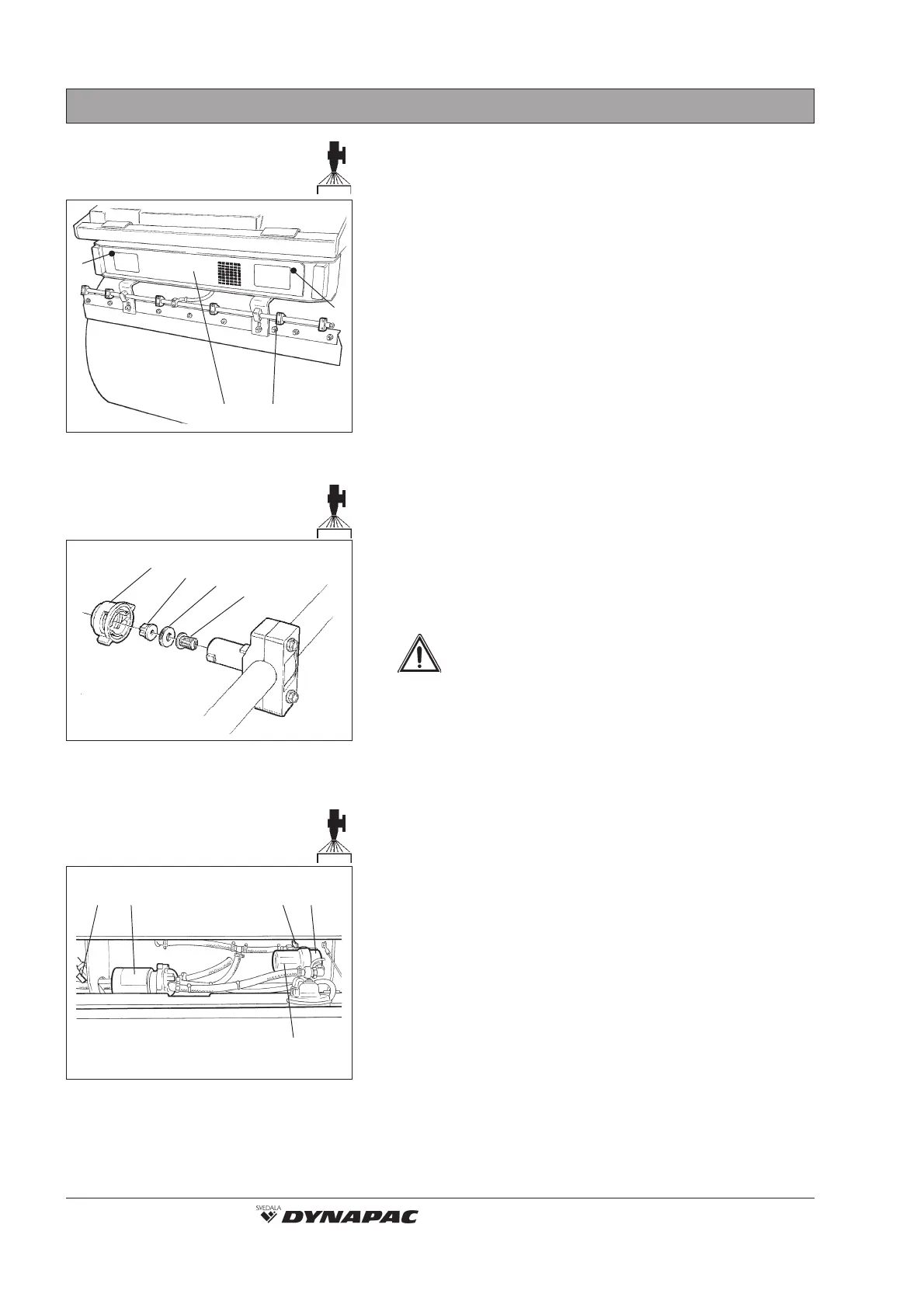

Fig. 7 Pump system
1. Coarse filter
2. Stop cock
3. Filter housing
4. Water pump
5. Drain cock
Sprinkler system/Drum
Checking - Cleaning
Fig. 6 Nozzle
1. Sleeve
2. Nozzle
3. Seal
4. Fine filter
Dismantle the clogged nozzle by hand. Blow the nozzle
(2) and fine filter (4) clean with compressed air, or
install replacement parts and clean the clogged parts at
a later opportunity.
Wear protective goggles when working
with compressed air.
EVERY 10 HOURS OF OPERATION (Daily)
21
3
3
Fig. 5 Rear drum
1. Nozzle
2. Pump system/cover
3. Quick-screws
Start the sprinkler system and make sure that no
nozzle (1) is clogged. If necessary, clean clogged
nozzles and the coarse filter located adjacent to the
water pump (2); see figures below.
A pump system is located underneath each water tank
behind the cover (2), which is opened by turning the
quick-screws (3) a 1/4 turn counter-clockwise. To lock
the cover, place the screws with the slot vertical and
push straight in.
3
When cleaning the coarse filter (1), close the stop cock
(2) and loosen the filter housing (3).
Clean the filter and filter housing, make sure that the
rubber gasket in the filter housing is intact.
After inspection and any necessary cleaning, start the
system and check that it works.
A drain cock (5) is located in the left part of the pump
system area. This facilitates draining both the tank and
the pump system.
54 21
WARNING
