Fuses in the engine compartment are located together
with the battery disconnector.
The machine is equipped with a 12 V electrical system
and an alternator.
Connect the battery to the correct polarity
(– to ground). The cable between battery
and alternator must not be disconnected
when the engine is running.
ELECTRICAL SYSTEM, FUSES
The electrical regulating system and control system are
protected by 24 fuses, located in the instrument panel
and in the engine compartment.
The four fuse boxes (1) are located behind the lower
instrument plate, which is opened by turning the four
quick-screws (2) a 1/4 turn counter-clockwise.

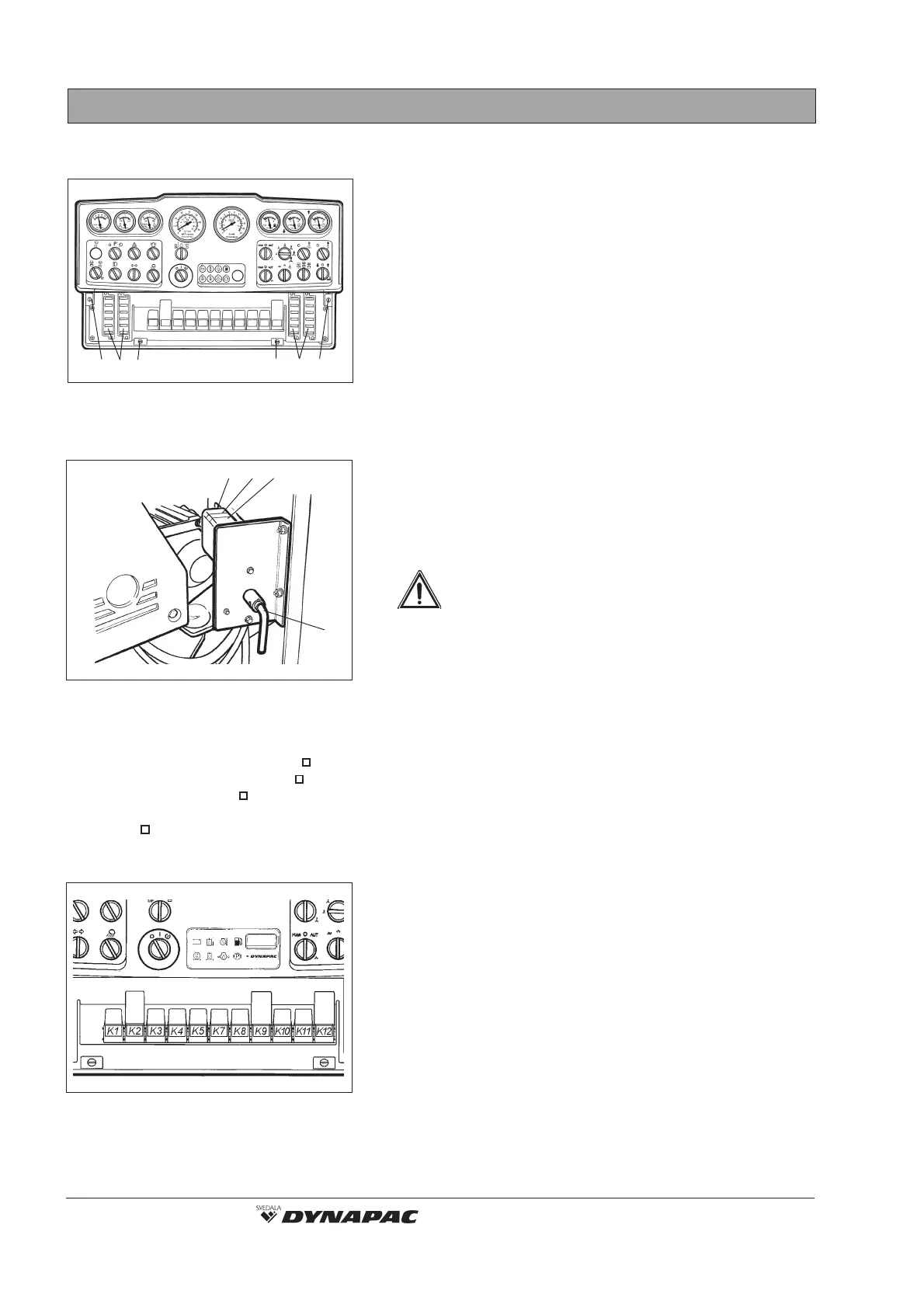

Fig. 51 Instrument panel
1. Fuse boxes
2. Quick-screws
2 1 2
Fuses
2 1 2
1
234
Fig. 52 Battery space
1. Battery disconnector
30A 2. Main fuse,
Motor/Instrument panel
40A 3. Main fuse, Working lights
50A 3. Main fuse, Driving lights
70A 4. Main fuse, Cab
= Optional equipment
WARNING
Relays
Fig. 53 Instrument panel
K1 Lights relay
K2 Direction indicator relay
K3 Brakes relay
K4 Reverse alarm relay
K5 Fuel level relay
K7 Horn relay
K8 Sprinkler
K9 Main relay
K10 AVC
K11 Neutral switch
K12 VBS relay
