20 CC 222/222C - CC 232/232C - CC 322 M222EN5
EVERY 500 HOURS OF OPERATION (Every three months)

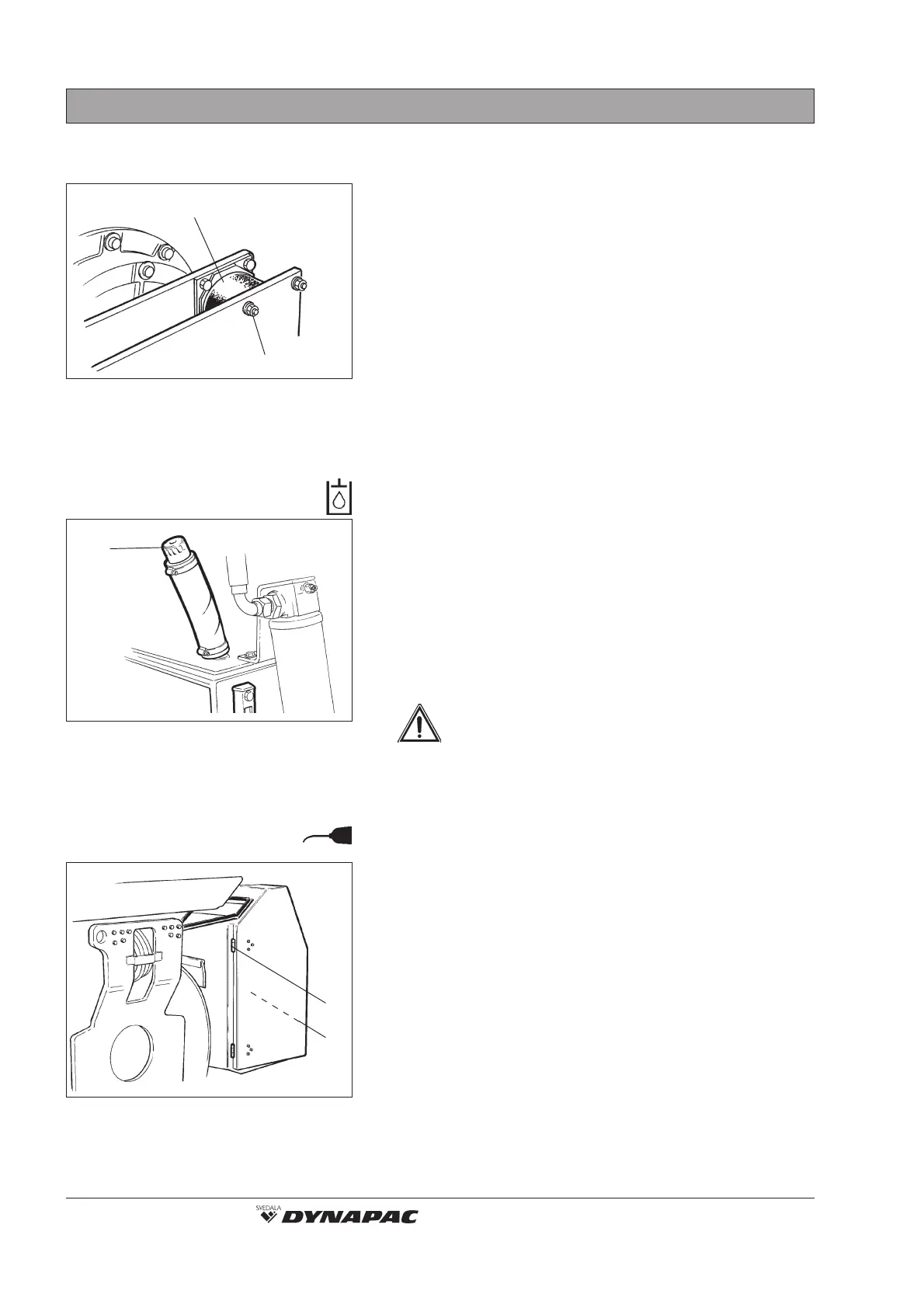

Fig. 33 Engine compartment, right side
1. Tank cap
Hydraulic reservoir cap -
Check
Hinges, controls -
Lubrication
1
1
2
Open the right door of the engine compartment.
Unscrew and make sure that the reservoir cap is not
clogged, air must have unobstructed passage through
the cap in both directions.
If clogged in either direction, clean with a little diesel oil
and blow with compressed air until free passage is
assured or replace the cap with a new one.
Wear protective goggles when working
with compressed air.
Fig. 34 Engine compartment
1. Hinges
2. Control cables
Lubricate both hinges (1) on the engine compartment
doors until grease penetrates.
Lubricate the cab door hinges in the same way.
Lubricate the hinges on the front and rear lamp covers
with a few drops of oil.
Lubricate the forward/reverse control cables adjacent
to the control arm of the hydraulic pump. Apply a few
drops of oil to the control sleeve opening.
Check all rubber elements (1), replace all of the ele-
ments if more than 25% of them on one side of the
drum are cracked deeper than 10-15 mm (0.4-0.6 in).
Use the blade of a knife or pointed object to assist
when checking.
Make sure that the fastening screws (2) are tightened.
Fig. 32 Drum, vibration side
1. Rubber element
2. Fastening screws
Rubber elements and
fastening screws - Check
WARNING
1
2
