Tire pressure adjustment (option)
The operator can vary the pressure during the operation with
the tire air pressure control. It can be variable adjusted with the
keys (2) and (3) on the keypad, within the interval from 240 kPa
to 830 kPa (35 to 120 PSI) and can be reduced with the key (3).
The tire pressure level is shown in the lower left corner, on the
Display (1).
When the tire pressure is at the maximum level (830
kPa) or at the minimum level (240 kPa), it will not be
possible to increase/decrease the pressure.
Scrapers adjustment
There are two models of scrapers, with and without cocoa mat.
The adjustment of the scrapers on the wheels is done by the
handle ( 1 ) of the support of the scrapers.
There are two positions : of work and rest .
Adjust the snap rings ( 2 ) of the scrapers to control the pressure
applied to the wheels.

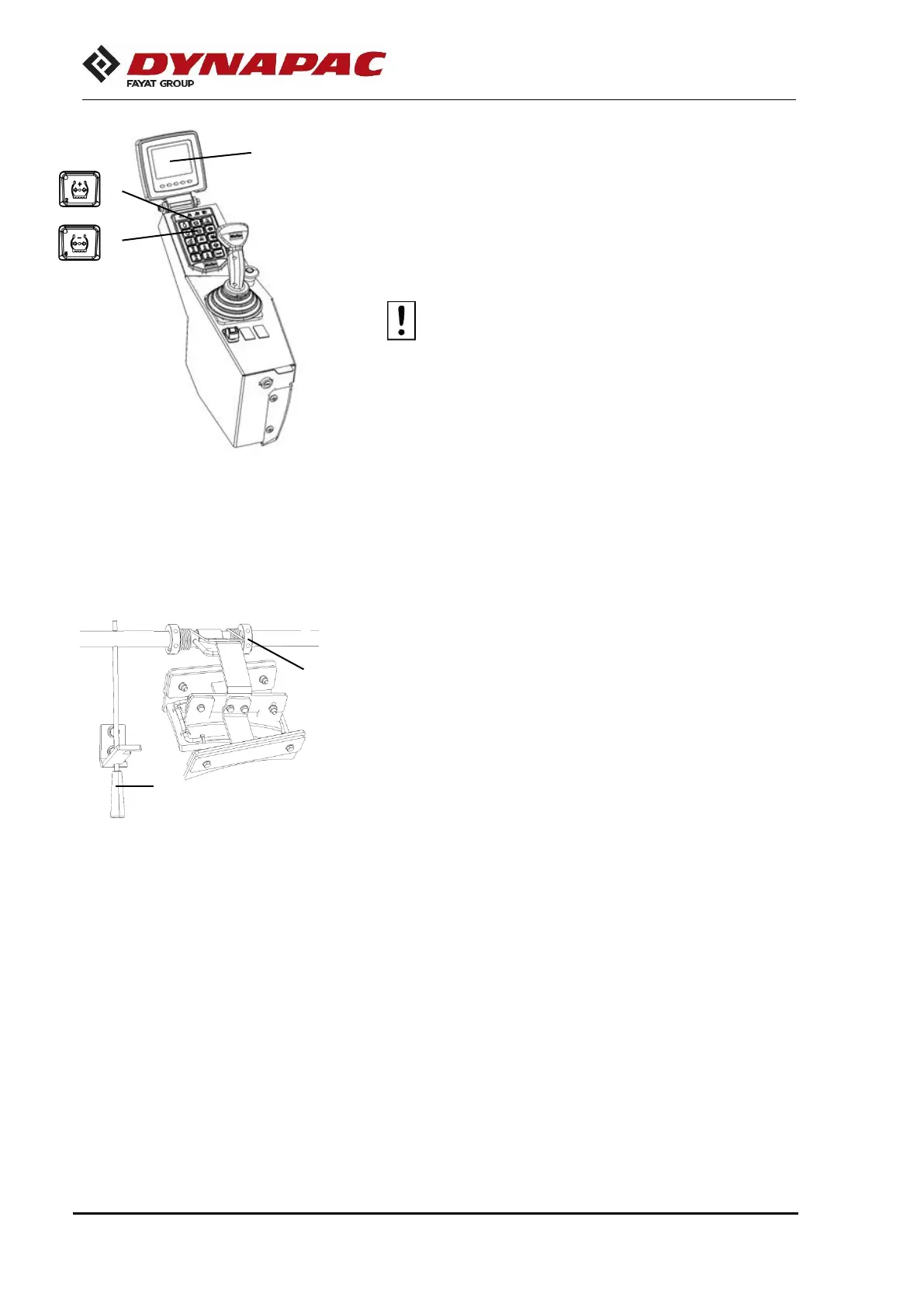

Fig.– Side panel
1. Display
2. Increase in the tire pressure
3. Decrease in the tire pressure
Fig. – Scrapers adjustment
1. Handle
2. Snap ring
